Separation-pre-milling-3D laser-six-wheel pressing-two-color PUR-six-wheel pressing-six-wheel pressing-fast double-track end-rough trimming 1-fine trimming 2-fine trimming 3-four-knife high-speed tracking-scraping 1-scraping 2-cleaning-flexible flat scraping-polishing 1-polishing 2.
Separation-pre-milling-3D laser-six-wheel pressing-two-color PUR-six-wheel pressing-six-wheel pressing-fast double-track end-rough trimming 1-fine trimming 2-fine trimming 3-four-knife high-speed tracking-scraping 1-scraping 2-cleaning-flexible flat scraping-polishing 1-polishing 2

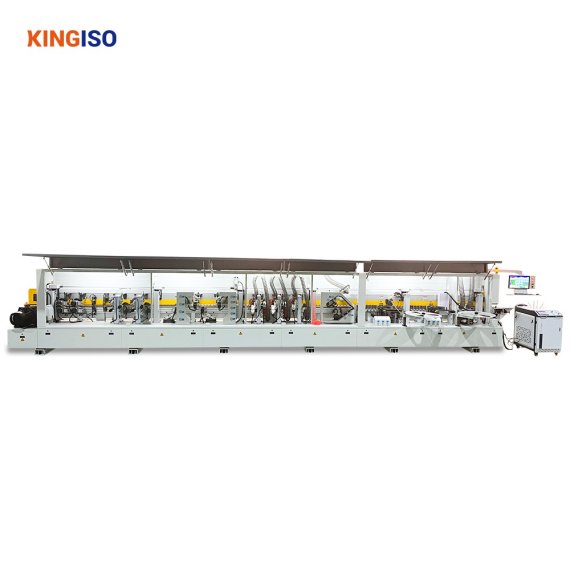

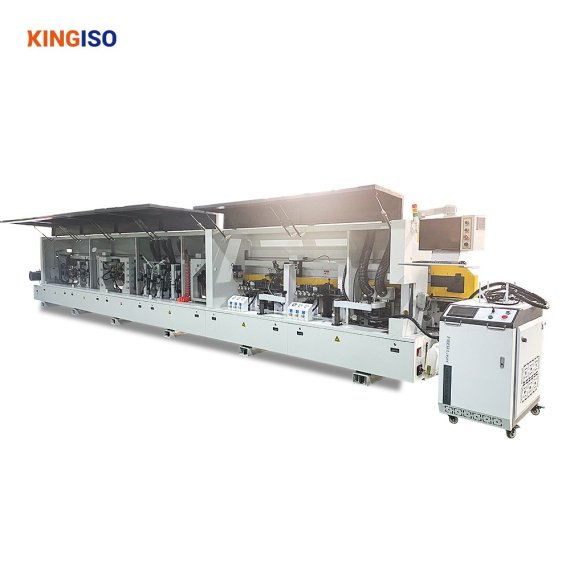

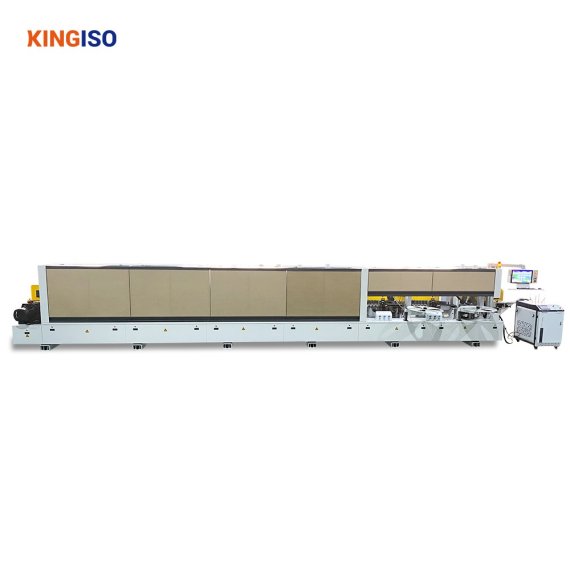

K6 automatic laser high-speed edge banding machine.Originated from Germanys top laser technology, mastering the core technology of laser welding machine, this model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, 3D laser glue coating, making the edge banding more beautiful and delicate.
| Model | K6 |
| Edge thickness | 0.4-3mm |
| Panel thickness | 9-60mm |
| Panel length | 50mm(without pre-milling;100mm(with pre-milling) |
| Panel width | ≥60mm |
| Working pressure | 0.7Mpa |
| Feeding speed | 26-28-32m/min |
| Total power | 35.5KW |
| Overall dimensions | 11000*1100*1750mm |

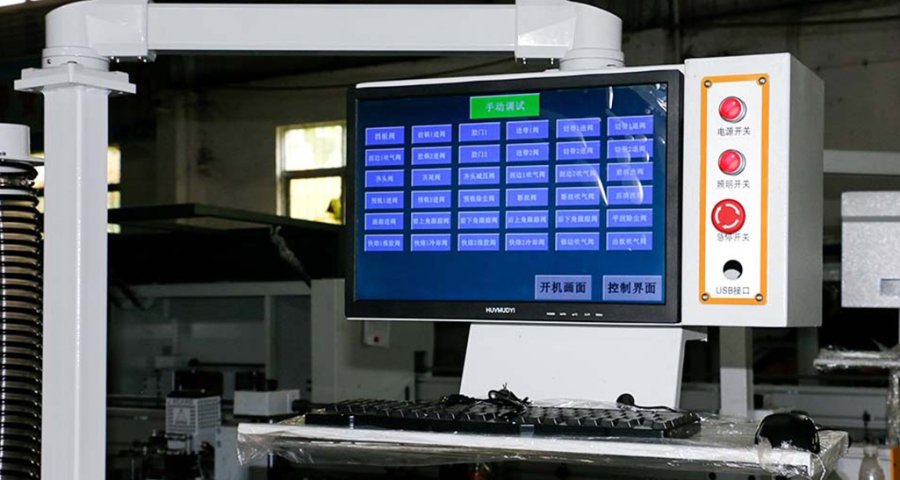

PLC control
The human-computer interaction is simpler,the interface is clearer, and simple and easy screen operation understand.

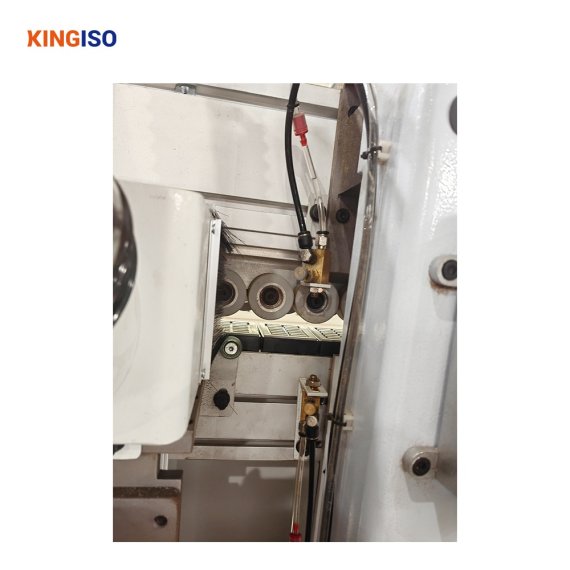

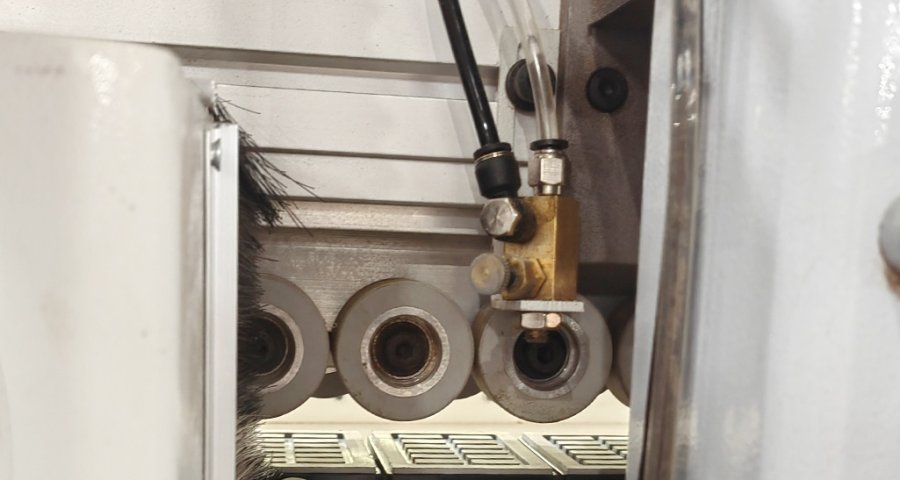

Separating agent spraying device
Spray the separating agent on the plate that needs to be pre-milled to form an isolation layer on the upper and lower surfaces of the plate.

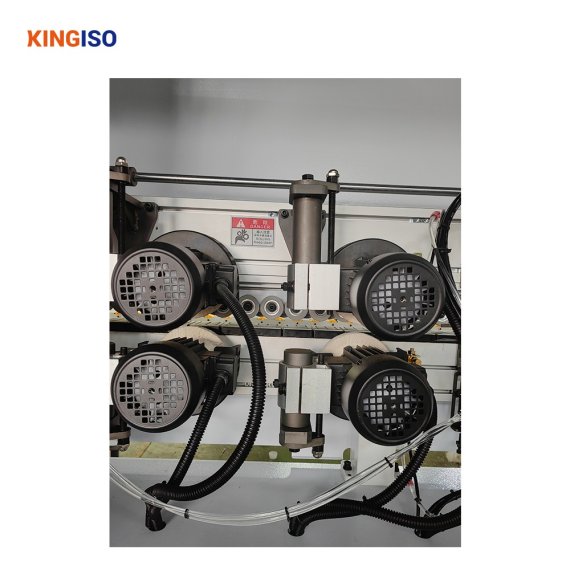

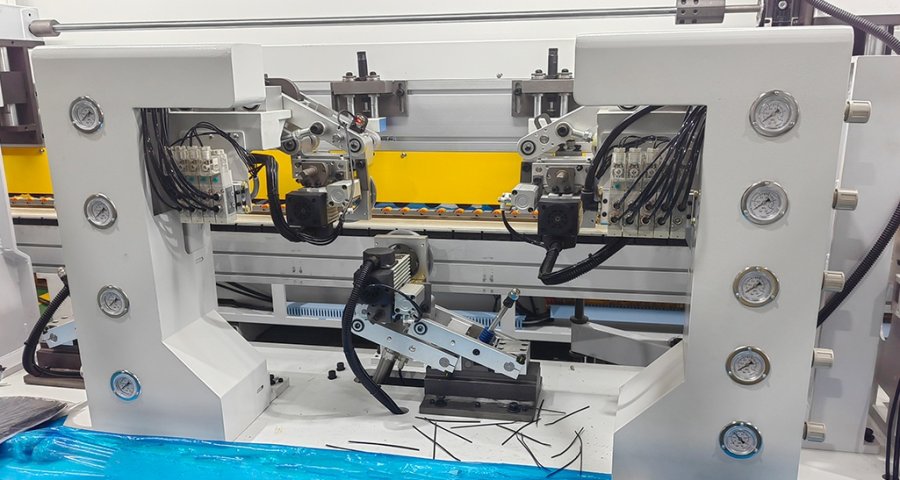

Four-head tracking
The four corners of the edge-sealed board are chamfered and rounded to make the four corners more refined and smooth after edge sealing.

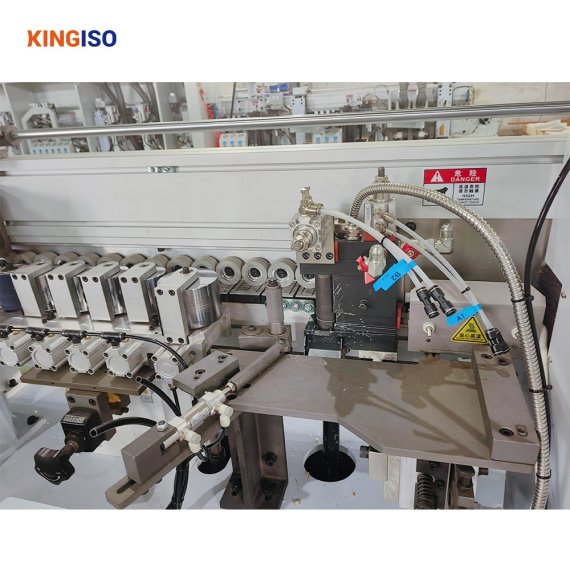

Laser control
lndependent control laser control, simple and convenient, easy to operate.

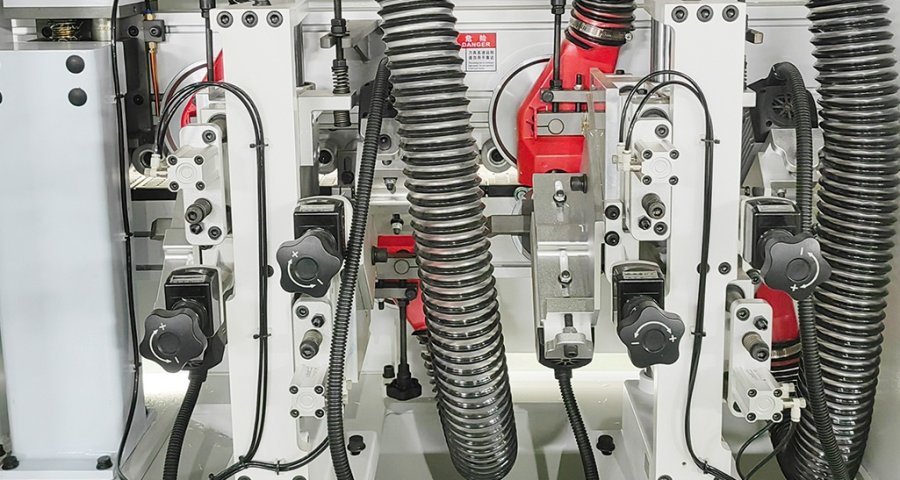

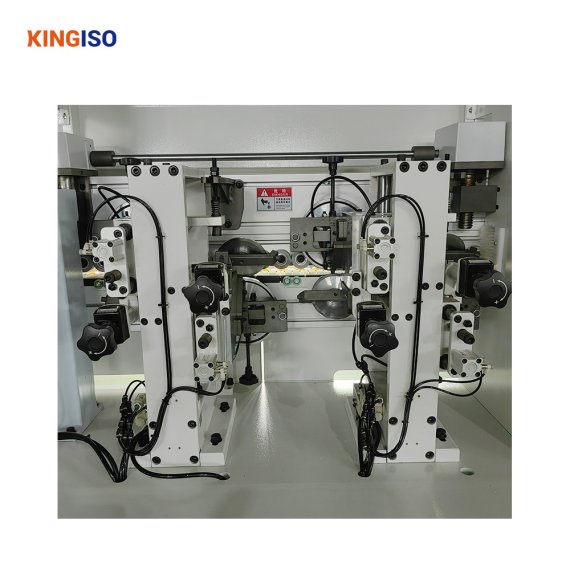

Trimming
After rough trimming and fine trimming, cut the excess edge bands on the upper and lower sides of the board to make it parallel to the height ofthe board , so that the edge banding effect ismore refined.

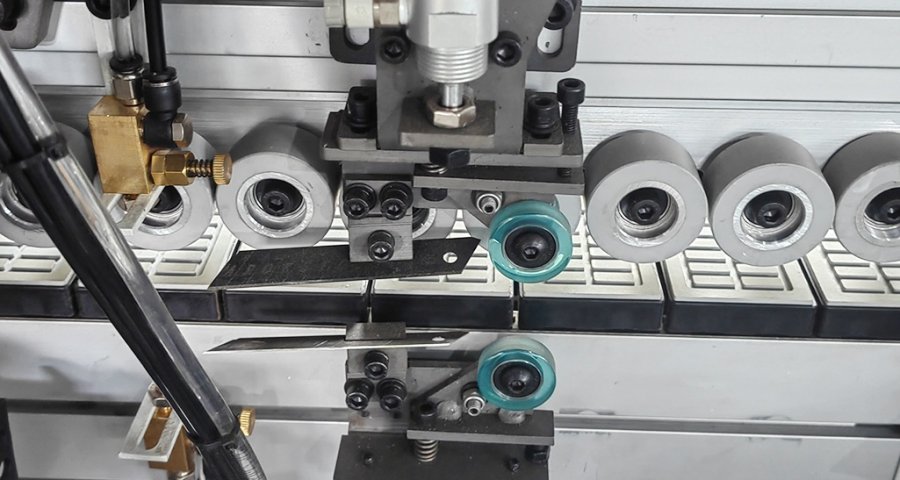

Flexible edge scraping
Flexible edge scraping, scraping off excess glue and trimming the edge band for the finished workpiece to make the edge banding effect more refined.

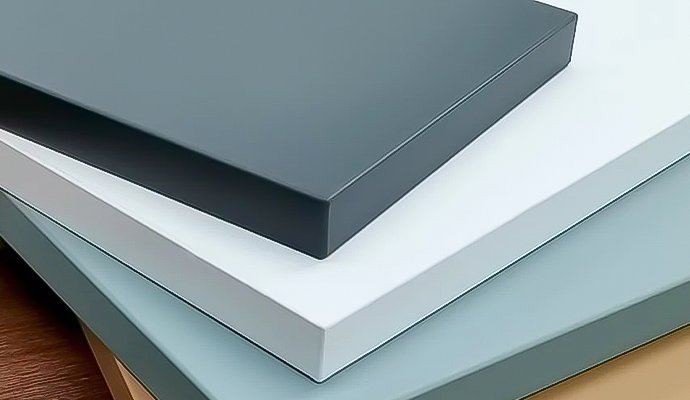

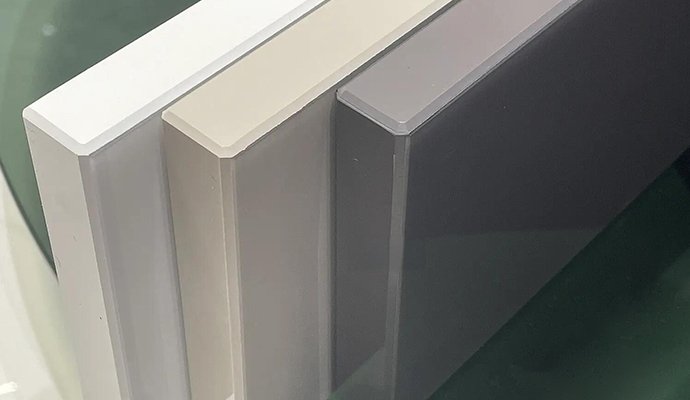

Automatic edge banding machine is applicable to edge banding and trimming of MDF, blockboard, solid wood board,particle board, polymer door board, plywood, etc. The edge banding is exquisite, smooth, good feel, and the sealing line is straight and smooth.
