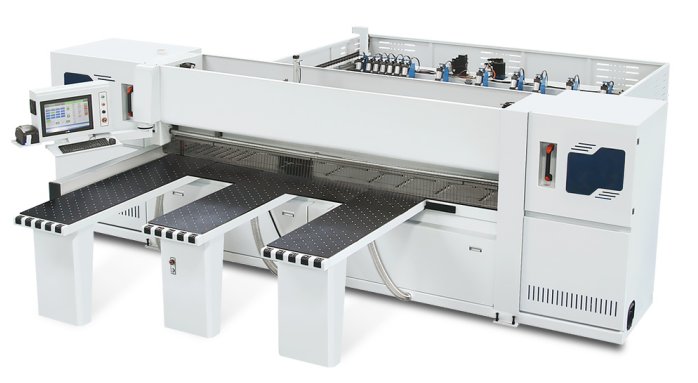

Computer Panel Beam Saw

Computer Panel Beam Saw is crafted for skilled carpenters and construction workers who need accuracy in cuts and tools instead of merely cutting down large boards or other lumber.

Equipment operation process:

The operator puts the raw materials to be processed on the work surface of the computer panel saw or the loading device to load the materials--press the button to instruct the clamp to clamp the sheet--start automatic operation--enter automatic operation--automatic positioning--automatic edge trimming--automatic sawing--automatic material discharge--automatically complete all cutting according to the input data.

1. Machine structure

Tabletop: The tabletop is welded with 25mm steel plate and square tube. Machine body: Welded with square tube reinforcement, annealed at zero critical temperature.

2. Electrical appliances: Delta PLC programming controller/touch screen; imported Schneider contactor, Huichuan servo motor, inverter; Yiri pneumatic components, which extend the service life of the machine.

3. Safety structure: Taiwan imported aluminum bar anti-pressure hand device is used to ensure personnel safety.

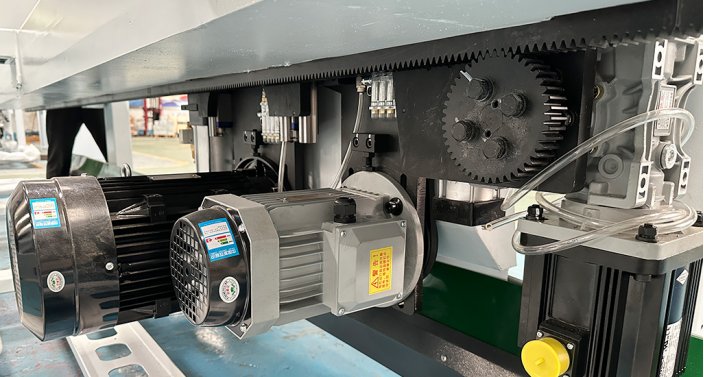

4. Transmission structure: Positioning guide rail and saw blade lifting guide rail device: Taiwan Yinchuang Technology, square steel belt linear precision guide rail.

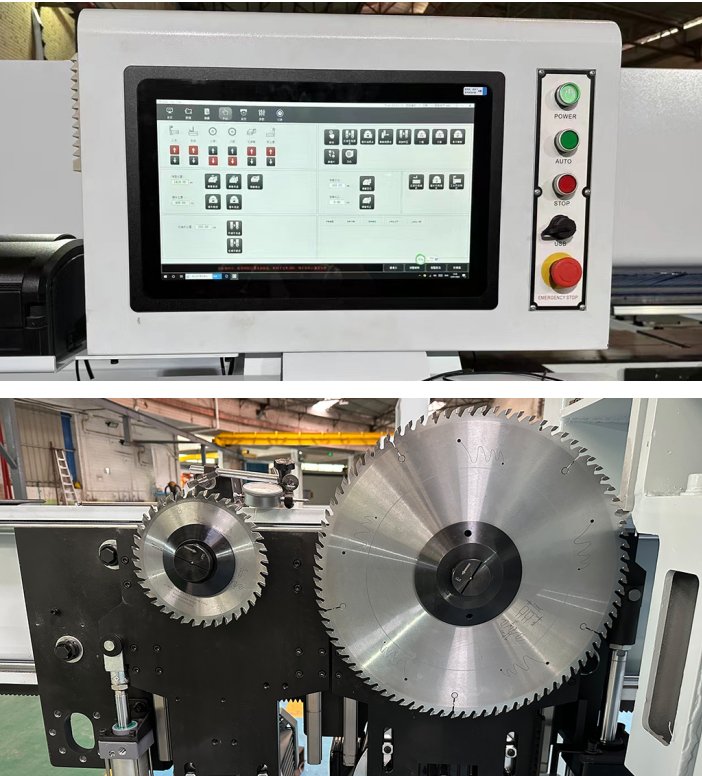

5. Control structure: 19-inch touch/button integrated computer screen, the box can be rotated 180º, suitable for operation at different angles, easy to use.
