High-Precision CNC-Controlled Automatic Sliding Table Panel Saw Launches for Optimized Cutting Efficiency

This machine combines an intelligent CNC control system with a heavy-duty sliding table and precision scoring unit, delivering industrial-grade cutting quality for both batch and custom production environments.

## Key Features of the CNC Sliding Table Panel Saw

### 1. Integrated CNC Control System

The machine is equipped with a dedicated **CNC controller** featuring:

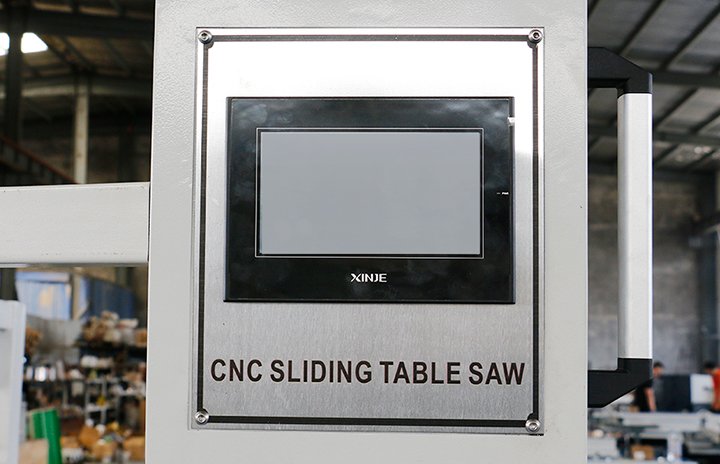

- **User-friendly interface:** 7–10 inch industrial touchscreen with graphical programming

- **Cut optimization software:** Automatic calculation of cutting patterns to minimize material waste

- **Manual pulse generator (MPG):** Fine positioning capability for precise setup

- **Diagnostic system:** Real-time fault indication and maintenance reminders

### 2. Heavy-Duty Precision Sliding Table

- **Table construction:** Precision-ground cast iron or extruded aluminum with wear-resistant coating

- **Slide bearings:** Linear recirculating ball bearings running on hardened steel guideways

### 3. Automatic Panel Handling Features

- **Main carriage pusher:** Servo-controlled with programmable positioning stops

- **Side alignment device:** Pneumatic pop-up rollers for panel squaring

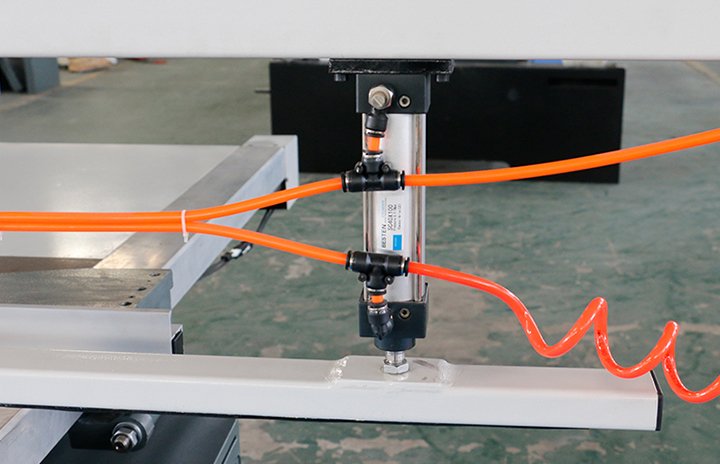

- **Hydraulic panel hold-down:** Overhead clamps secure material during cutting

### 4. Advanced Safety Systems

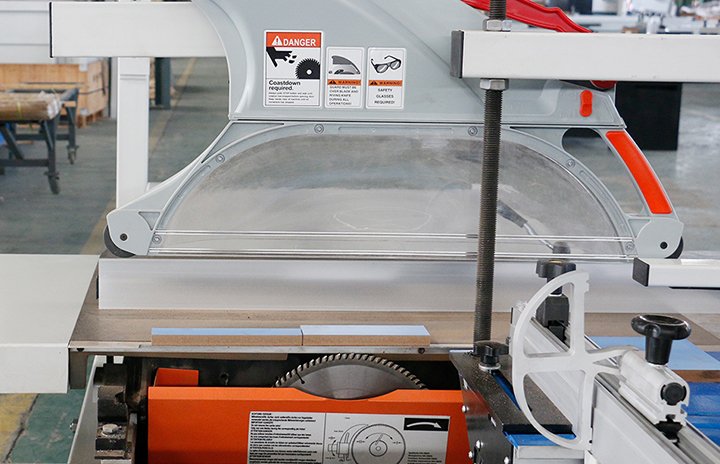

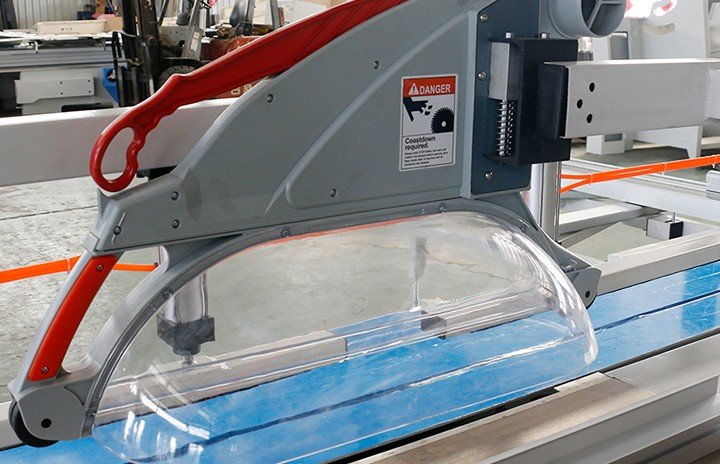

- **Blade guard:** Transparent polycarbonate enclosure with interlock switches

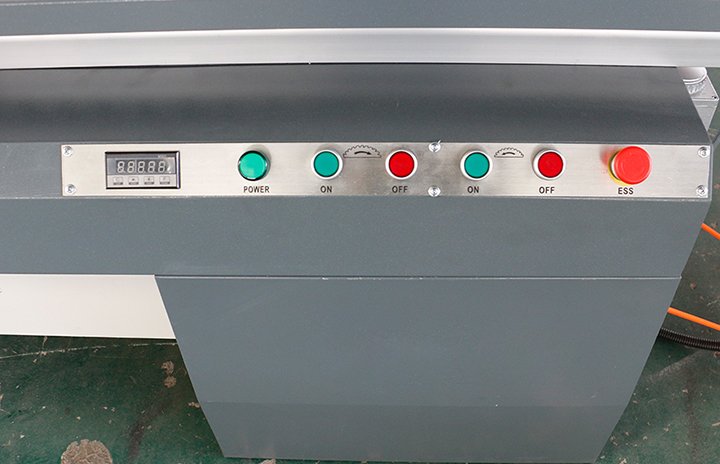

- **Emergency stops:** Multiple position switches on both sides of the machine

- **No-volt release:** Prevents automatic restart after power interruption

Recommended daily maintenance:

Clean sliding table guideways

Check saw blade condition (replace when worn)

Verify scoring blade alignment

Inspect dust extraction hose for blockages

Check emergency stop function
