Newly upgraded appearance - Vertical panel saw

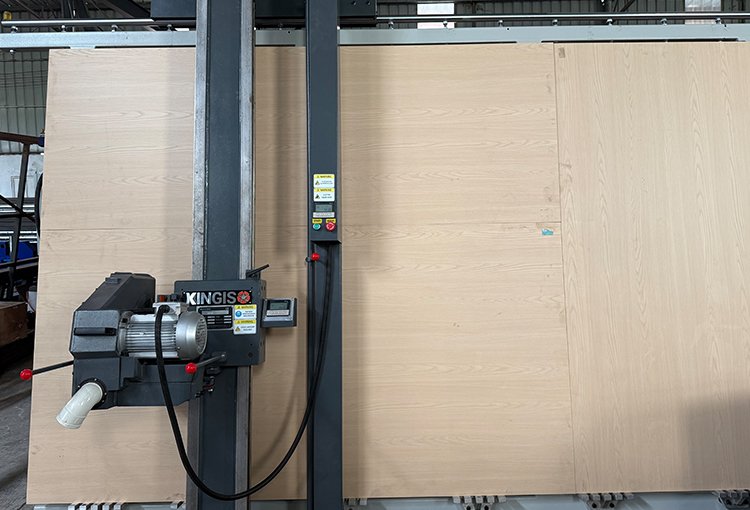

A manual vertical panel saw is a stationary woodworking machine designed to cut large-format sheets—such as plywood, MDF, particleboard, and melamine—into smaller, manageable pieces. Unlike horizontal saws that require floor space for the material to lie flat, vertical panel saws lean the workpiece against a sturdy, wall-mounted frame. The saw unit is manually moved along precision-ground guide rails to execute straight cuts at any height.

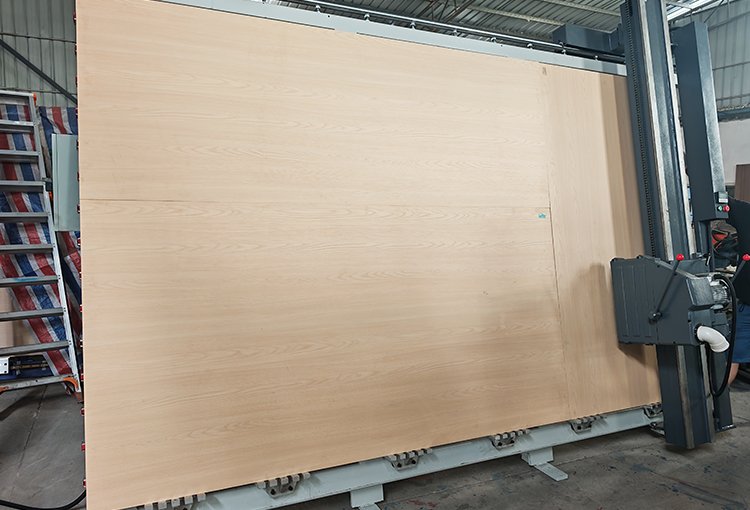

Vertical Frame with Material Support: A robust steel structure with rollers or brushes that allows the panel to

slide smoothly into position.

Scoring and Main Saw Unit: Most professional models feature two blades. The smaller scoring blade pre-cuts the laminate surface to prevent

chipping, while the main saw performs the full-depth cut.

Manual Pull-Cord or Lever System: The operator controls the saw’s descent and ascent by pulling a handle or

cord, offering complete tactile control over cutting speed.

Tilting Ripping Fence: An adjustable fence enables angled cuts up to 45 degrees, essential for beveled edges

and specialized joinery.

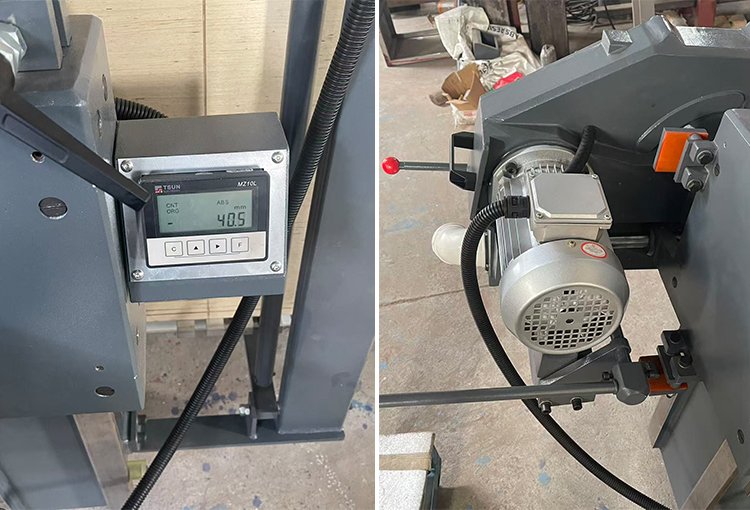

Measuring Scale with Stopper: Integrated tape measures and flip-stops allow repetitive cutting of multiple panels to the exact same dimension.

✅ Exceptional Space Saving

Because the material is processed vertically rather than horizontally, a manual vertical panel saw occupies less

than half the floor space of a traditional sliding table saw. For workshops where every square meter counts, this

is a game-changer.

✅ One-Person Operation

Large full-size panels can be heavy and awkward. The vertical orientation uses gravity to keep the sheet against

the frame, eliminating the need for a second person to support the workpiece. One operator can safely load, cut,

and unload without assistance.

✅ Chip-Free Cutting

The combination of a scoring saw and a main blade ensures clean edges on double-sided laminated materials.

This reduces post-processing sanding and edge-banding preparation.

✅ Lower Investment & Maintenance

Compared to fully automatic beam saws or CNC routers, manual vertical panel saws have a much lower upfront

cost. With fewer electronic components, they are easier to maintain and repair, making them ideal for smaller

businesses.
