1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.It uses high quality oil envelop so as to avoid of oil leaking.
1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.It uses high quality oil envelop so as to avoid of oil leaking.
| 2500*1300 Mesa | 120T Single layer |
| Model | AY214×8/12(1)HRC-B1 |
| Nominal total pressure | 1200kn |
| Number of hot plates | 2 pieces 2500*1300*42mm |
| Unit surface pressure | 3.69KGF/cm² |
| Number and diameter of cylinders | 8 pieces*85mm |
| Closing speed | 30mm/s |
| Heating method and medium | Electric heating thermal oil |
| Press plate opening method | Electric |
| Number of working layers | 1 layer |
| Hot plate spacing | 100mm |
| Rated oil pressure | 25MPA |
| Cylinder stroke | 150mm |
| Installed power | Hydraulic power 3kw / Heating 24kw / Thermal oil pump 1.5kw |
| Maximum temperature | 150 |
| Dimensions | 3800*1600*1800mm |
| Weight approx. | 5500kg |
| 3000*1300 Mesa | 120T Single layer |
| Model | AY214×8/12(1)HRC-B1 |
| Nominal total pressure | 1200kn |
| Number of hot plates | 2 pieces 3000*1300*42mm |
| Unit surface pressure | 3.07KGF/cm² |
| Number and diameter of cylinders | 8 pieces*85mm |
| Closing speed | 30mm/s |
| Heating method and medium | Electric heating thermal oil |
| Press plate opening method | Electric |
| Number of working layers | 1 layer |
| Hot plate spacing | 100mm |
| Rated oil pressure | 25MPA |
| Cylinder stroke | 150mm |
| Installed power | Hydraulic power 3kw / Heating 27kw / Thermal oil pump 1.5kw |
| Maximum temperature | 180 |
| Dimensions | 4500*1600*1850mm |
| Weight approx. | 6100kg |
PLC control system
Control system, easily adjust the machine up and down, operation more convenient.

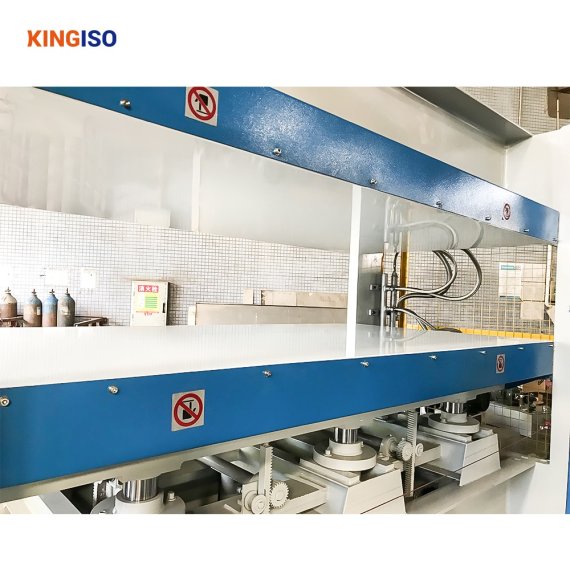

Hot platen
Hot platen , intelligent operating, fitting machine, can reach the desired hot pressing effect.

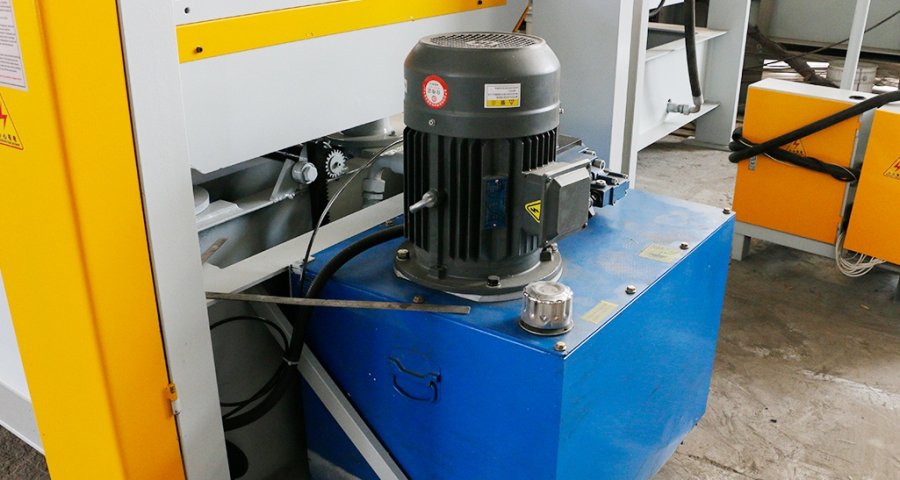

Hydraulic pump
Hydraulic pump, reduce noise, low energy consumption, high speed.
Brand accessories
Well-known electronic components can be usedfor a long time.
Machine body
It is manufactured on special worktable,so as to keep the hot platen easy to operate.

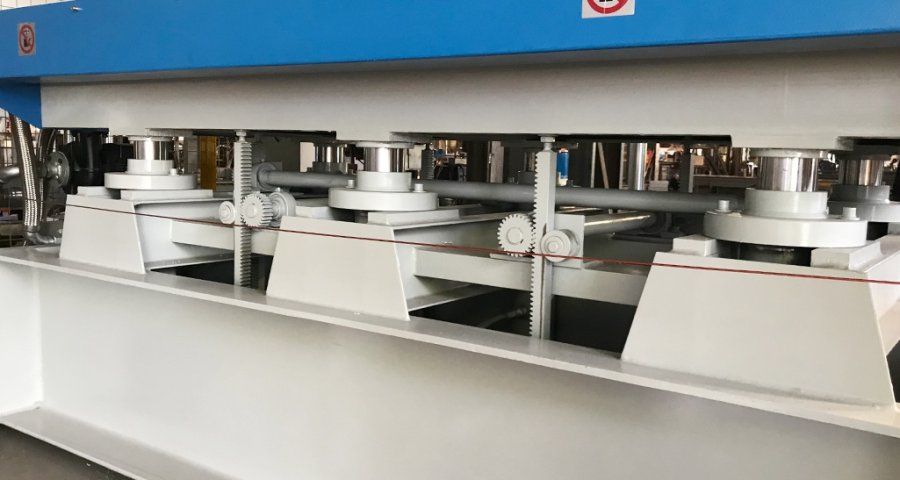

Cylinder
It is worked through excellent CNC precision machine tool.

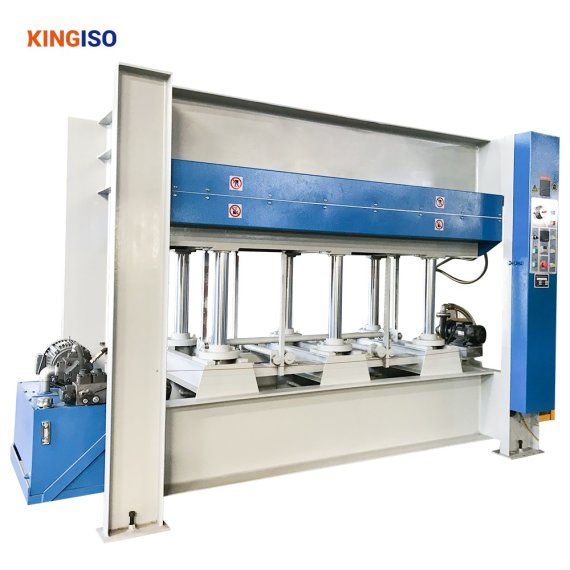

Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
