Hydraulic Cold Press Machine Hydraulic Cold Press For Wooden door Wood Furniture Cold Press Machine For Plywood.
Hydraulic Cold Press Machine Hydraulic Cold Press For Wooden door Wood Furniture Cold Press Machine For Plywood.
Hydraulic Cold Press Machine Hydraulic Cold Press For Wooden door Wood Furniture Cold Press Machine For Plywood.
| Model | MH3248*80 | ||||||||||||||||||||||||||||
| Max.pressure | 800kn | ||||||||||||||||||||||||||||
| Platen size | 2500*1250mm | ||||||||||||||||||||||||||||
| Unit surface pressure | 246kgf/cm² | ||||||||||||||||||||||||||||
| The number and diameter of the main oilcylinder | 4 pieces/125mm | ||||||||||||||||||||||||||||
| Hydraulic power | 5.5kw | ||||||||||||||||||||||||||||
| Closing speed | 12mm/s | ||||||||||||||||||||||||||||
| spacing | 1000mm | ||||||||||||||||||||||||||||
| Rated ilpressure | 16Mpa | ||||||||||||||||||||||||||||
| Dimensions | 3000*1300*2250mm | ||||||||||||||||||||||||||||
| Weight | 2300kg | ||||||||||||||||||||||||||||

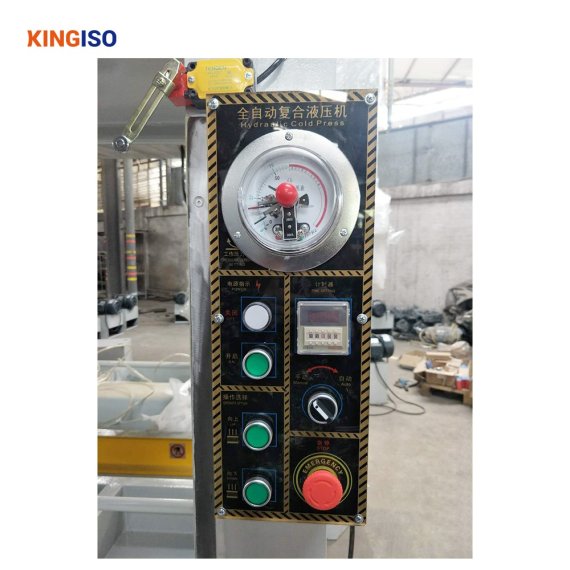

PLC control
Easy and convenient control panel easy for operation,emergency stop button makes sure the safety of user.

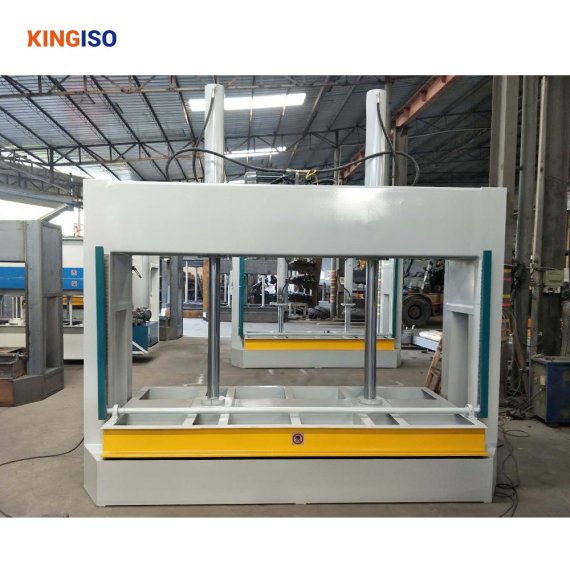

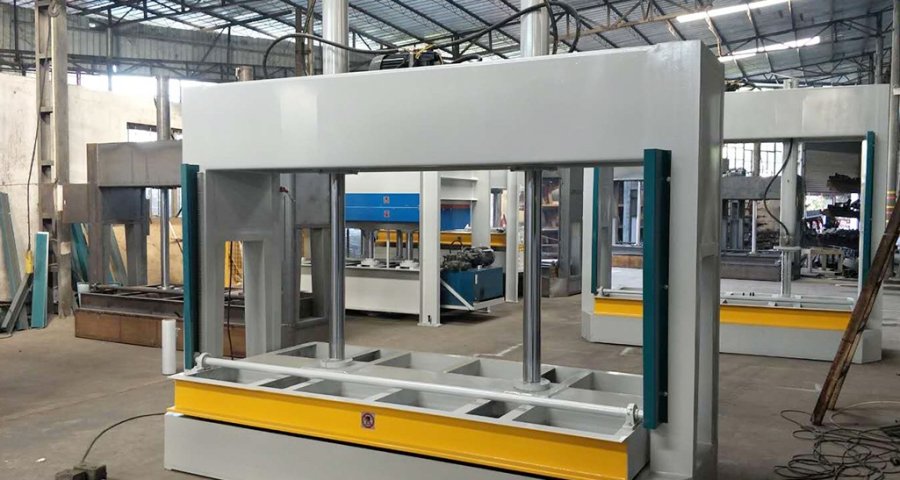

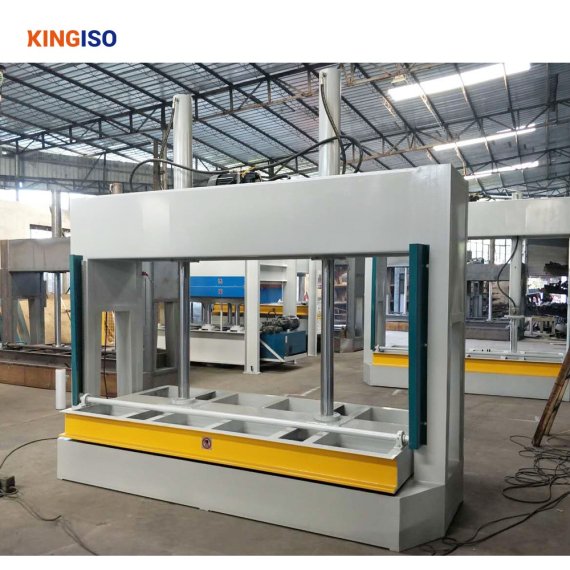

Machine body
Thick steel sheet and tough machine body stable and durable.
Oil cylinder
The machine adopts integrated oil cylinder achieve good pressure holding effect.

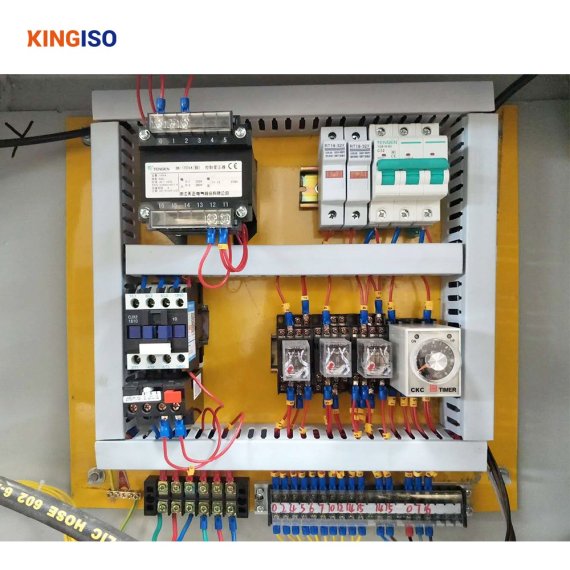

Electric control box
lndependent electric control box, clean and tidy, safe and durable.

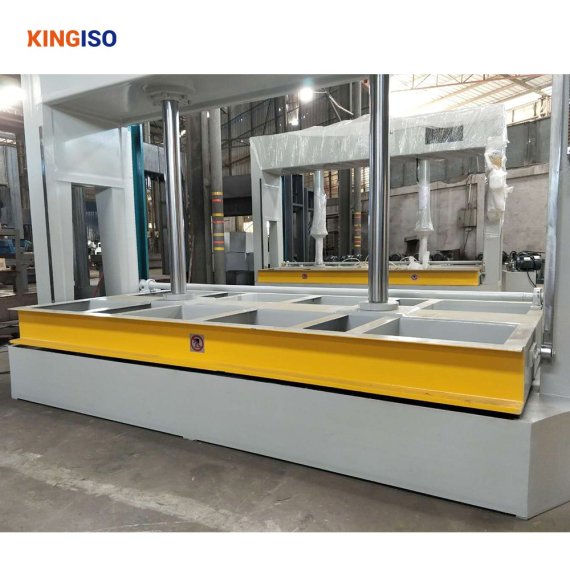

Working face
The stress and bottom of the working face of the lower table are supported by channel steel welding.

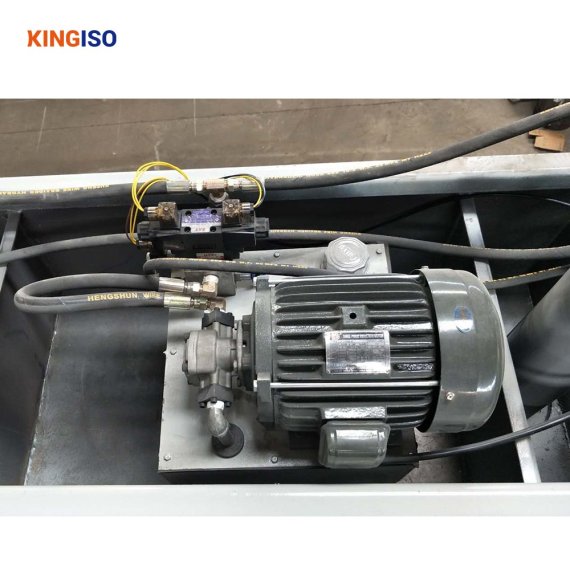

Motor
The best motor brand, lasting power longer warranty period.
This machine is suitable for tracking the bonding and pre-forming of flat wood products. it has good pressing quality, high speed and high eficiency. lt is widely used in furniture manufacturing and sheet metal production industry.
Tell us about your project so we can help you find the solution that fts your needs!
