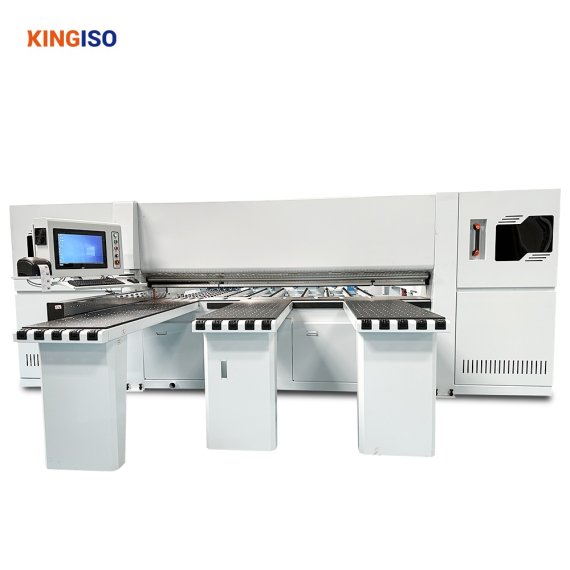

NP280HG Computer Panel Saw

(sales of over 2000+)

1. Select high-quality steel, use high-density process welding technology and annealing treatment to effectively ensure the stability and service life of the main body.

2. The human-machine interface is simple and friendly, and the operation is convenient and reliable. The required sawing scheme can be edited and sawing can be simulated. Seamless docking optimization software and printer.

3. The ball-type air-floating workbench is used to solve easy feeding.

4. Pneumatic mechanical clamps are positioned by precision servo drive.

5. Precision linear guide rails, low noise design, high precision, smooth and durable operation.

6. Large and small saws can be lifted and lowered independently.

PRODUCT DETAILS PRODUCT REVIEWS ONLINE MESSAGE RELATED PRODUCTS

Product Details

Product Description/Advantages

1. Select high-quality steel, use high-density process welding technology and annealing treatment to effectively ensure the stability and service life of the main body.

2. The human-machine interface is simple and friendly, and the operation is convenient and reliable. The required sawing scheme can be edited and sawing can be simulated. Seamless docking optimization software and printer.

3. The ball-type air-floating workbench is used to solve easy feeding.

4. Pneumatic mechanical clamps are positioned by precision servo drive.

5. Precision linear guide rails, low noise design, high precision, smooth and durable operation.

6. Large and small saws can be lifted and lowered independently.

Parameter

ModelNP280HG
Main saw power16.5KW
Portal motor power2.2KW
Maximum saw length2800mm
Maximum saw thickness100mm
Maximum sawing width2800mm
Trusted minimum plate size5mm
The smallest plate size40mm
Positioning methodautomatic
Servo positioning accuracy0.02mm
Saw cutting accuracy± 0.1mm
Main saw tablet outer diameter360mm-400mm
Main Simal diameter80mm
Main saw speed4800r/min
Traction motor power (graphics transmission)1.8KW
Robot servo motor1.8KW
Electric motor0.55KW
Cutting speed0-100 meters/minute
Return speed120 meters/minute
High pressure fan4KW 2.2KW (two)
Air pressure0.6-0.8MPa
Qi -floating platform specification1750*540mm
Machine tool shape size5160x5500x1900mm
Total power29KW
Display19 inches


Product Detail Diagram

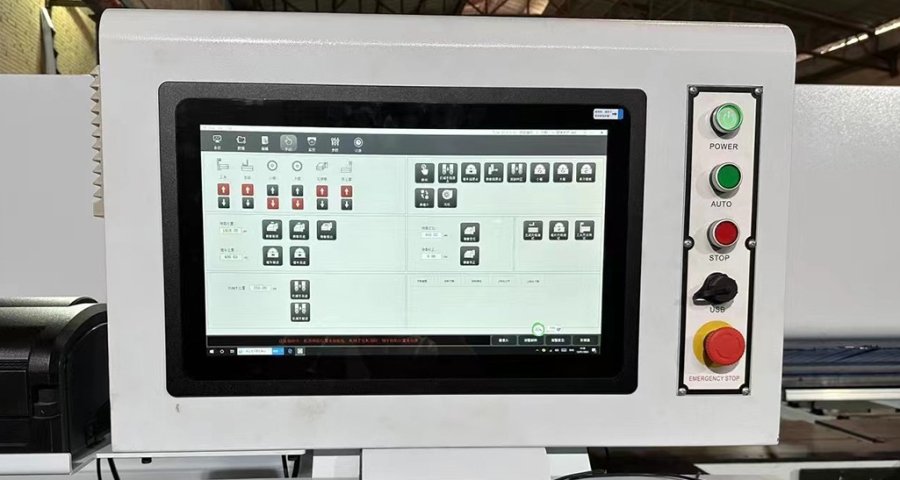

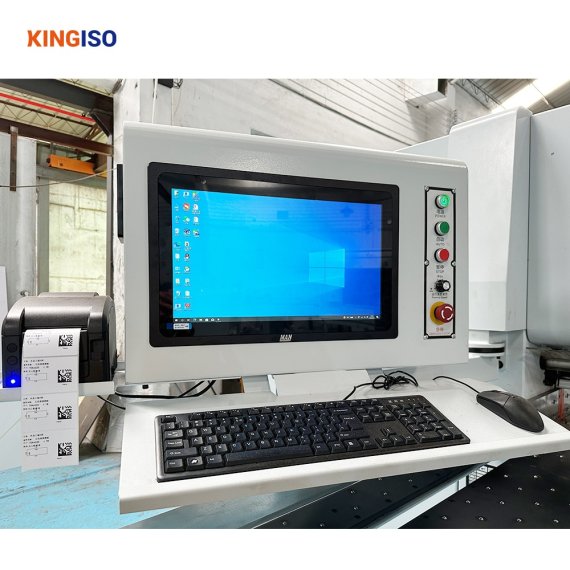

CNC operating panel

CNC operating panel

Visual page,you can edit the required sawing plan and simulate sawing.

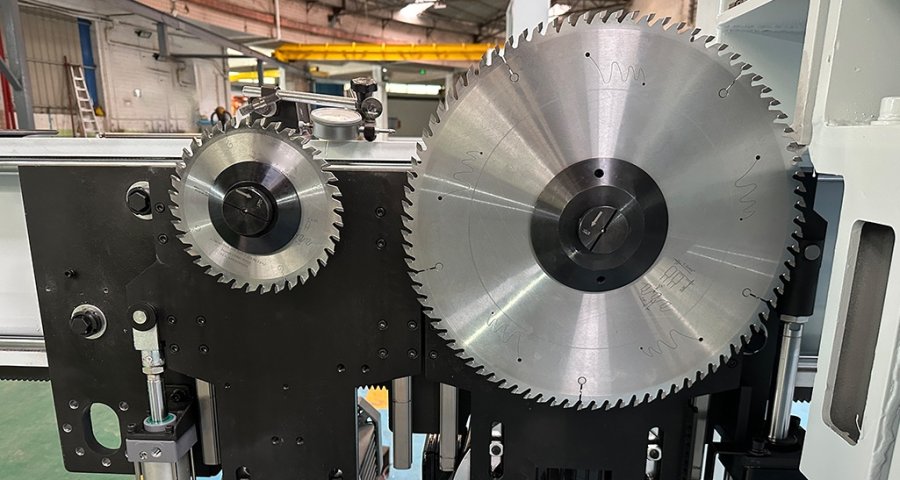

High speed sawing

High speed sawing

With two precision saw blades,double linear guides independent liting.

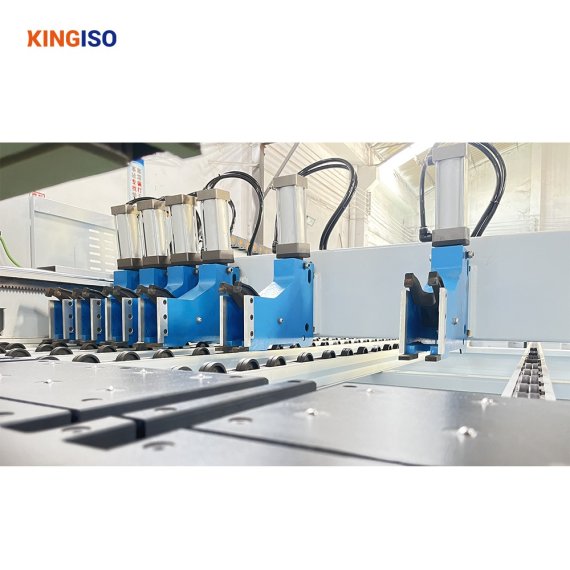

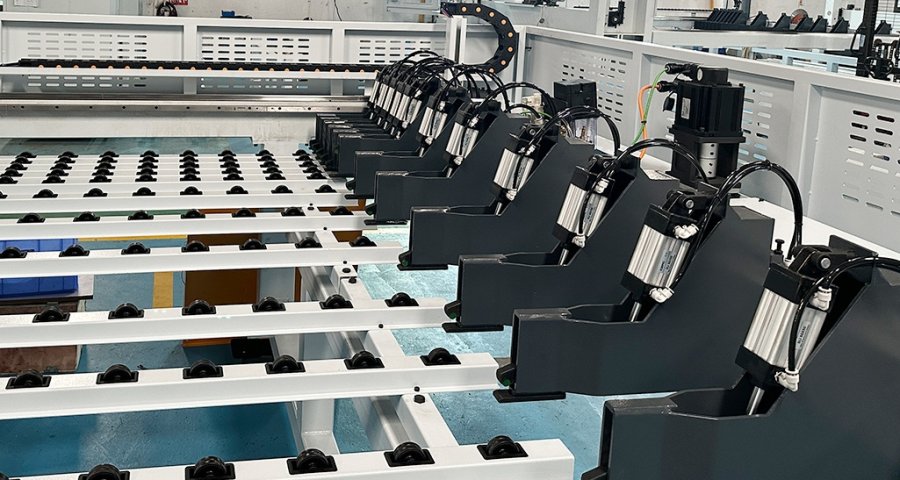

Feeding clamp device

Feeding clamp device

Holding material steady,accurate and powerful, can improve the sawing efficiency of small board.

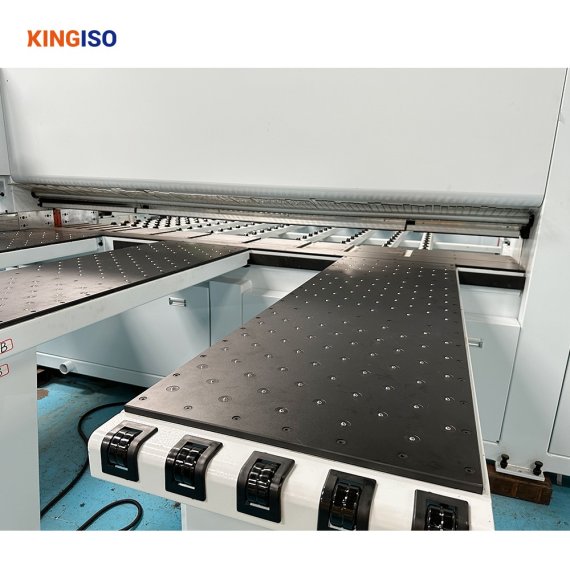

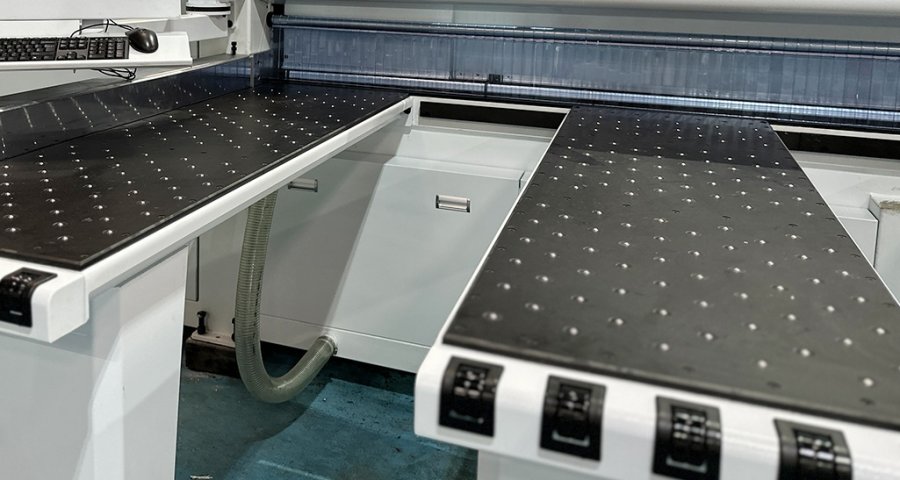

Feed air float table

Feed air float table

Preventthe boardfromscratching,and the operator can easily move the board.

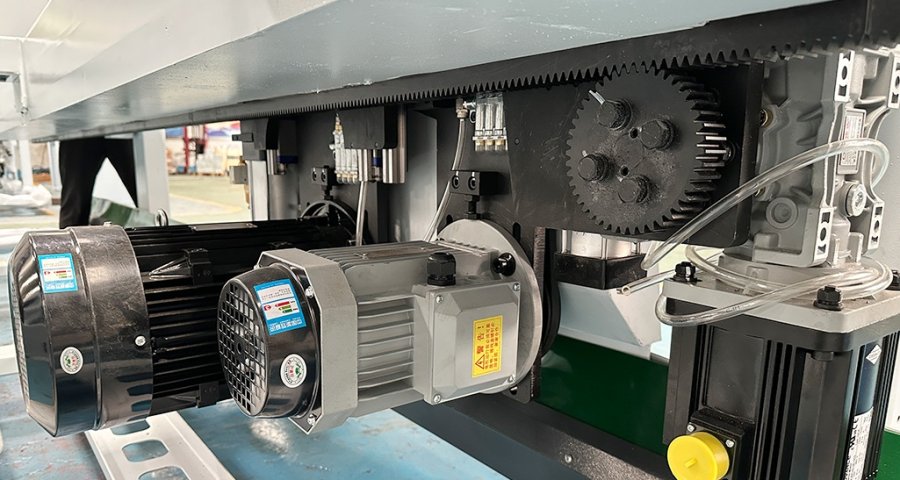

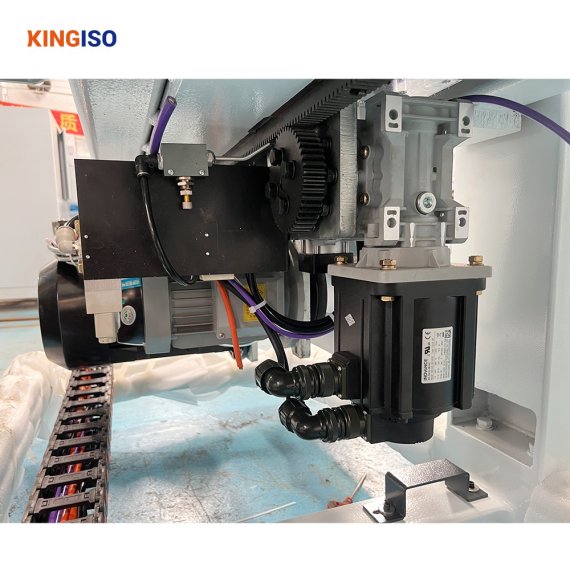

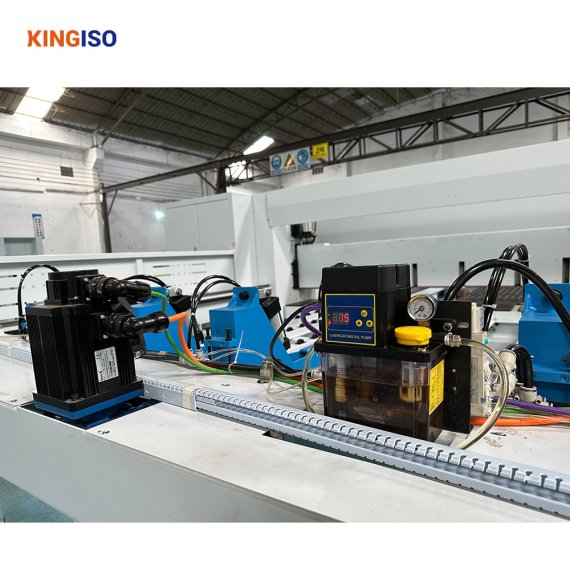

Servo motor

Servo motor

Driven by high-performance servo motor, it canexecute control commands quickly.

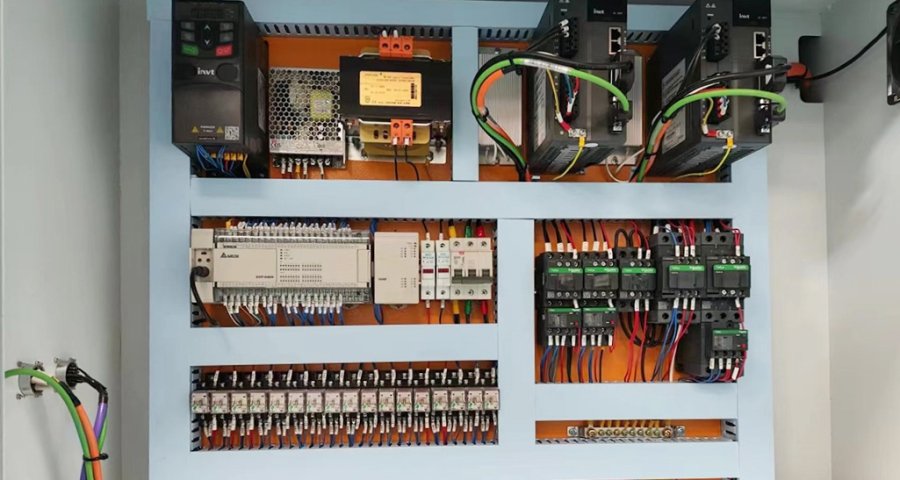

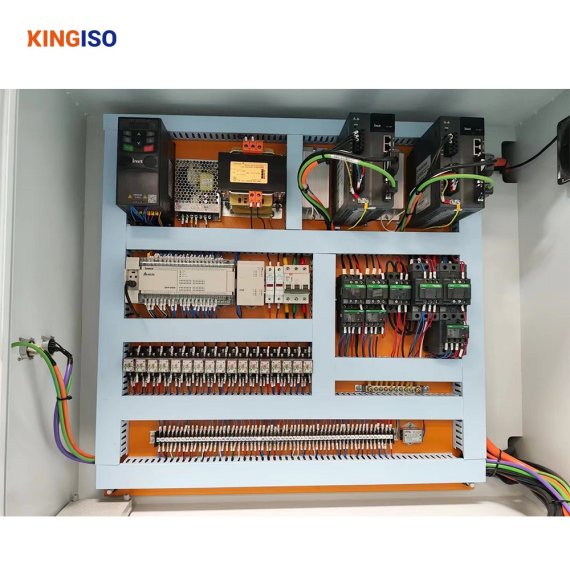

Electrical control element

Electrical control element

Mainly selected from domestic and foreign advanced products,which are safe and stable.

Application

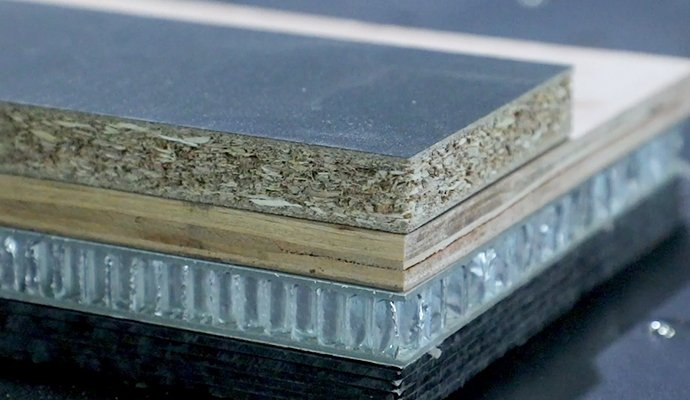

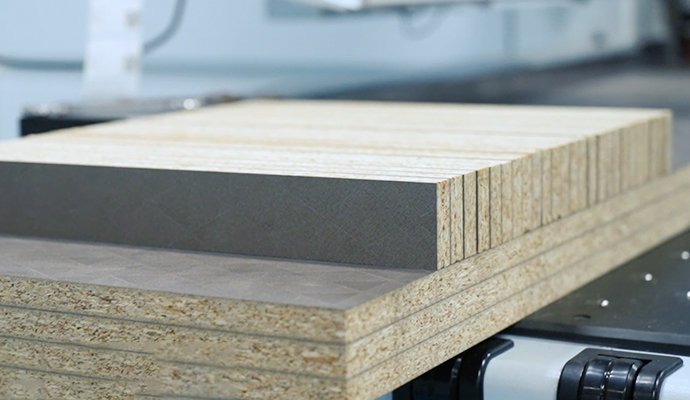

Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
