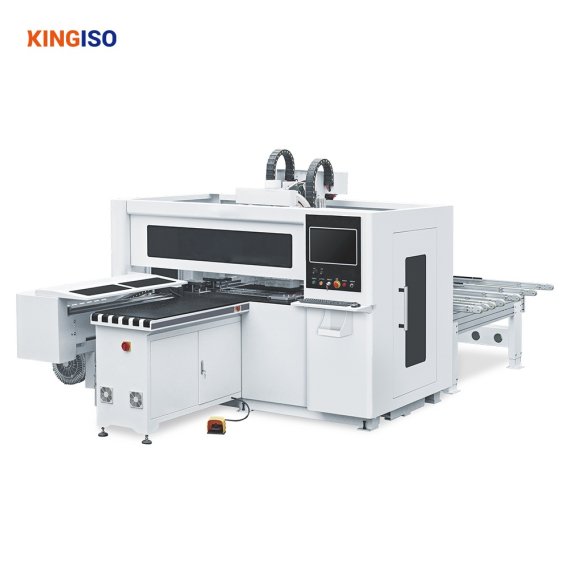

All driling, grooving,and punching of the front and back sides and four sides can be completed in one feeding.
Supports two methods ofront discharging and beck discharging and can be connected to automation equipment to ealize intellient connected production.
Adopt double gripper arms to feed and feed the test. automatically identify the length of the plate, to achieve precise processing.
All driling, grooving,and punching of the front and back sides and four sides can be completed in one feeding.
Supports two methods ofront discharging and beck discharging and can be connected to automation equipment to ealize intellient connected production.
Adopt double gripper arms to feed and feed the test. automatically identify the length of the plate, to achieve precise processing.
| Model | SKI-612 | |
| Each axis travel & Highest targeting parameter | ||
| X axis | 5000mm&120m/min | |
| Y axis | 1680mm&75/min | |
| Z axis | 250mm&30/min | |
| U axis | 5000mm&120m/min | |
| V axis | 1200mm&75m/min | |
| W axis | 250mm&30/min | |
| A axis | 1260mm&40m/min | |
| Drilling combination device | Standard configuration | |
| Vertical drilling | 9 pieces on top + 7 pieces on bottom | |
| Horizontal drill | 4 sticks | |
| High-end configuration(optional) | ||
| Vertical drilling | 12 pieces on top + 9pieces on bottom | |
| Horizontal drill | 8 sticks | |
| Drilling group motor speed | 2800rpm | |
| Motor Power | 2.2kw | |
| Routing and milling | Spindle power | Up and down 3.5kw |
| Tool shank diameter | 1//2 | |
| Spindle speed | 12000rpm | |
| Processing size range | Maximum width of drill up plate | 1220mm |
| Maximum width of drill down plate | 1000mm | |
| Minimum board width | 40mm | |
| Maximum length of plate | 3500mm | |
| Minimum length of plate | 250mm | |
| Maximum thickness of plate | 50mm | |
| Vacuum flow rate | 9600m³/h | |
| Other parameters | Workbench height | 950mm |
| Total power | 21kw | |
| Operating voltage | 380v | |
| Working pressure | 0.65-0.8mpa | |
| Machine net weight | 2200kg | |
| Machine dimensions | 6000*2900*2200(mm) | |

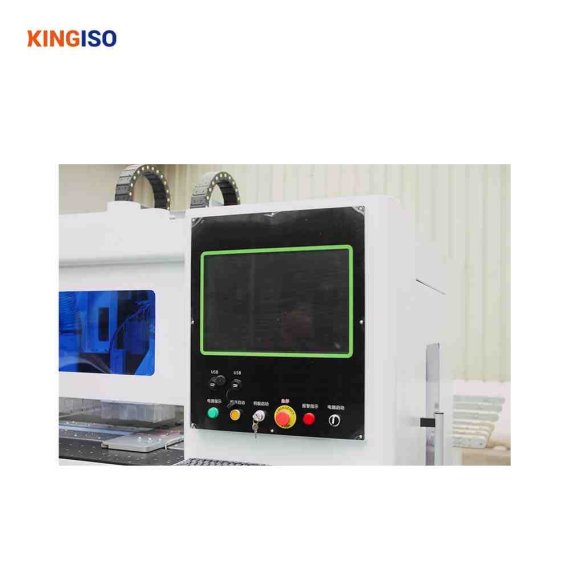

Control system
The simple operation interface makes the machine stroke more smooth and the processing more accurate.

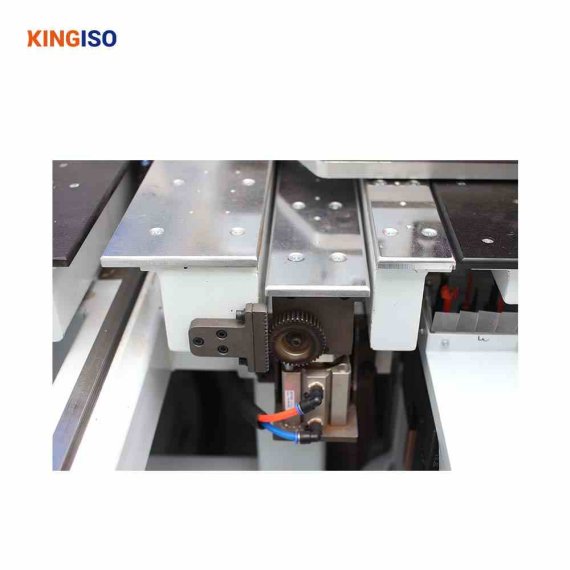

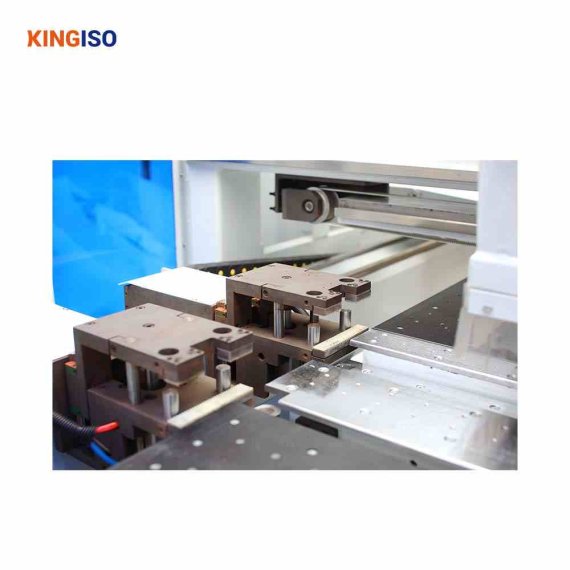

Smart gripper
Pneumatic gripping hand, stable material gripping, more accurate hole position, intelligent avoidance of drilling bag stroke, reducing failure rate.

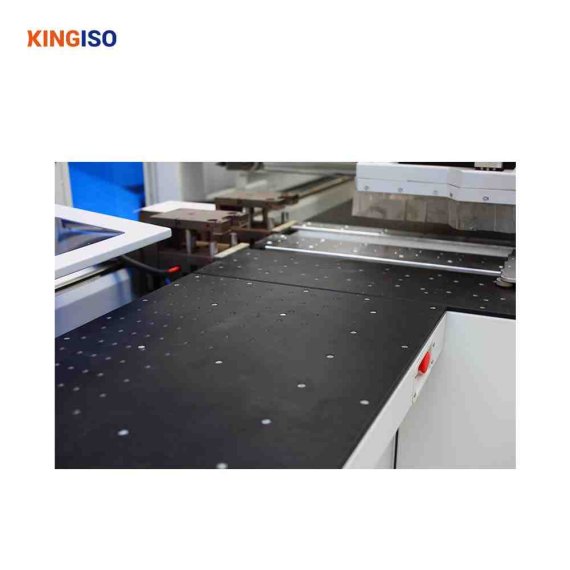

Feeding table
Pneumatic floating table, reduce the damage to the workpiece surface, easy feeding.

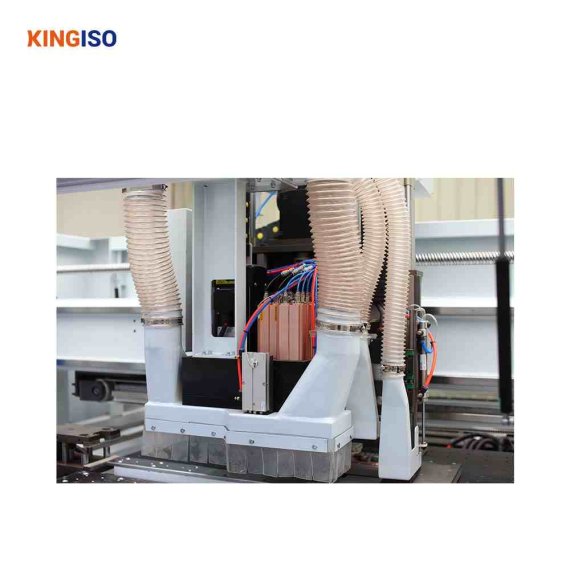

Anti-vibration drill kit
Precision anti-vibration drill package and high-quality drill group can effectively ensure the stable operation of the equipment and the processing accuracy of the equipment.

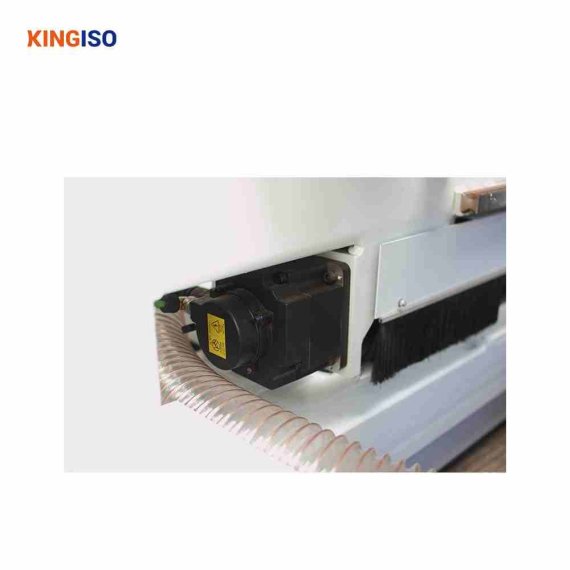

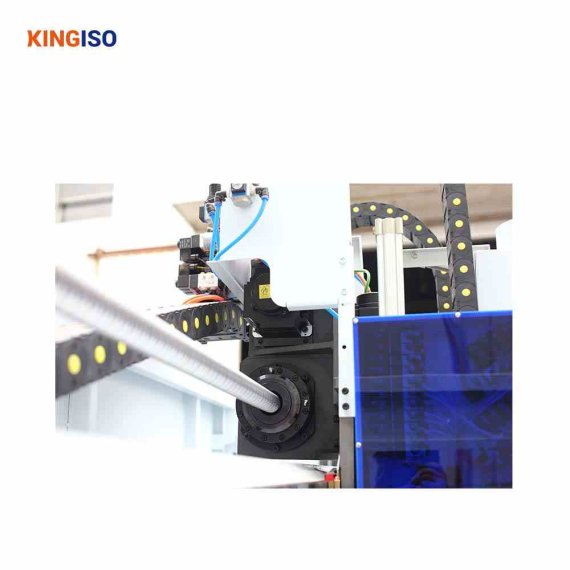

Spindle
Up and down double spindle motor for cutting, cutting, grooving and other processes on the sheet.
Suitable for driing process in panel furniture, whole house customization , cabinet wardrobe customization industries Support automated intelligent connection, reduce labor costs, and improve production efficiency.
