1. This product is suitable for custom-made furniture sided ring equipment, used for horizontal drilling applications of various man-made panels, solid wood panels, and semi-solid wood panels.
2. It is an economical and simple processing equipment with easy operation and fast drilling speed.
3.Sanhe one side control/wooden saleshole/slot-multi-segment slot/dual motor supports code scanning function.
| Model | KI3000F |
| Maximum milling length | 2800mm |
| Maximum milling depth | 130mm |
| Maximum milling width | 25mm |
| Workbench height | 800mm |
| Milling slot spindle speed | 18000r/min |
| Total motor power | 14.5kw |
| Machine size | 3700*1600*1600 |
| Drive control system | Lorelon Pond side slotting motor 3.5kW, side -opening square hole motor 2.2kW, upper hole motor 2.2kW, upper milling slot motor 3.5kW driver private server motor: 750W+750W+400W |

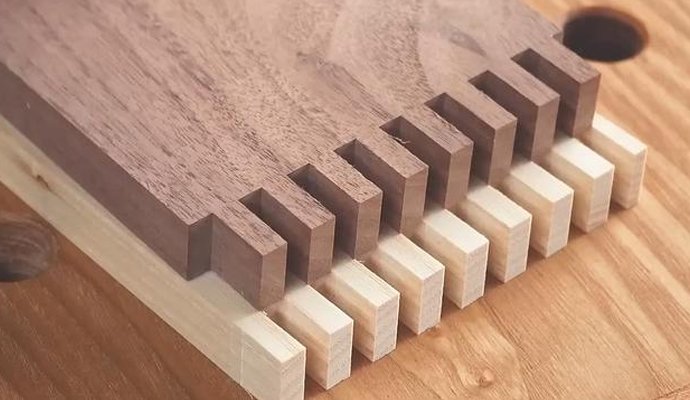

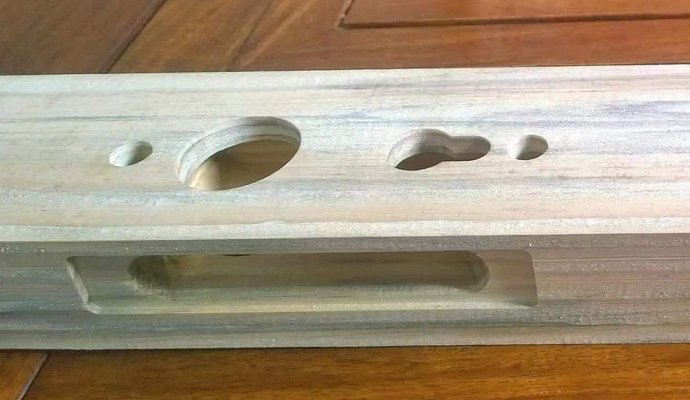

| Main function | Three -in -one, blind hole mode, slot mode, combination graphic, tenon -and -mortise structure, free hand -free hand, straight -straight device, hinge hole, lock hole mode, support code scanning function. |

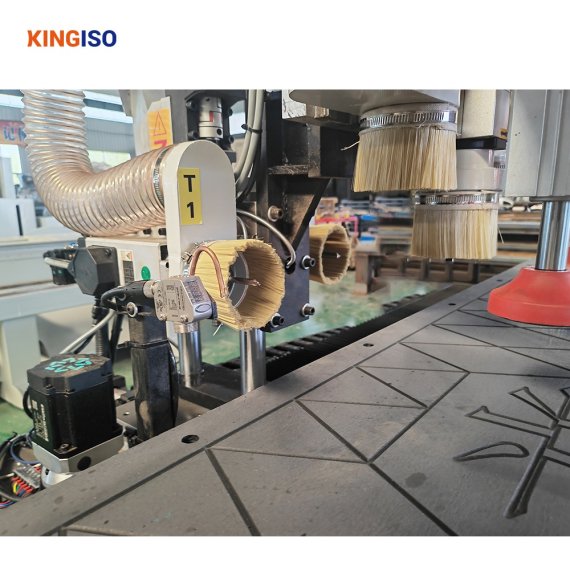

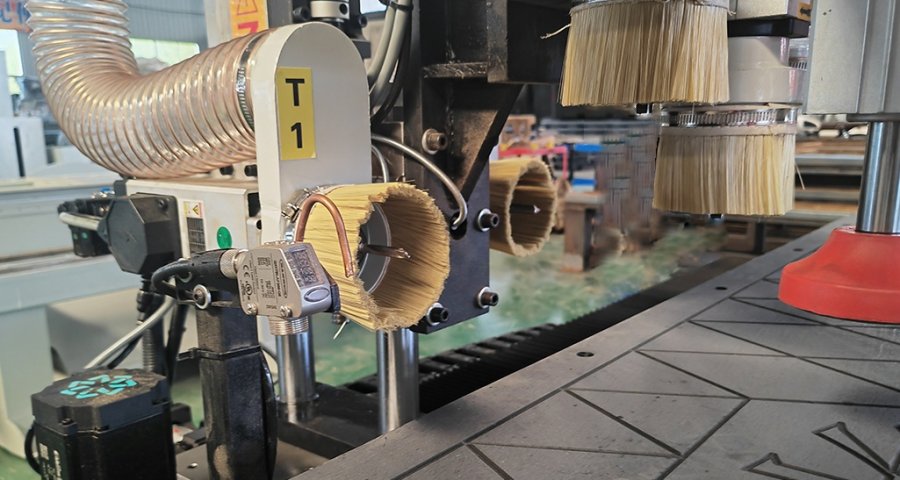

Four Spindles
The drilling package of the machine is controlled by the servo motor.

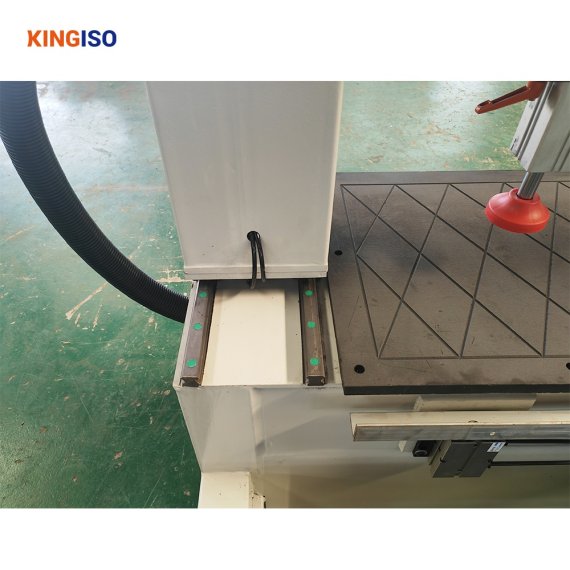

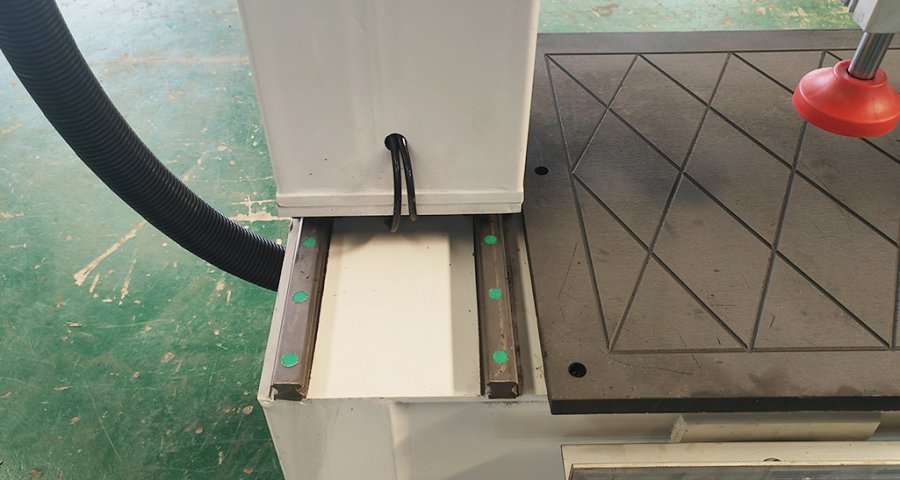

Line guide
Linear guide, double guide design, small resistance.

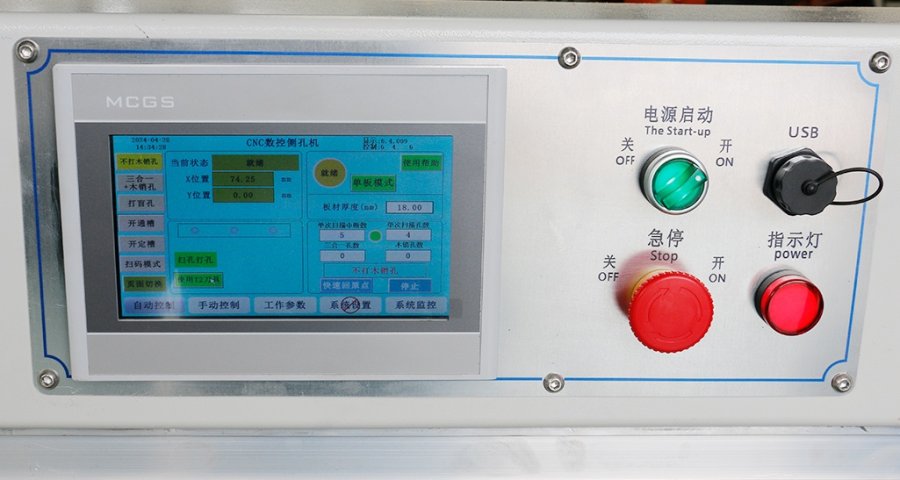

Control screen
Using the newest control system, easy to operate.

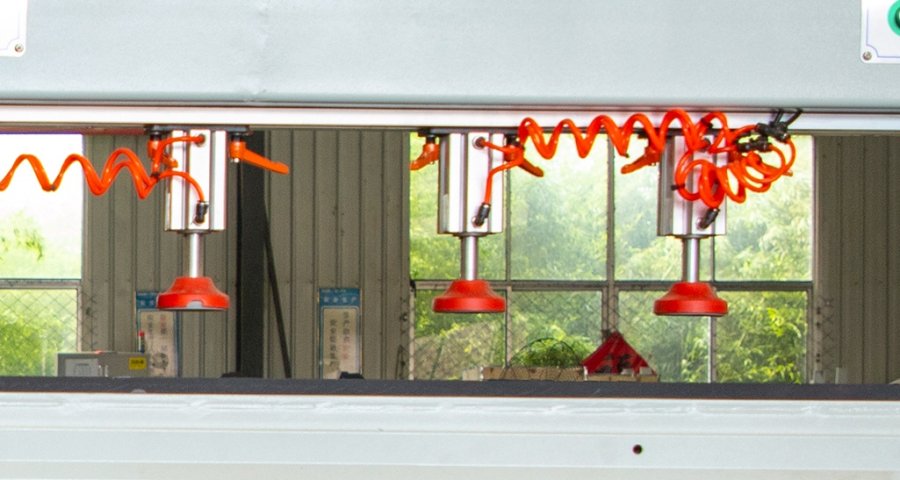

Cylinder pressing material
Workstations can be operated independently or integrated, and both long and short boards can adapt to work.

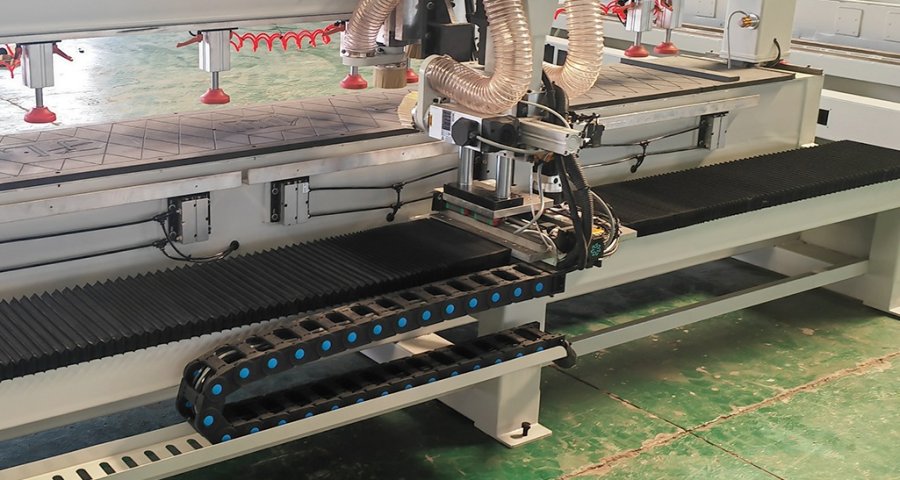

Drive rail
Precision drive rail. precise processing.

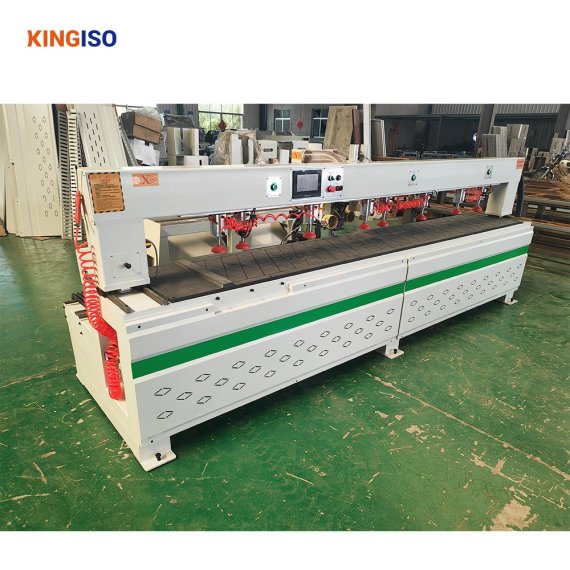

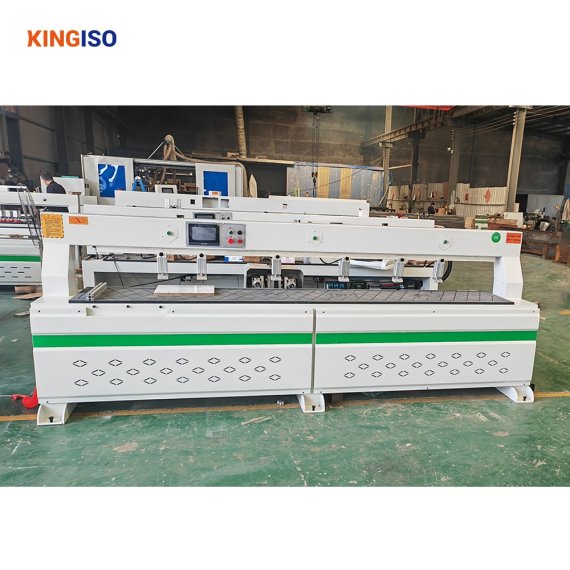

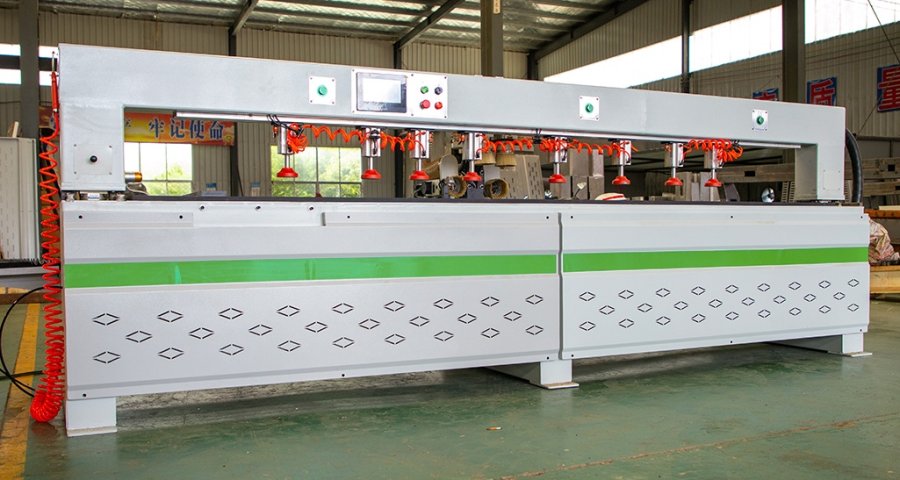

Machine
Running in a high automatization and intellectualization.
This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.
