1.Automatically split and optimize layout to improve sheet utilization Engraving, cutting, engraving and milling, drilling and grooving multiple processes are done in one machine.
2.The integrated welding frame and CNCmilling machine are used for precise processing to ensure the stability of equipment processing.
3.The open system design has strong compatibility, which can realize single machine sideline and multi-machine intelligent line production.
1.Automatically split and optimize layout to improve sheet utilization Engraving, cutting, engraving and milling, drilling and grooving multiple processes are done in one machine.
2.The integrated welding frame and CNCmilling machine are used for precise processing to ensure the stability of equipment processing.
3.The open system design has strong compatibility, which can realize single machine sideline and multi-machine intelligent line production.

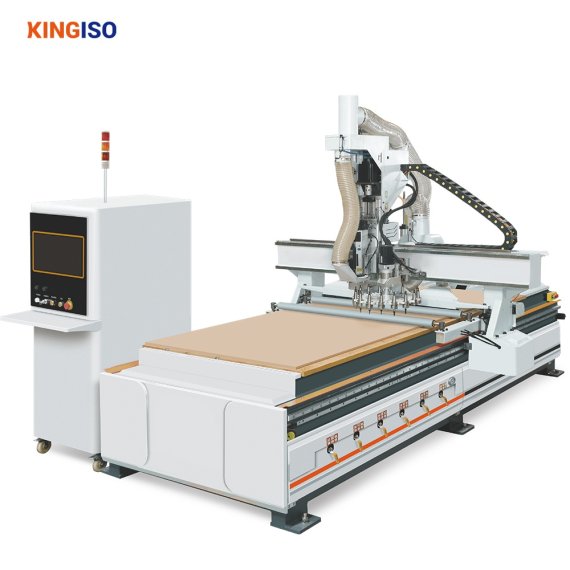

| Model | KI-NC16 |
| Processing range | 2500*1300*50mm 2800*1300*50mm 3800*1800*50mm |
| Spindle power | 9kw |
| Spindle speed | 24000r/min |
| Fast-moving | 70m/min |
| Maximum working speed | 18m/min |
| Vacuum suction port | Φ150mm*1+100mm*1 |
| Dimensions | 4500*2300*2300mm |

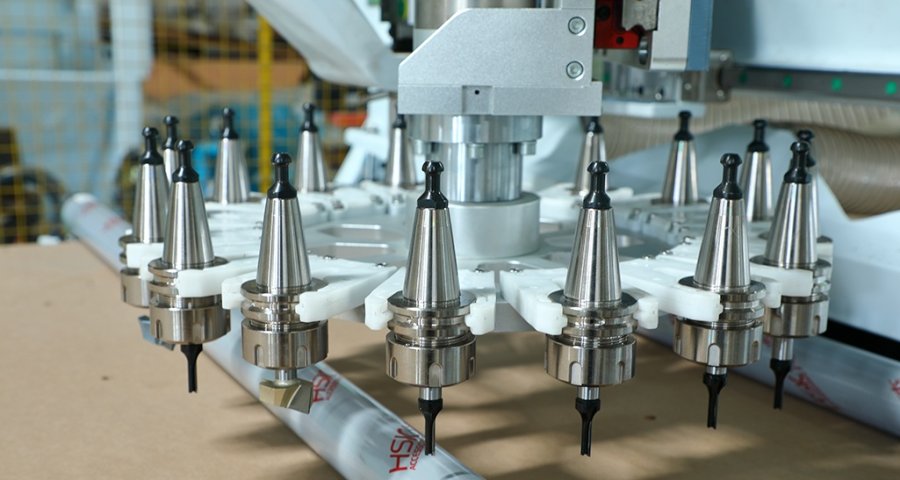

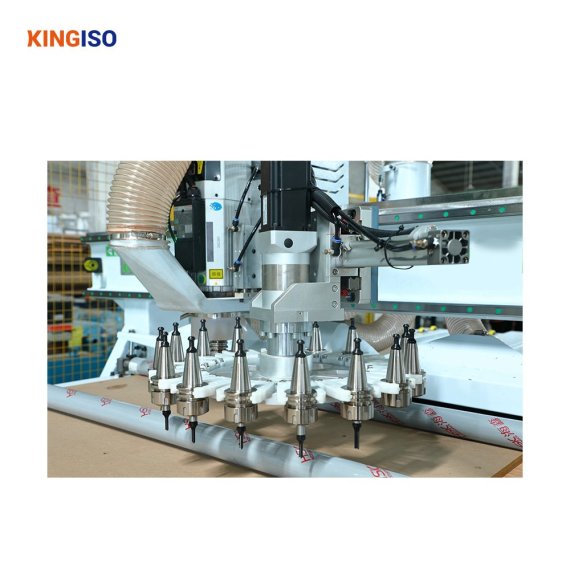

16 disc tool change
16 disc tool change, integrated cutting, drilling,milling.

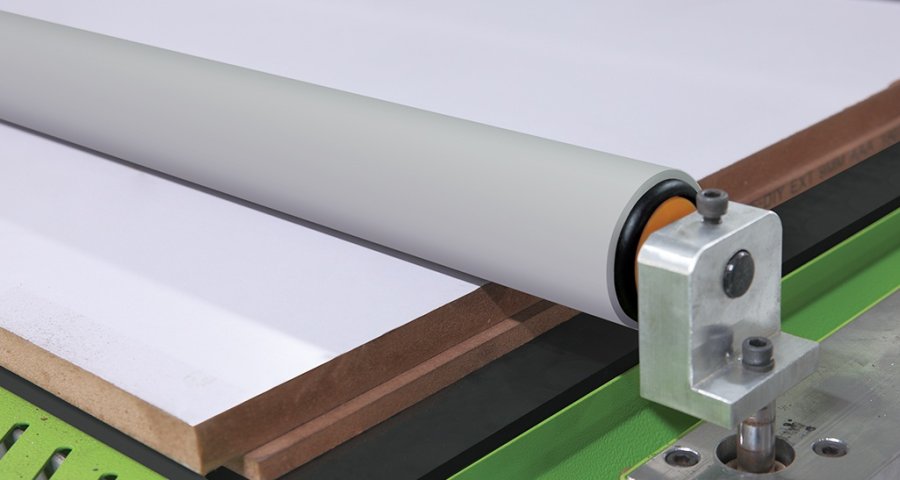

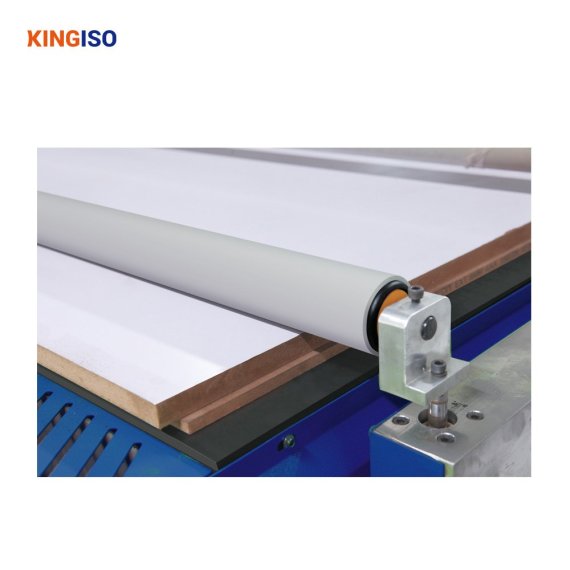

Pressing roller
Pneumatic rubber-coated pressing roller(optional).

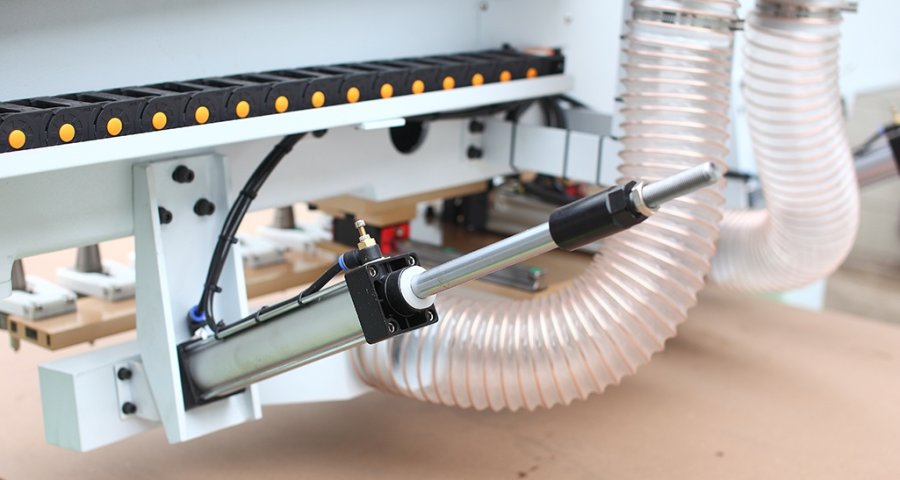

Trinity feeding device
Follow-up pneumatic pushing material is aligned and positioned.
Servo motor
Vertical lift servo motor. Imported servo motor & driver and reducer.

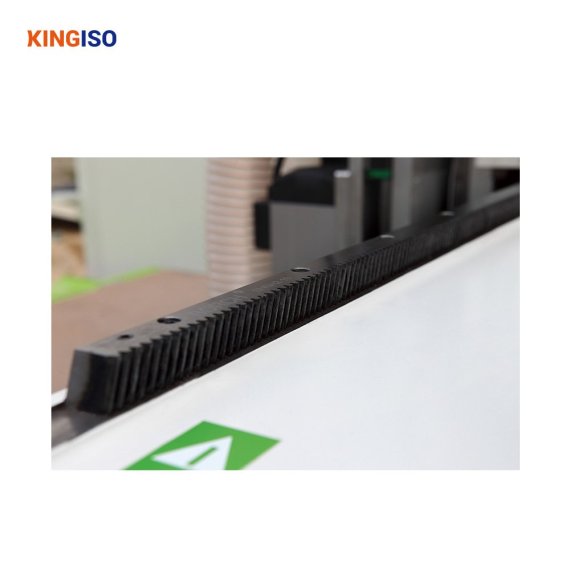

Gears and Racks
The X/Y axis is driven by helical gears, which has large bearing capacity and high precision.
Vacuum area control
Controlled by 6 independent switches, which can complete the processing of various workpieces and make reasonable use of the suction board space.
Suitable for various cabinet doors and other door processing For example: cabinet, closet, cabinet door, wooden door closet door, sliding door, solid wood furniture, office furniture engraving and milling.
