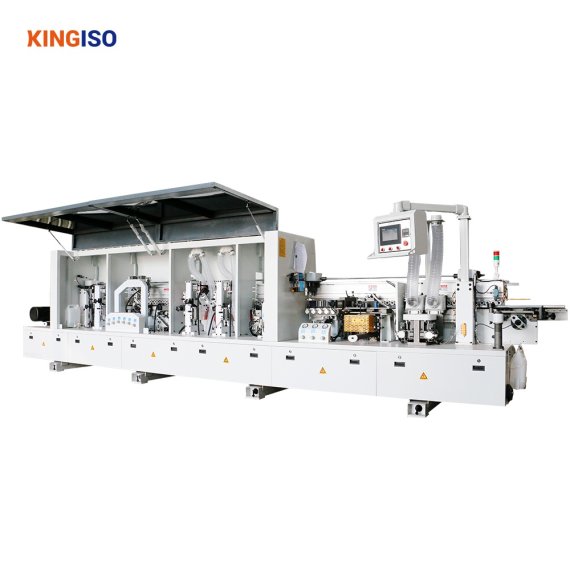

The machine is with 8 functions as follows pre-milling, gluing, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing.
(sales of over 2000+)1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.
2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.
| Model | MFZ609 |
| Edge band thickness | 0.4-3mm |
| Panel thickness | 10-60mm |
| Panel length | ≥150mm |
| Panel width | ≥60mm |
| Working pressure | 0.6Mpa |
| Feeding speed | 12-23m/min |
| Motor power | 16.5kw |
| Overall dimensions | 6800*1000*1800mm |

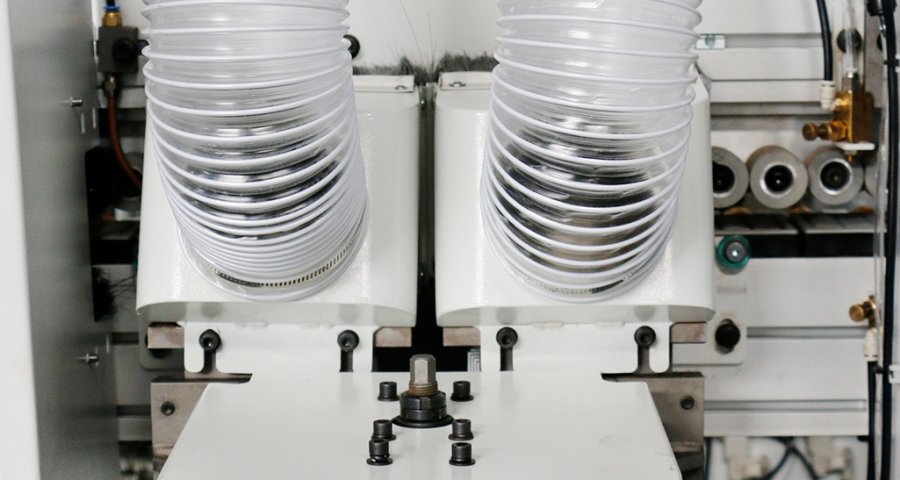

Pre-milling
Double pre-milling linear guide type pre-milling device.

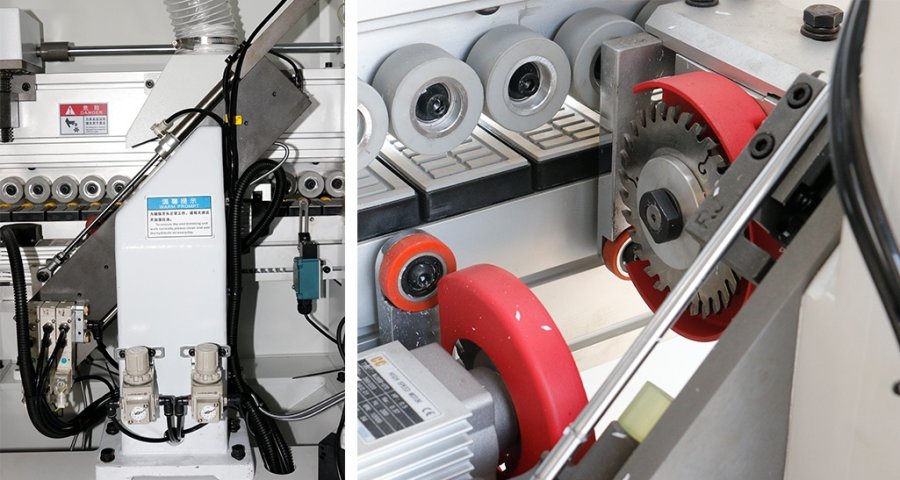

End trimming
The air pressure balance device is used to make the head more stable and easier to adjust. The gas circuit design is optimized, the noise at the head is reduced, and the use efficiency of the equipment is improved.

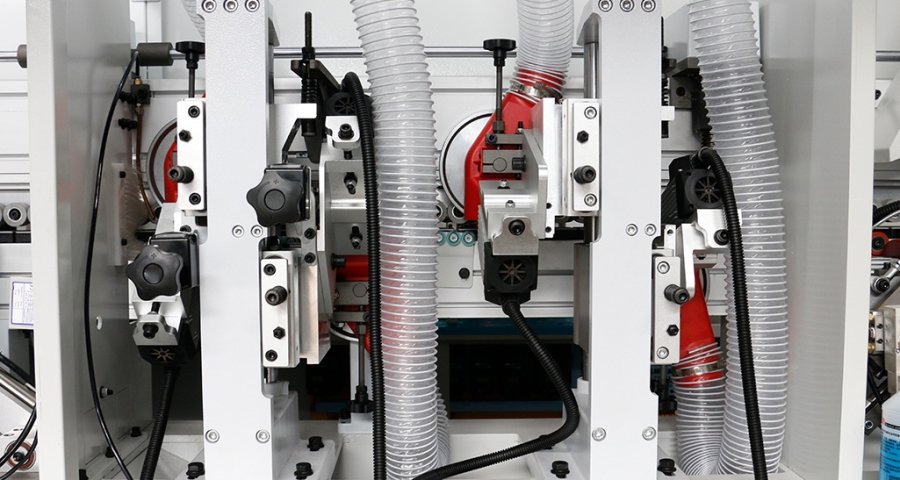

Rough trimming/Fine trimming
The rough trimming knife is a flat knife. It is used to trim the excess part when sealing the veneer. Fine trimming unit: A stable frame design is adopted to reduce the jitter caused by the tool.

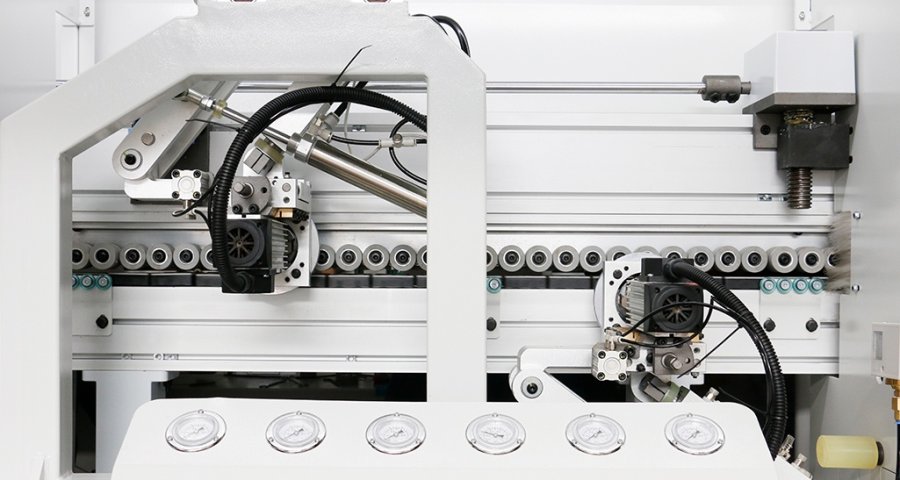

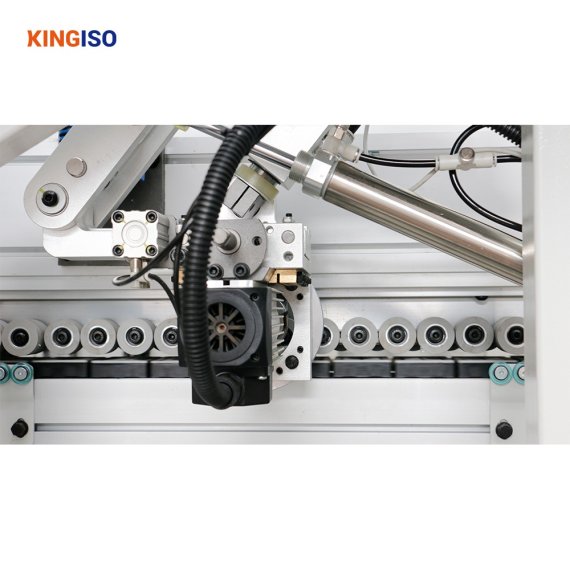

Corner trimming
The imitating edge trimming device makes the adjacent edges of the sealing edge fuller and more rounded.

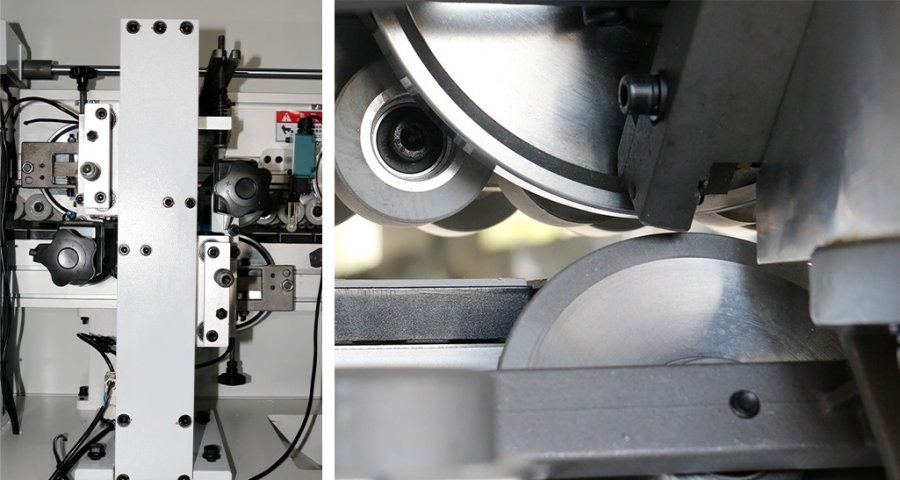

Scraping
The small and compact edge scraping solves the problem of heavy glue line. At the same time, trim the excess sideband again to make the edge banding more beautiful.

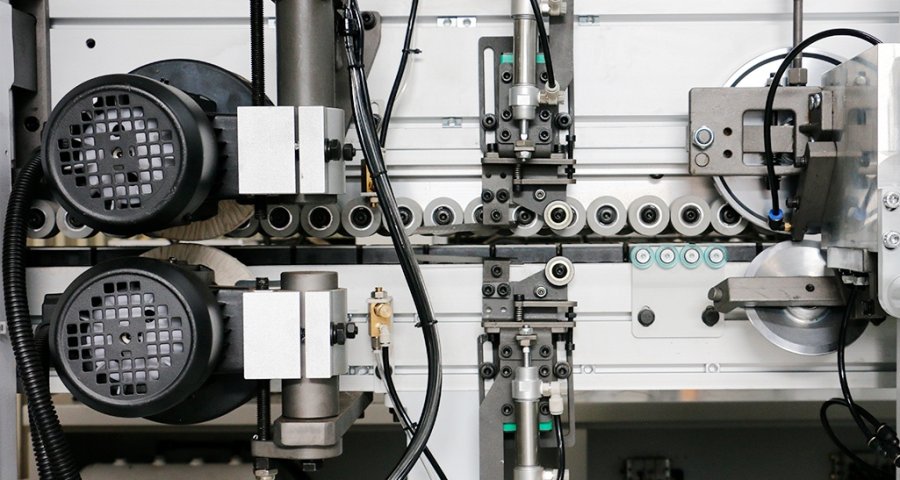

Buffing
Up and down polishing mechanism to make the surface of the workpiece smoother.
