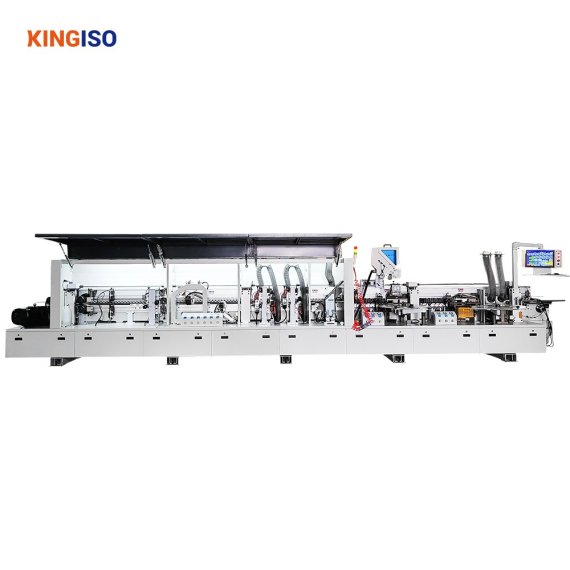

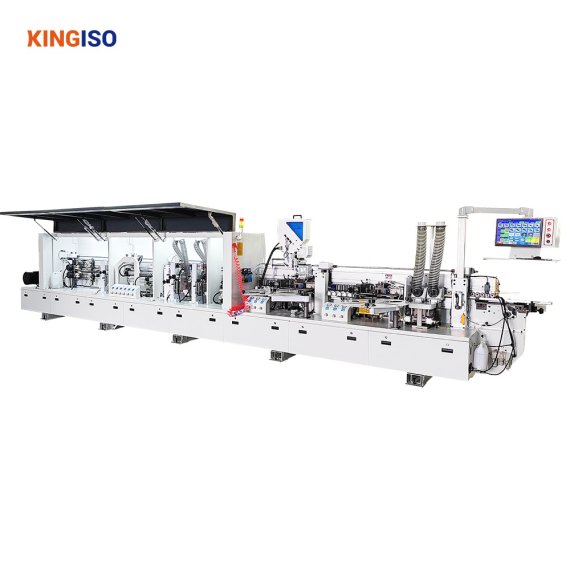

Main functions: Separation - pre-milling - glue 1 - baking lamp - glue pot + quick glue 2 - baking lamp - end trimming - rough trimming - fine trimming - tracking - scraping 1 - scraping 2 (reserved position) - flexible flat scraping - cleaning - polishing 1 - polishing 2 (6-wheel pressing + glue scraping device fully surrounded by heavy-duty frame).
1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.
2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.
| Model | KI668JSG |
| Edge thickness | 0.4-3mm |
| Panel thickness | 9-60mm |
| Panel length | ≥150mm |
| Panel width | ≥60mm |

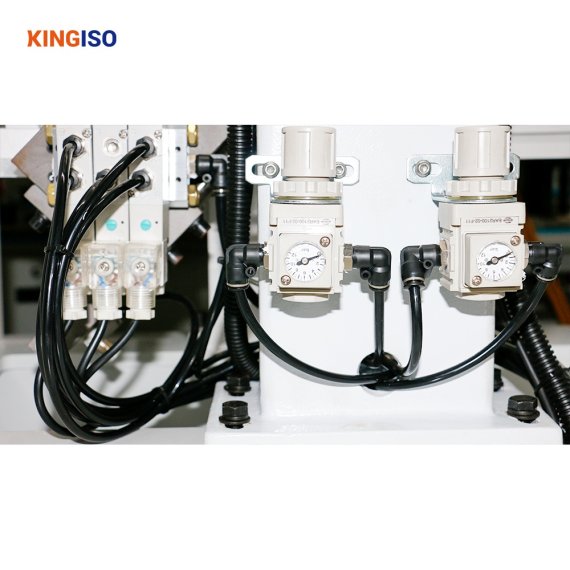

| Working pressure | 0.7Mpa |
| Feeding speed | 15-23m/min |
| Total power | 29KW |
| Overall dimensions | 8800*1100*1750mm |

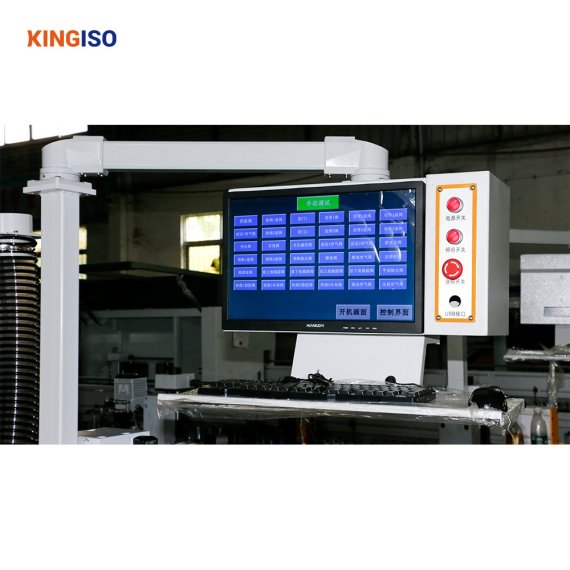

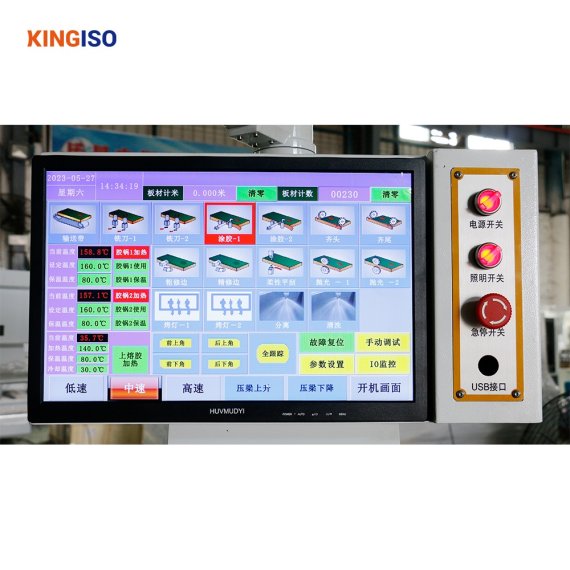

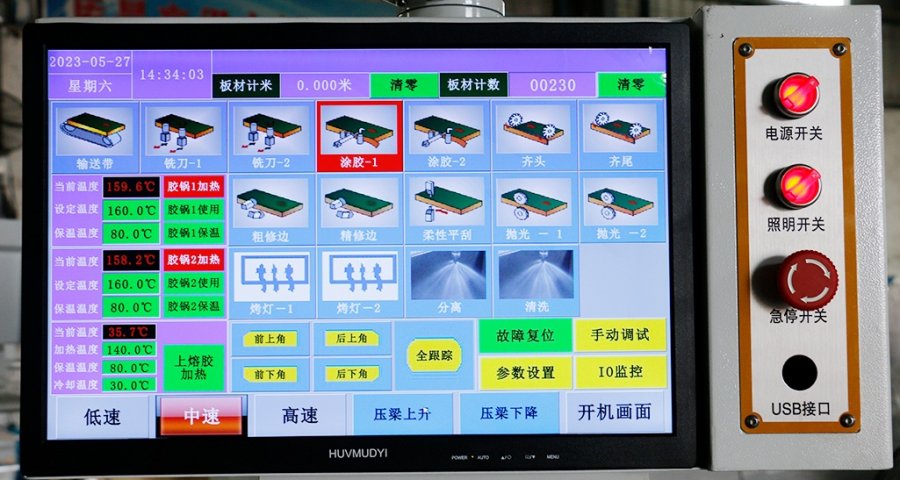

PLC control
Start and stop equipment, function selection, parameter setting, warning prompts, etc.

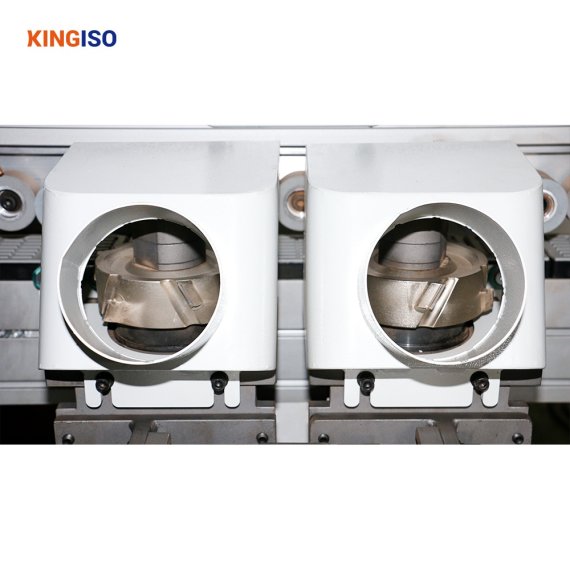

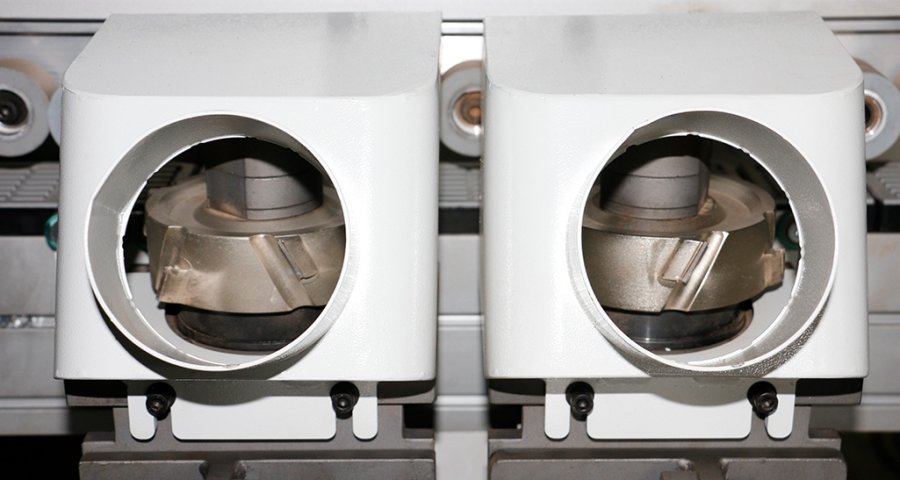

Pre-milling
Double pre-milling linear guide type pre-milling device.

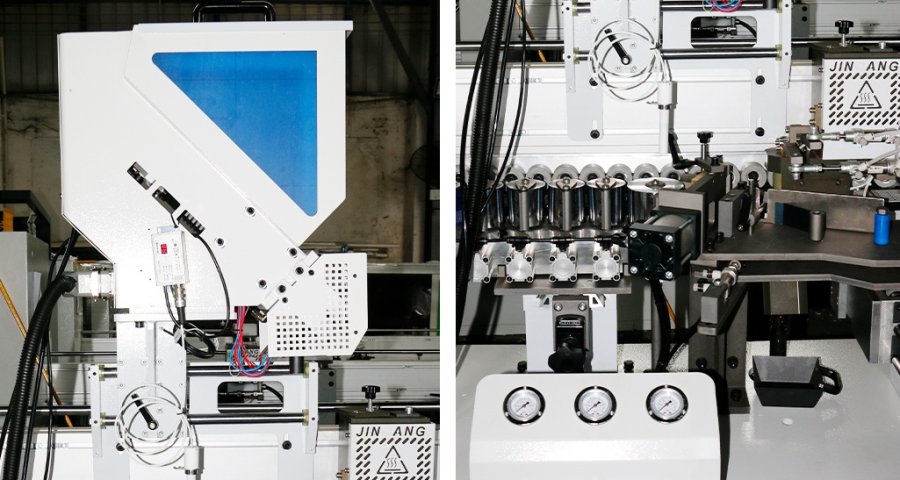

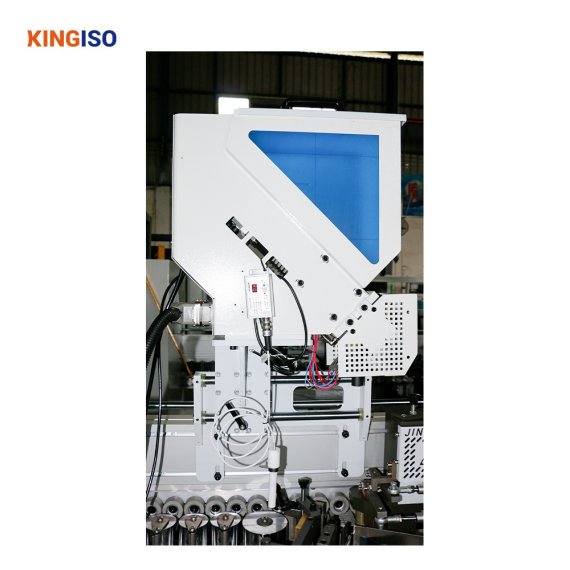

EVA fast melting device
The glue pot melts glue quickly and heats up quickly,so it can achieve edge sealing without glue lines.

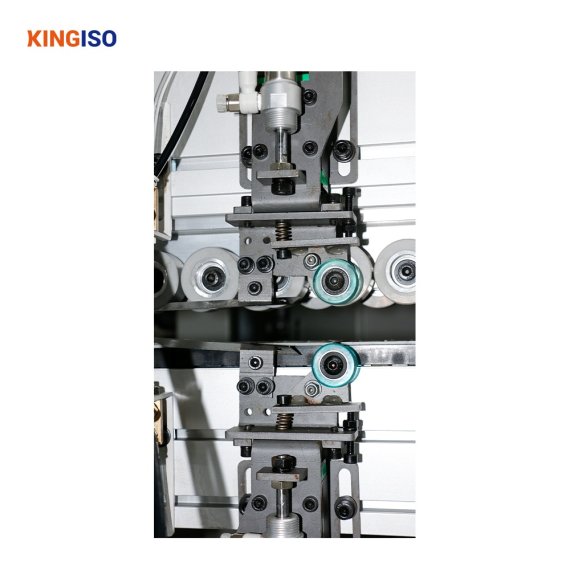

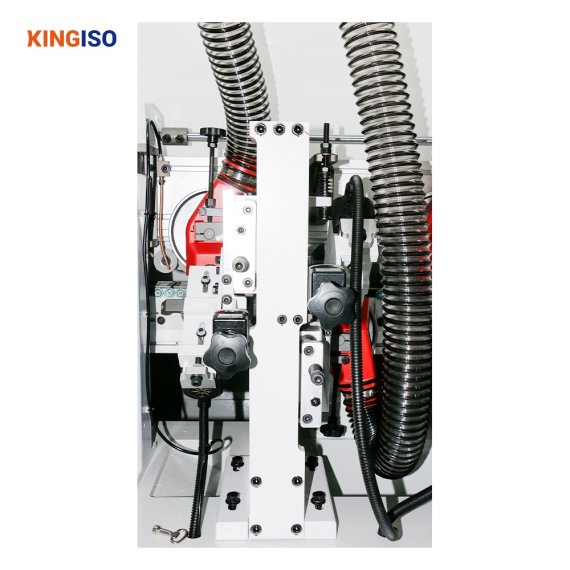

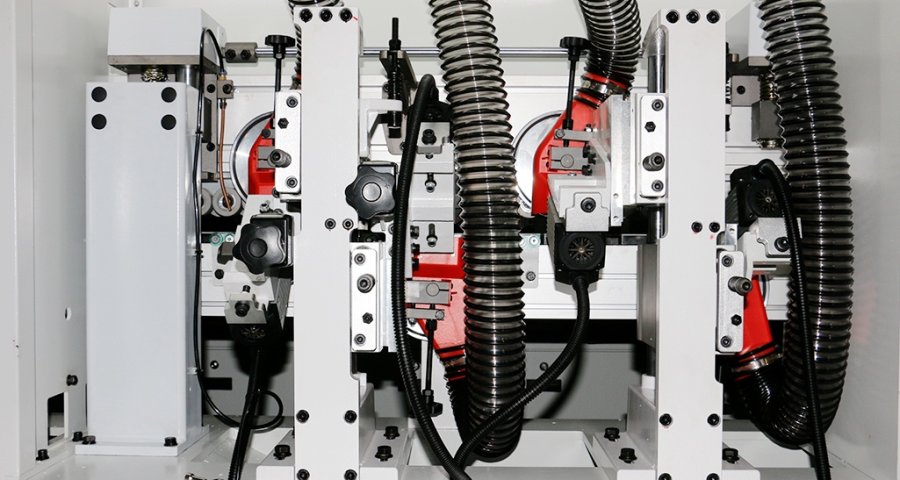

Rough trimming/Fine trimming
The rough trimming knife is a flat knife. It is used to trim the excess part when sealing the veneer. Fine trimming unit: A stable frame design is adopted to reduce the jitter caused by the tool .

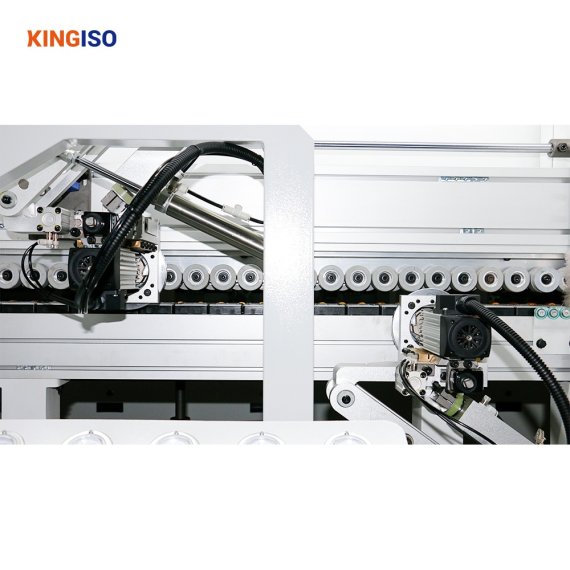

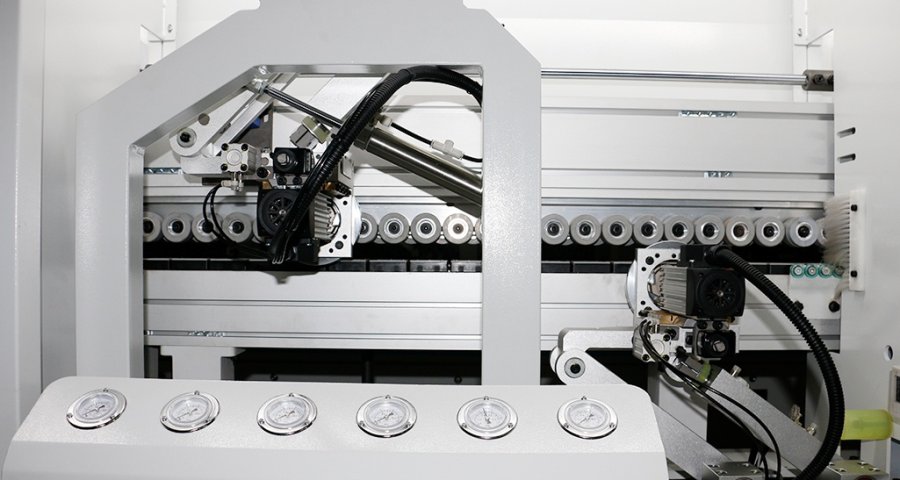

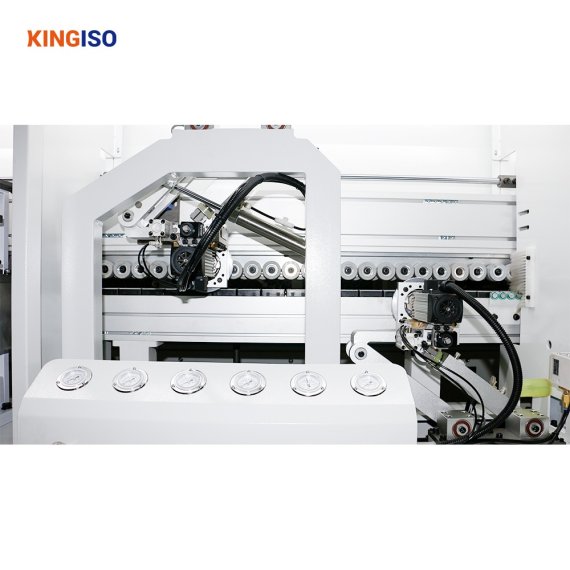

Corner trimming
The imitating edge trimming device makes the adjacent edges of the sealing edge fuller and more rounded.

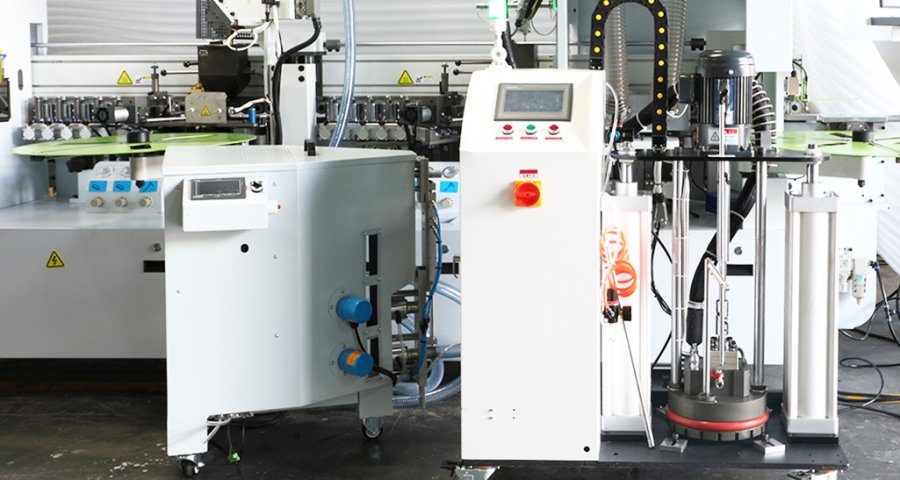

Optional PUR glue machine
PUR edge banding is waterproof, oil-proof and moisture-proof. Its strong adhesion makes the edge banding difficult to fall off. It is more than 10 times more sticky than ordinary edge banding machines.

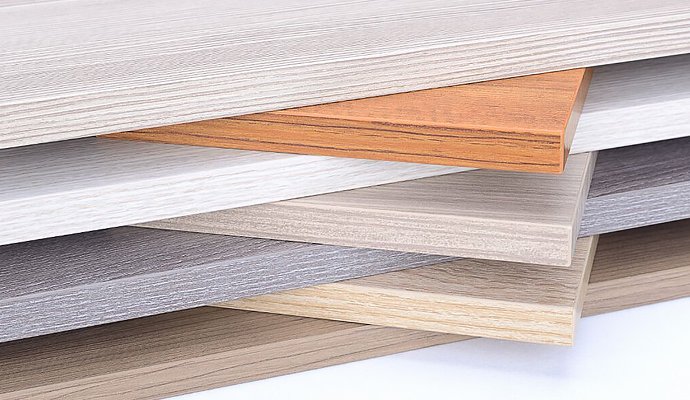

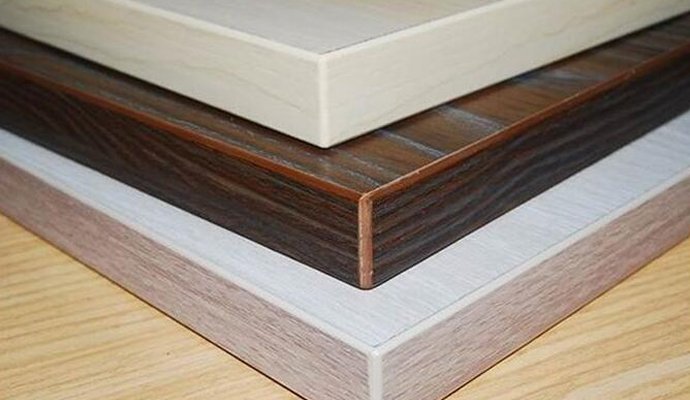

Automatic edge banding machine is applicable to edge banding and trimming of MDF, blockboard, solid wood board,particle board, polymer door board, plywood, etc. The edge banding is exquisite, smooth, good feel, and the sealing line is straight and smooth.
