KI868JSG Edge Banding Machine

KI868JSG Edge Banding Machine

(sales of over 2000+)

Main functions：Separation-pre-milling-gluing 1-edge-welding 1-fast glue sol 1-edge-welding 2-fast double-track end-rough trimming-fine trimming 1-fine trimming 2-four-knife high-speed tracking-scraping 1-scraping 2-cleaning-polishing 1-polishing 2 (6-wheel pressing + glue scraping device fully surrounded heavy-duty frame)

1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.

2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.

inquire Now Add To Inquiry Basket

PRODUCT DETAILS PRODUCT REVIEWS ONLINE MESSAGE RELATED PRODUCTS

Product Details

Product Description/Advantages

Parameter

Model	KI868JSG
Edge thickness	0.4-3mm
Panel thickness	9-60mm
Panel length	50mm(without pre-milling;100mm(with pre-milling)
Panel width	≥60mm
Working pressure	0.7Mpa
Feeding speed	26-28-32m/min
Total power	35.5KW
Overall dimensions	1100011001750mm

Product Detail Diagram

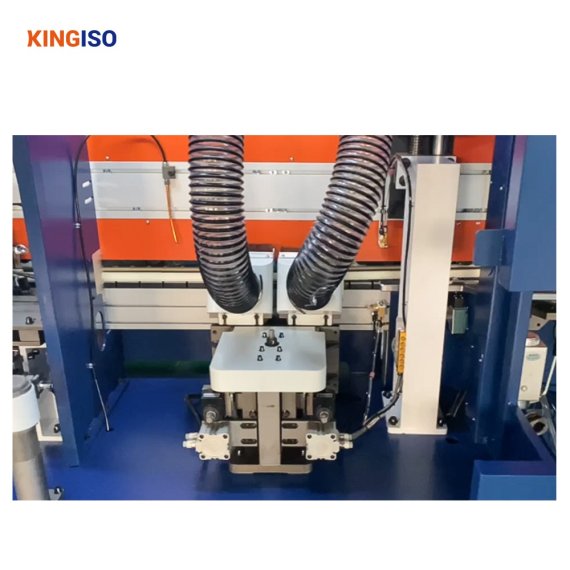

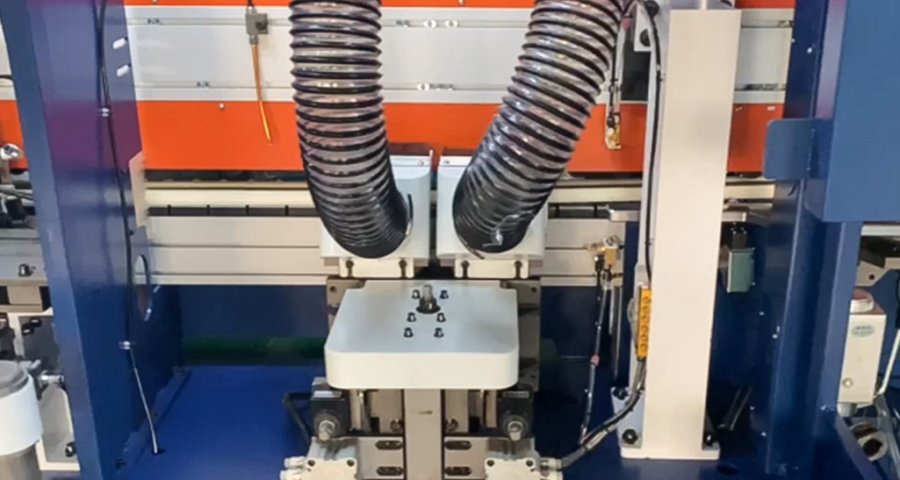

Pre-milling

Double pre-milling linear guide type pre-milling device.

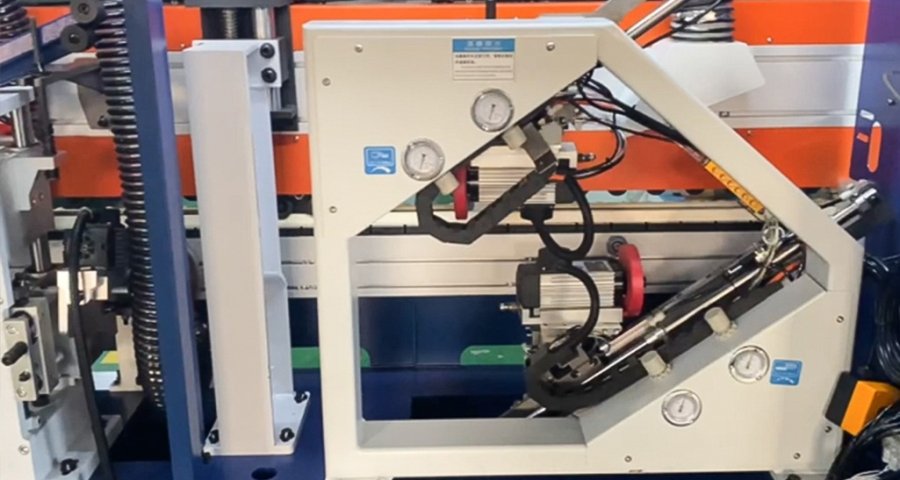

Double-track edge trimming

The edge trimming strips at both ends of the board are cut off after edge trimming. The single-track 45-degree edge trimming design is more accurate and efficient.

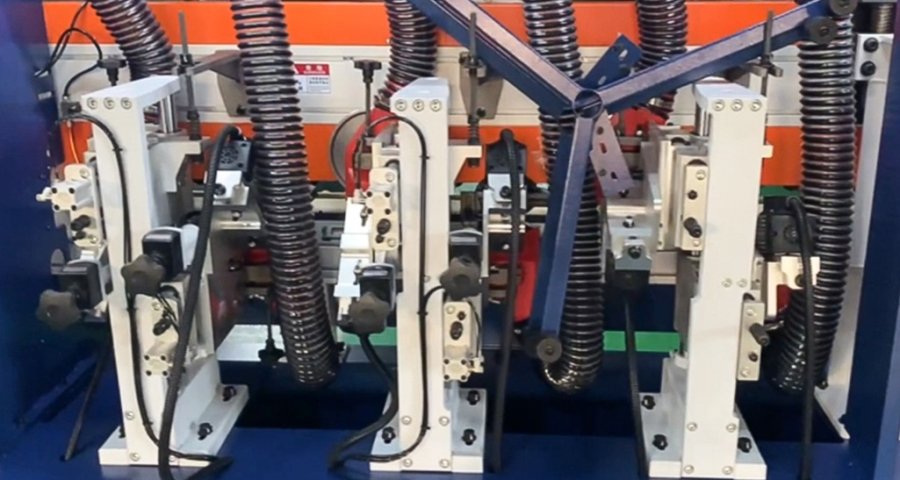

Three trimming

By rough trimming and fine trimming, the excess edge banding on the upper and lower sides of the panel is cut to make it parallel to the height of the panel, making the edge banding effect more refined.

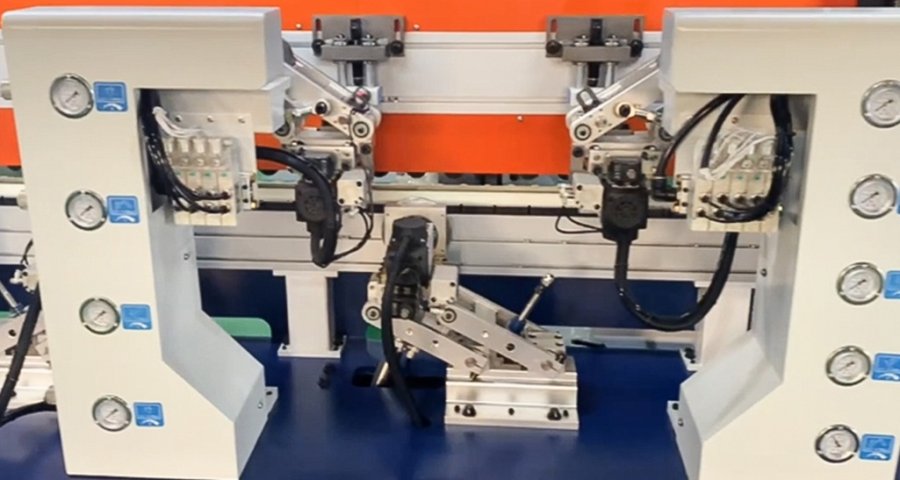

Four-head tracking

The four corners of the edge-sealed board are chamfered and rounded to make the four corners more refined and smooth after edge sealing.

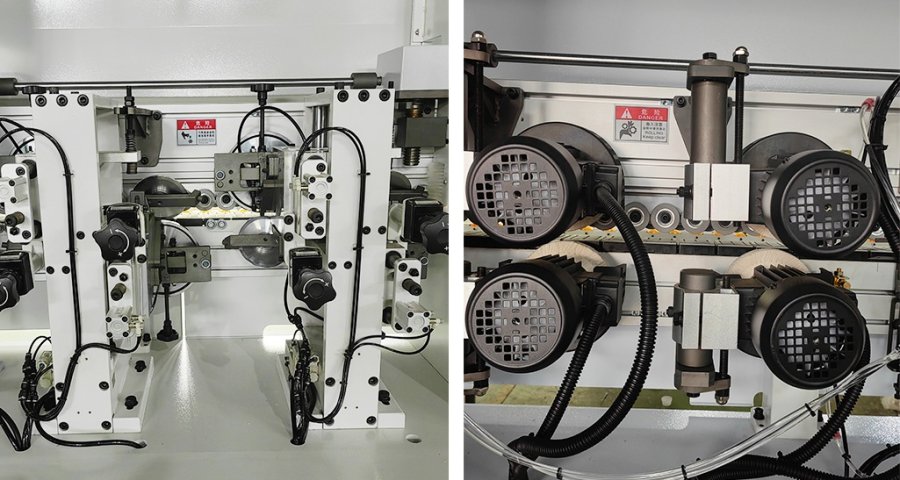

Double scraping/Double buffing

Scrape out the arc edge of angle α on the upper and lower edges of the edge band after trimming; polish the plate after edge banding to make the upper and lower sides of the edge band smoother.

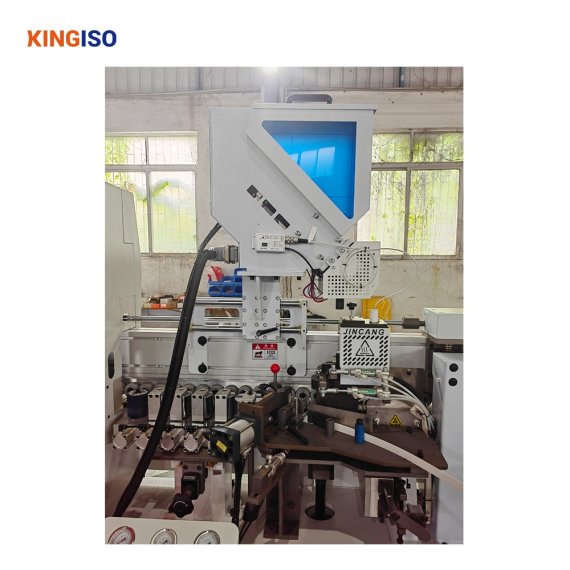

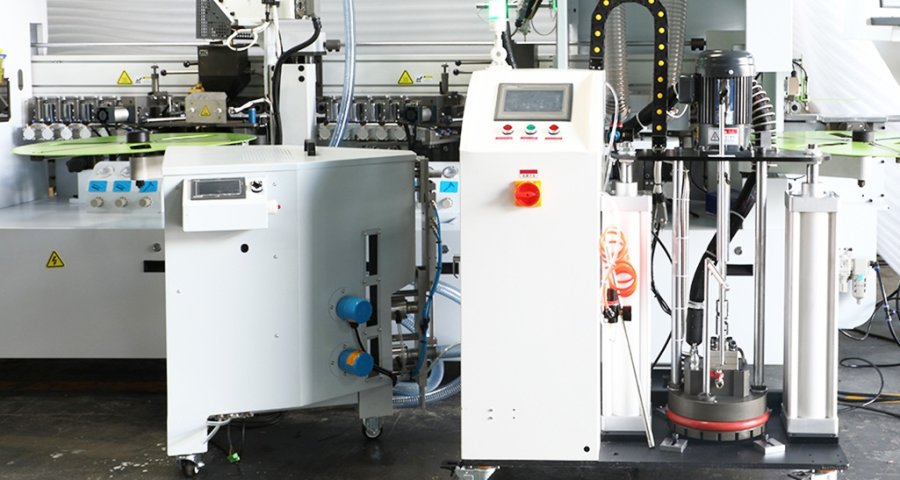

Optional PUR glue machine

PUR edge banding is waterproof, oil-proof and moisture-proof. Its strong adhesion makes the edge banding difficult to fall off. It is more than 10 times more sticky than ordinary edge banding machines.

Application

Automatic edge banding machine is applicable to edge banding and trimming of MDF, blockboard, solid wood board,particle board, polymer door board, plywood, etc. The edge banding is exquisite, smooth, good feel, and the sealing line is straight and smooth.
