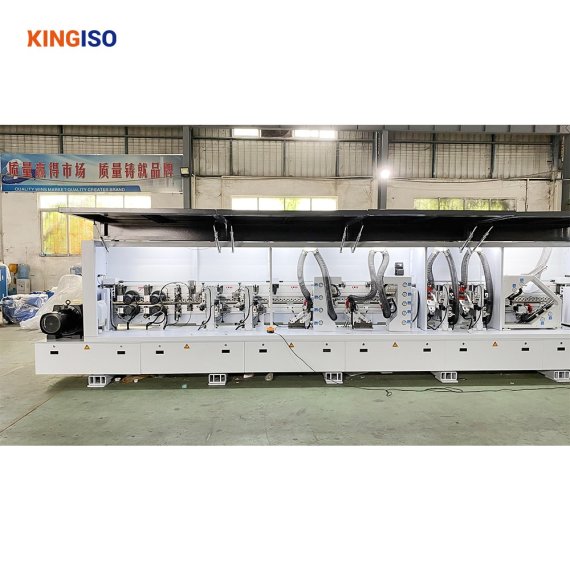

Separation - pre-milling - baking lamp - PUR two-color glue machine - 6-wheel pressing - baking lamp - baking lamp - glue pot + fast melt glue - 6-wheel pressing - fast double guide rail end trimming - rough trimming - fine trimming - four-knife high-speed tracking - scraping edge 1 - scraping edge 2 (reserved position) - flexible flat scraping - cleaning - polishing 1 - polishing 2 (6-wheel pressing + scraping device fully surrounded heavy-duty frame).
1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.
2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.
| Model | KI768JSG |
| Edge thickness | 0.4-3mm |
| Panel thickness | 9-60mm |
| Panel length | 50mm(without pre-milling;100mm(with pre-milling) |
| Panel width | ≥60mm |
| Working pressure | 0.7Mpa |
| Feeding speed | 26-28-32m/min |
| Total power | 32KW |
| Overall dimensions | 10300*1100*1750mm |

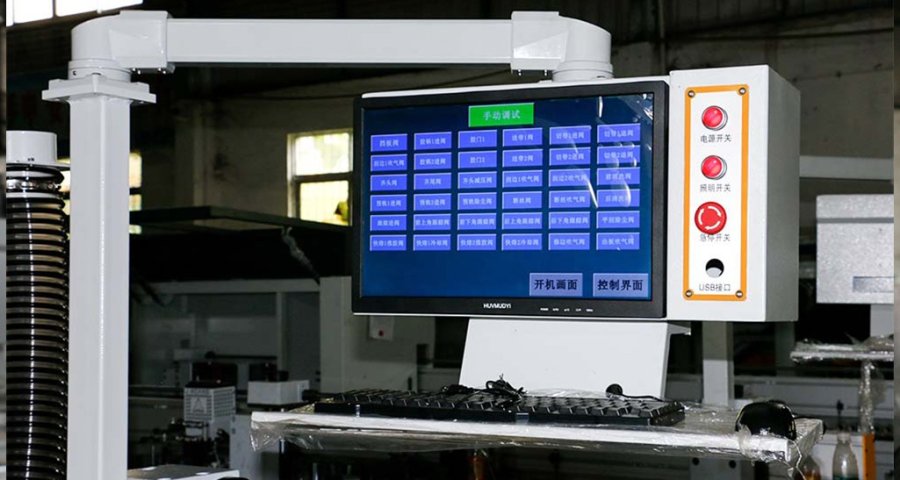

PLC control
Start and stop equipment, function selection, parameter setting, warning prompts, etc.

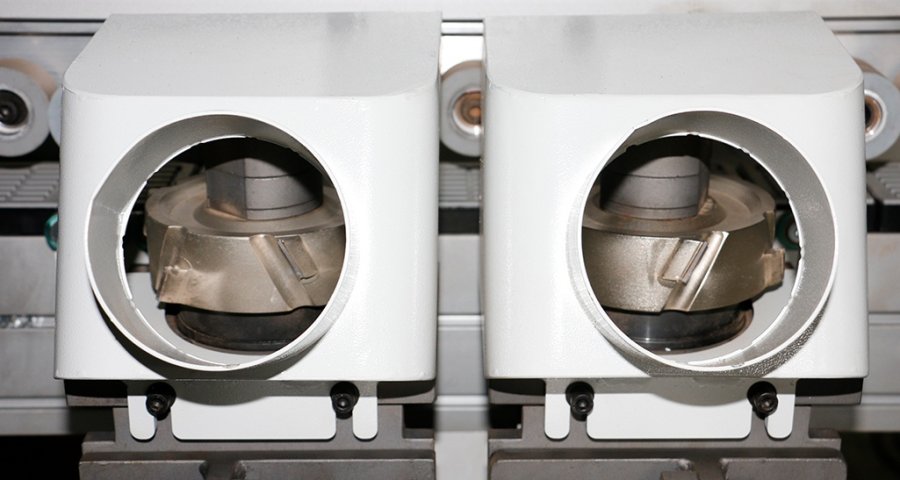

Pre-milling
Double pre-milling linear guide type pre-milling device.

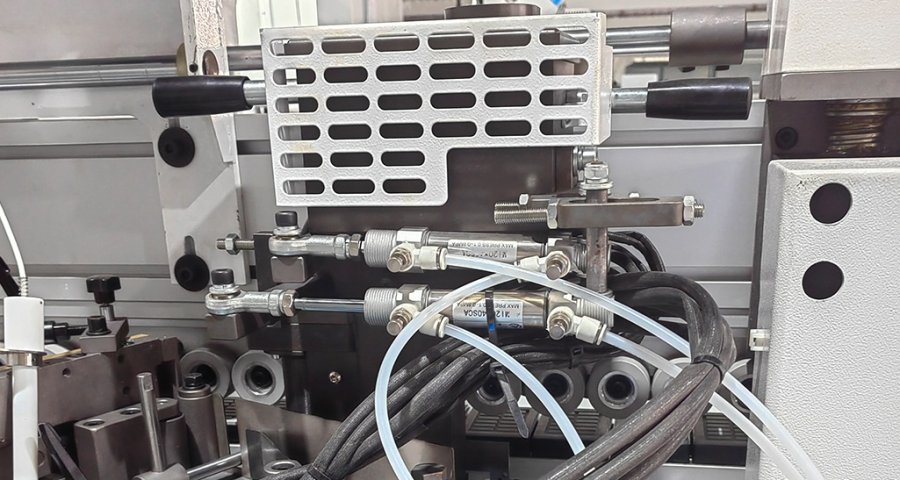

Glue pot
The glue pot melts glue quickly and heats up quickly. It has good edge sealing effect on PVC, high-gloss door panels and other panels, and can achieve edge sealing without glue lines.

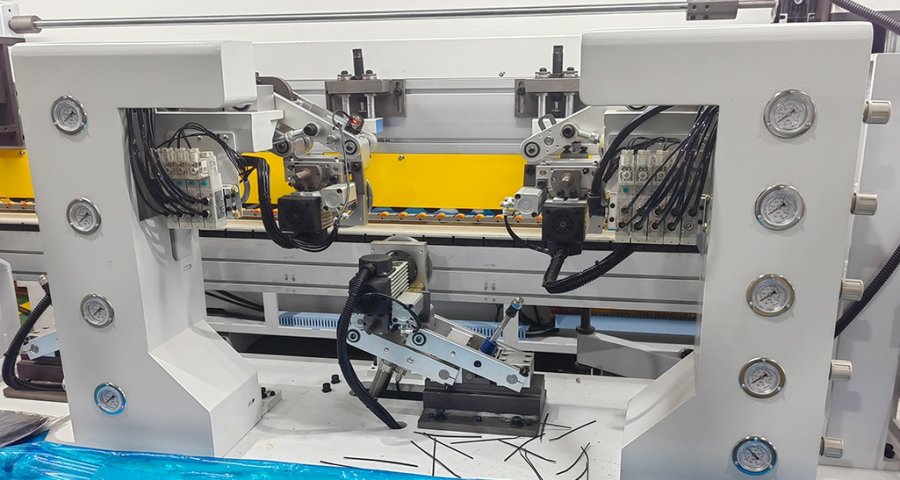

Four-head tracking
The four corners of the edge-sealed board are chamfered and rounded to make the four corners more refined and smooth after edge sealing.

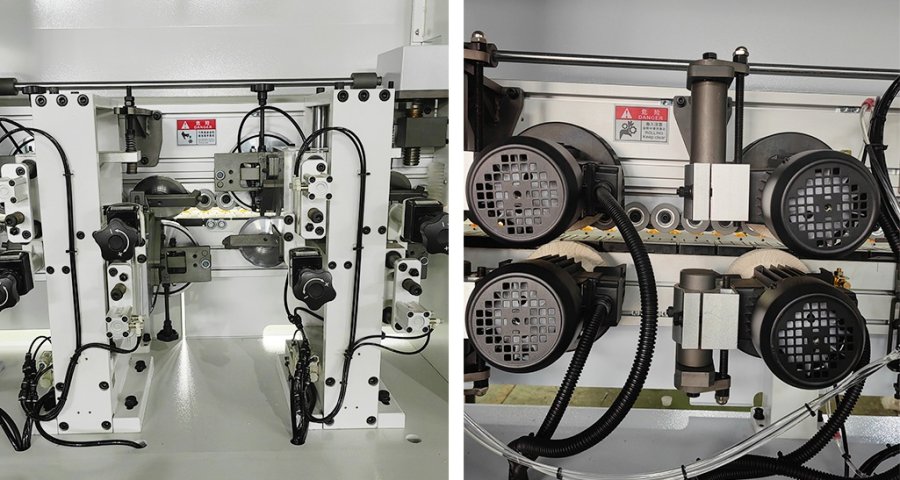

Double scraping/Double buffing
Scrape out the arc edge of angle α on the upper and lower edges of the edge band after trimming; polish the plate after edge banding to make the upper and lower sides of the edge band smoother.

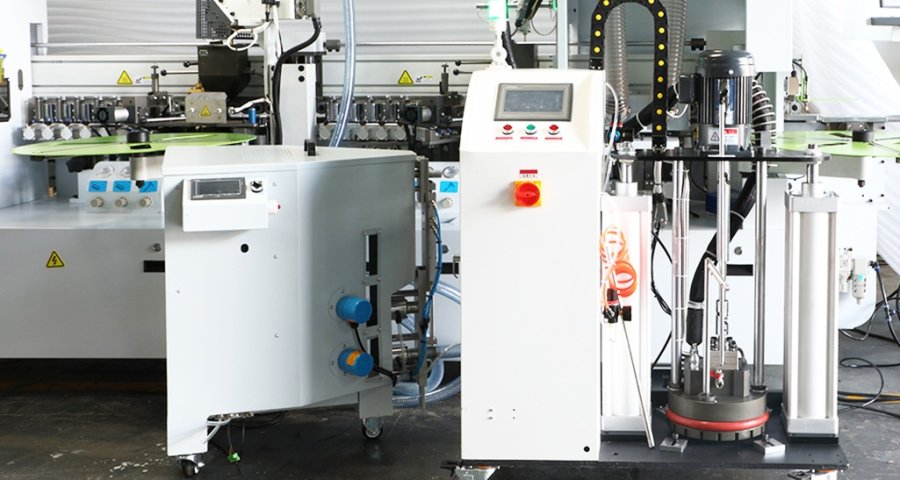

Optional PUR glue machine
PUR edge banding is waterproof, oil-proof and moisture-proof. Its strong adhesion makes the edge banding difficult to fall off. It is more than 10 times more sticky than ordinary edge banding machines.
Automatic edge banding machine is applicable to edge banding and trimming of MDF, blockboard, solid wood board,particle board, polymer door board, plywood, etc. The edge banding is exquisite, smooth, good feel, and the sealing line is straight and smooth.
