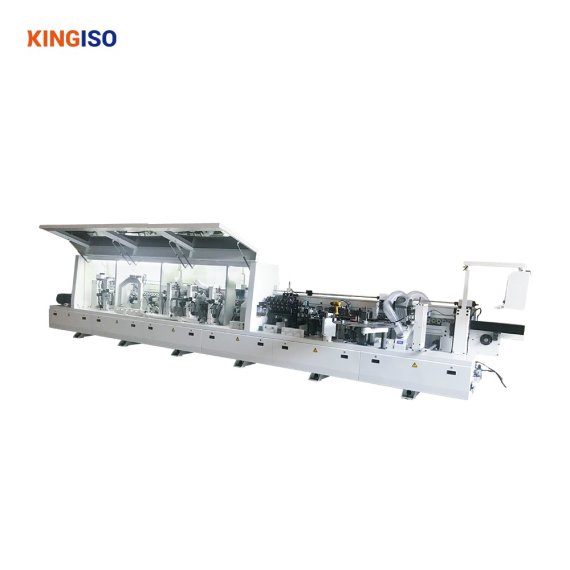

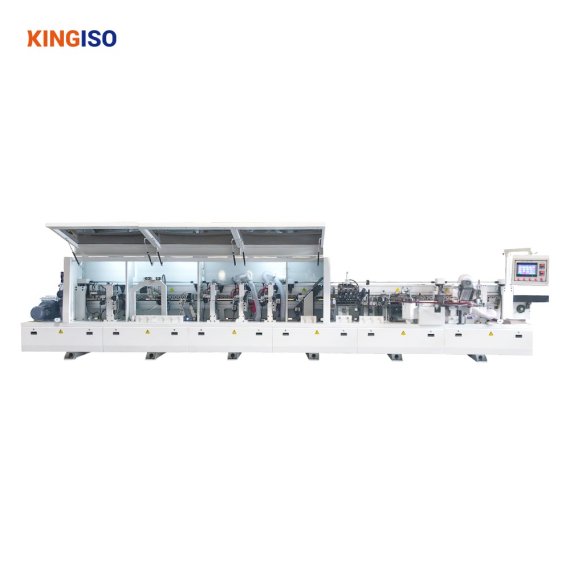

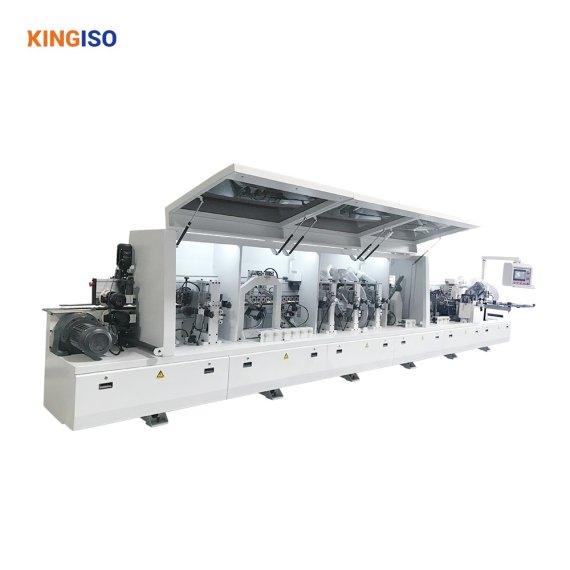

MFZ613 Edge Banding Machine

MFZ613 Edge Banding Machine

(sales of over 2000+)

Main functions: Pre-milling at straight surface-pre-milling at indination surface-gluing at straight surface-edge tape grooving-gluing at indination surface-end tape pressing snipping-end trimming-rough trimming-fine trimming-corner trimming-scraping-buffing

1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.

2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.

inquire Now Add To Inquiry Basket

PRODUCT DETAILS PRODUCT REVIEWS ONLINE MESSAGE RELATED PRODUCTS

Product Details

Product Description/Advantages

Parameter

Model	MFZ613
Edge band thickness	0.4-3mm
Panel thickness	10-60mm
Panel length	≥150mm
Panel width	≥60mm
Working pressure	0.6Mpa
Feeding speed	15-23m/min
Motor power	15kw
Overall dimensions	72008501700mm

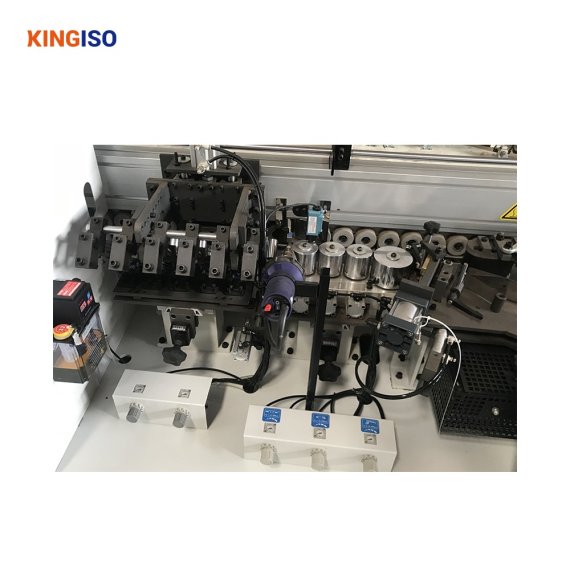

Product Detail Diagram

PLC control

PLC control screen, easy to operate, clear interface. Two modes, one-button switching: Partial bevel + Straight edge, Straight edge.

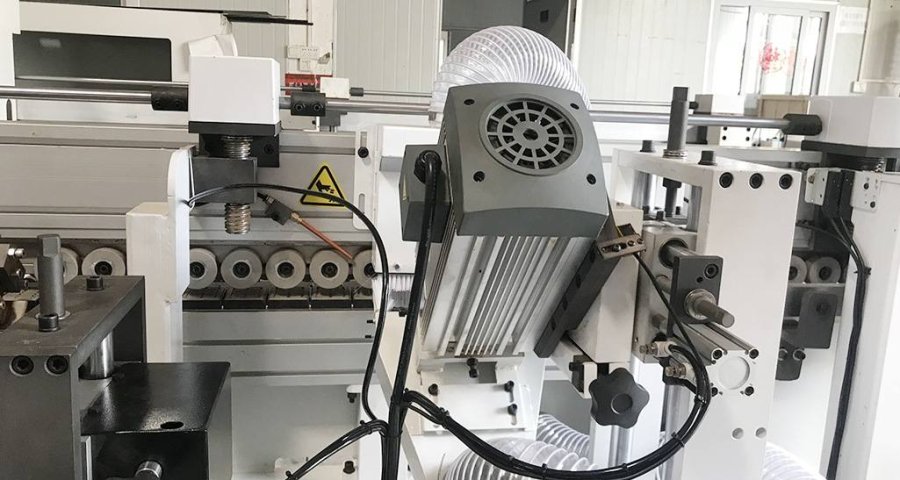

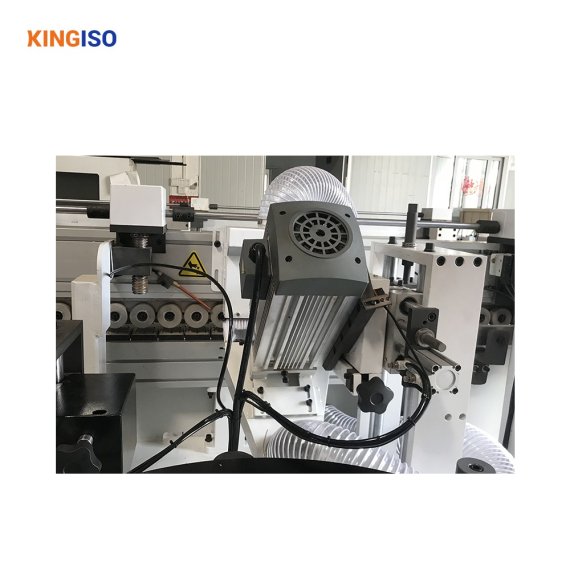

Bevel Forming

The fully automatic bevel straight edge banding machine has a 45 degree sawing unit, which crushes and cuts the beveled edges from straight edges.

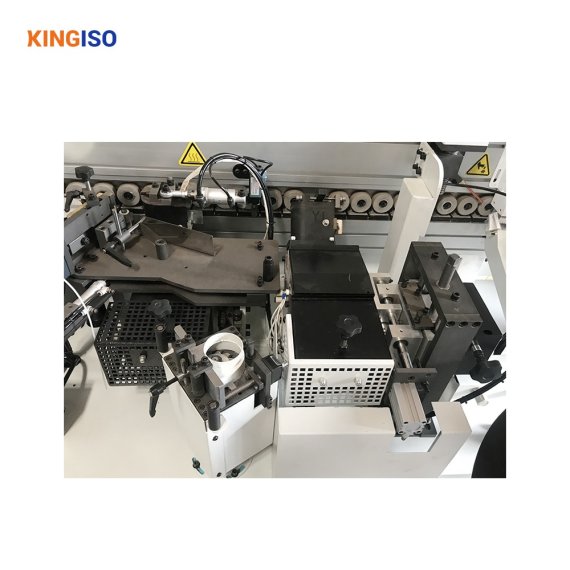

Bevel/straight edge gluing

Gluing the straight edge and bevel edge at the same time.

End trimming

The air pressure balance device is used to make the head more stable and easier to adjust. The gas circuit design is optimized, the noise at the head is reduced, and the use efficiency of the equipment is improved.

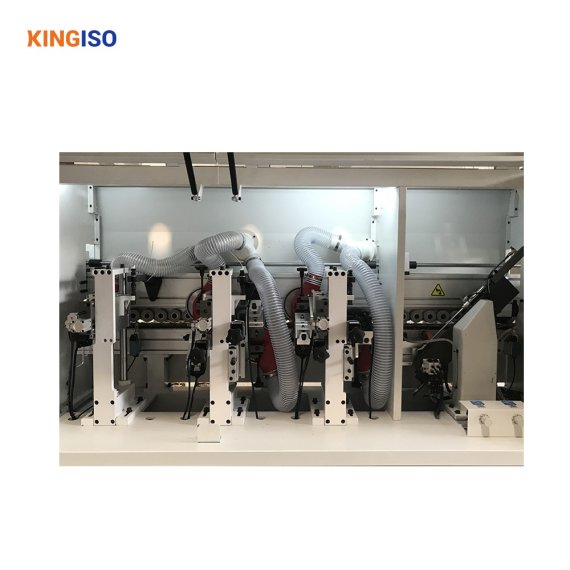

Rough trimming/Fine trimming

The rough trimming knife is a flat knife. It is used to trim the excess part when sealing the veneer. Fine trimming unit: A stable frame design is adopted to reduce the jitter caused by the tool.

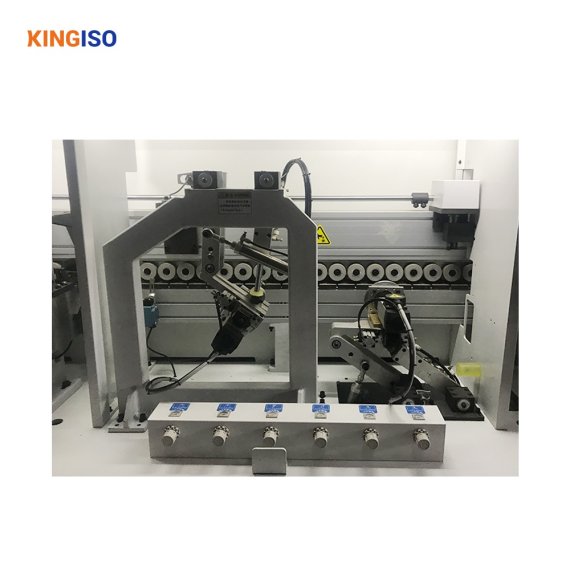

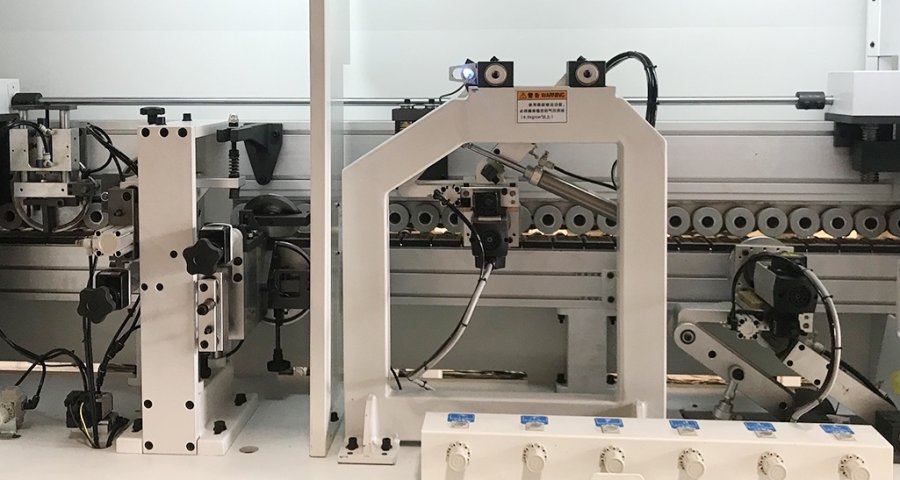

Corner trimming

The imitating edge trimming device makes the adjacent edges of the sealing edge fuller and more rounded.

Application

Automatic edge banding machine is applicable to edge banding and trimming of MDF, blockboard, solid wood board,particle board, polymer door board, plywood, etc. The edge banding is exquisite, smooth, good feel.
