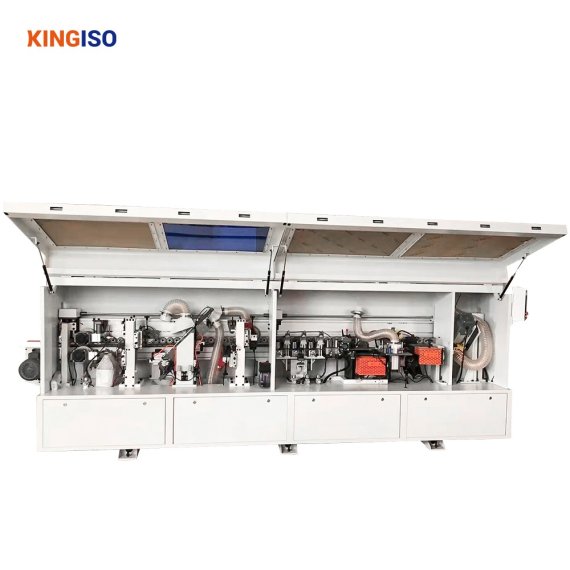

MFZ610A Edge Banding Machine

(sales of over 2000+)

Main functions: Pre-milling at straight surface-pre-milling at indination surface-gluing at straight surface-edge tape grooving-gluing at indination surface-end tape pressing snipping-end trimming-rough trimming-fine trimming-corner trimming-scraping-buffing

1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.

2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.

PRODUCT DETAILS PRODUCT REVIEWS ONLINE MESSAGE RELATED PRODUCTS

Product Details

Product Description/Advantages

Main functions: Pre-milling at straight surface-pre-milling at indination surface-gluing at straight surface-edge tape grooving-gluing at indination surface-end tape pressing snipping-end trimming-rough trimming-fine trimming-corner trimming-scraping-buffing

1. Improve work efficiency: The edge banding machine adopts automated operation and can quickly and accurately process the edge banding strip to the edge of the board, greatly improving work efficiency.

2. Precise edge banding effect. By using advanced glue spraying technology and laminating system, the edge banding machine can firmly stick the edge banding strip to the edge of the board, making the edge banding effect more beautiful and uniform.

Parameter

ModelMFZ610A
Overall dimensions4479*750*1421mm
Feed speed13m/min
Edge thicknessBevel 0.8-1.5mm
Panel lengthBevel ≥250mm
Panel thicknessBevel straight≤25mm;straight≥5mm;bevel angle 45°
Panel widthBevel ≥120mm
Distance between plates≥500mm
Electrical liftStandard configuration(single 0.37kw)
Working air pressure0.37Mpa
Weight1500kg
Total power12kw


Product Detail Diagram

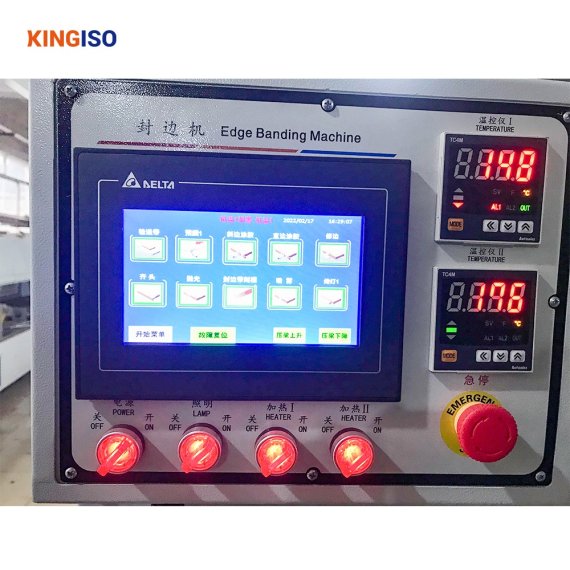

PLC control panel

PLC control panel

Easily control and maintain the machine. Problemsof the machine are visible in the panel.

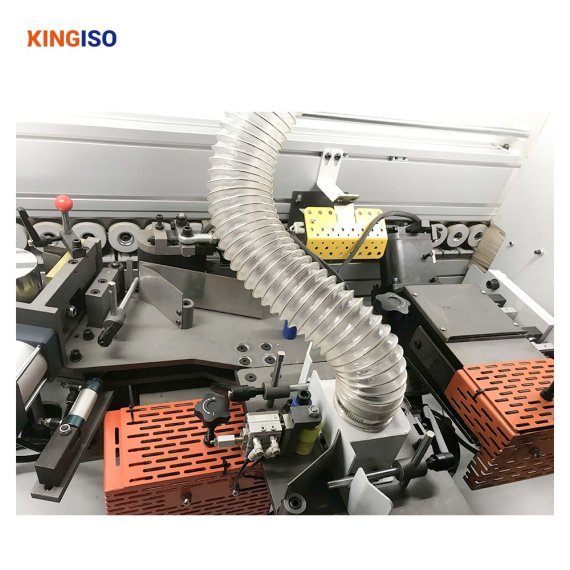

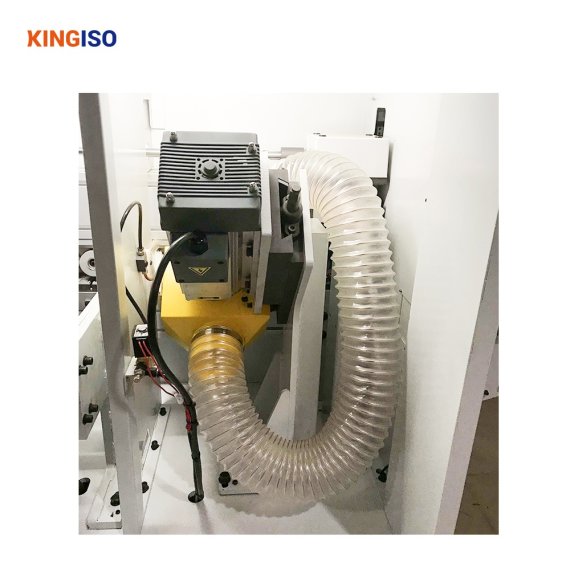

Bevel edge milling

Bevel edge milling

Crushing knife is composed of a foming knife and a saw blade, plate cleaning and blowing device. Independent dust hood.

Bevel and straight edge gluing

Bevel and straight edge gluing

Gluing the straight edge and bevel edge atthe same time.

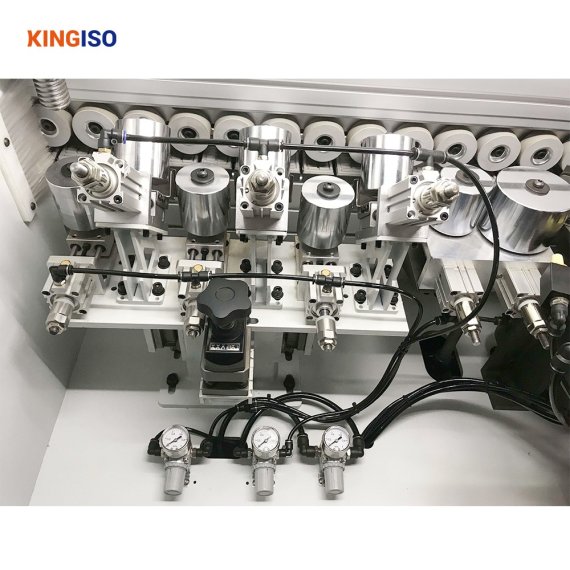

Straight and bevel press

Straight and bevel press

Pressing the straight edge and bevel edgeseparately to achieve the perfect effect of glue.

Scraping

Scraping

End cutting with impermeator for lubrication. lmprove parts useful lift, assure machine stability.

Cleaning device& Buffing

Cleaning device& Buffing

After spraying cleaning agent,polishing wheel is easier to clean excess glue, improve the surface finish of the plate.

Application

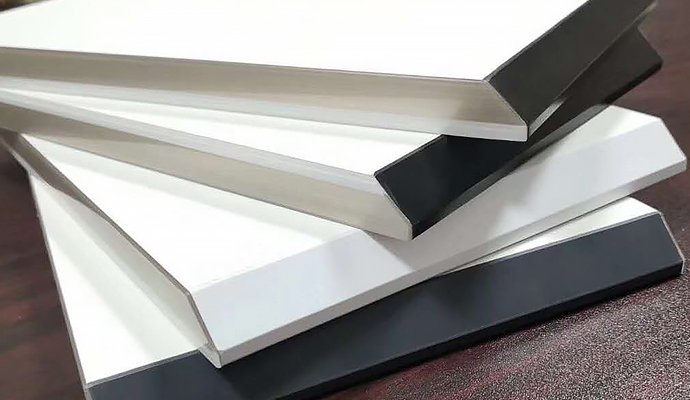

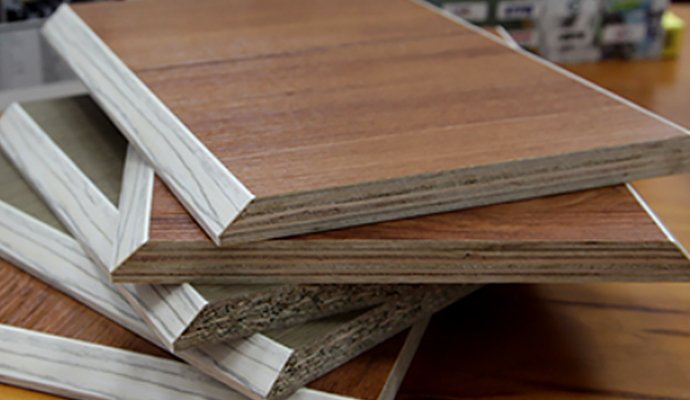

Automatic edge banding machine is applicable to linear edge banding and trimming of MDF, blockboard, solid wood board,particle board, polymer door board, plywood, etc.
