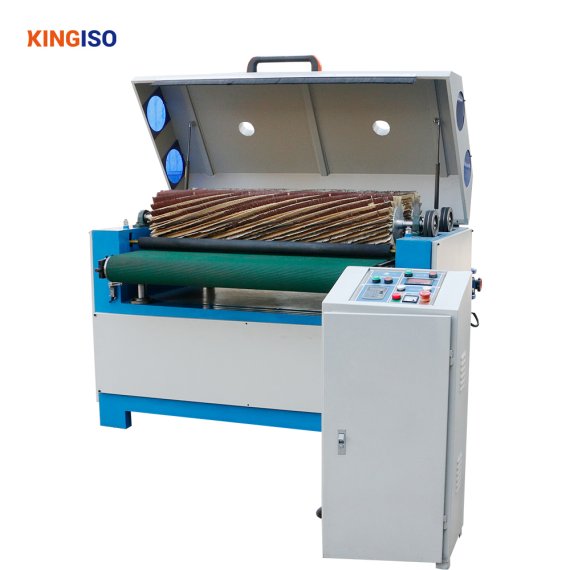

1.Former sand frame is adjustable steel rollers, simple operation, the fixed thick roller and sanding pad effectively combine with high precision sanding. 2.When breakdown happen, the device is powered down, transmission bed descend to protect the work piece safe.
1.Advanced balancing testing fixed thick rolls,steel rolls, pulleys, makes the machine run more smoothly.
2.Elevating convey or bed microcomputer control, the error is small, fast and flexible.
3.Light, electricity, gas integrated design and reliable operation.
| Model | KI1300R-R |
| Working width | 20-1300mm |
| Working thickness | 5-110mm |
| Working length | ≥500ｍｍ |
| Adjustment of roller speed | Frequency conversion |
| Speed of conveyor belt | 5-20m/min |
| Roller diameter | 280mm |
| Main motor | 2.2kw |
| Conveyor motor | 1.1kw |
| Total motor power | 5.87kw |
| Packing size | 1500*1200*1500mm |
| Net weight/Gross weight | 650/700kg |
