1.Former sand frame is adjustable steel rollers, simple operation, the fixed thick roller and sanding pad effectively combine with high precision sanding. 2.When breakdown happen, the device is powered down, transmission bed descend to protect the work piece safe.
1.Advanced balancing testing fixed thick rolls,steel rolls, pulleys, makes the machine run more smoothly.
2.Elevating convey or bed microcomputer control, the error is small, fast and flexible.
3.Light, electricity, gas integrated design and reliable operation.
| Model | KI1300R-R-R-R |
| Maximum processing width | 10-1300mm |
| Minimum processing length | ≥300ｍｍ |
| Processing thickness | 10-100mm |
| Polishing roller speed | Frequency conversion speed regulation |

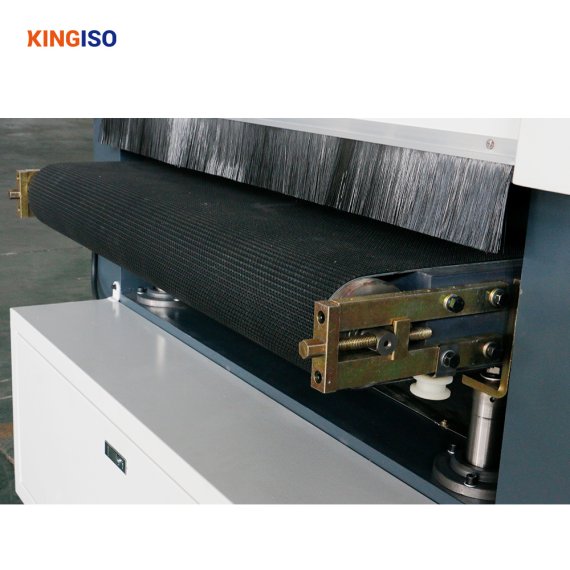

| Conveyor belt speed | 0-16m/min(frequency conversion speed) |
| Total power | 6.5kw |
| Dimensions | 2200*1900*1750mm |
| Weight | 1100kg |
| Polishing roller motor power | 2.2kw*2 |
| Brush plate motor power | 1.5kw*1 |

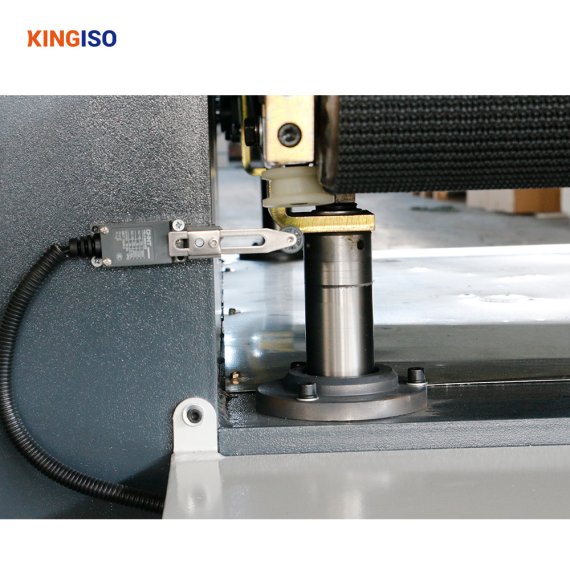

| Workbence lifting | 0.55kw |

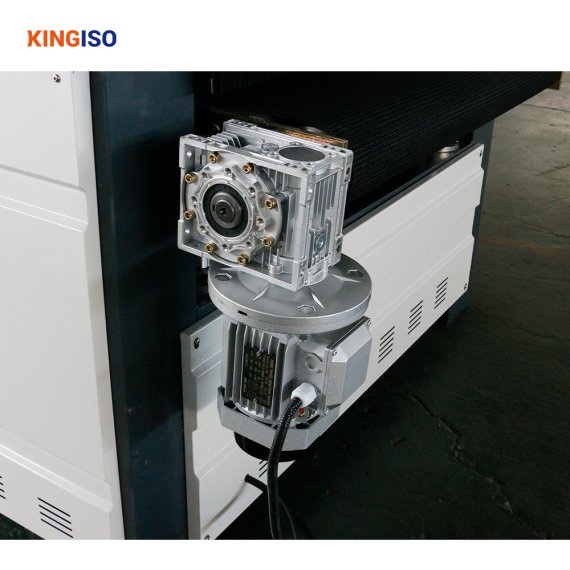

| Conveyor motor | 1.1kw |

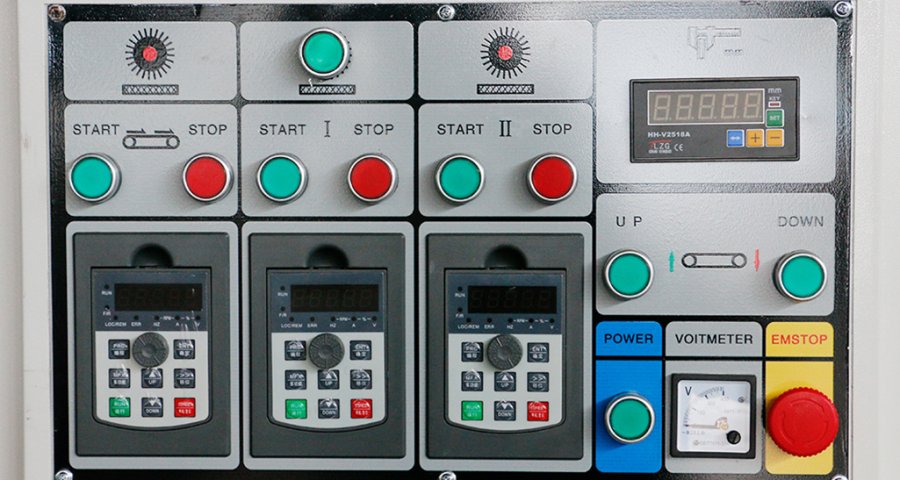

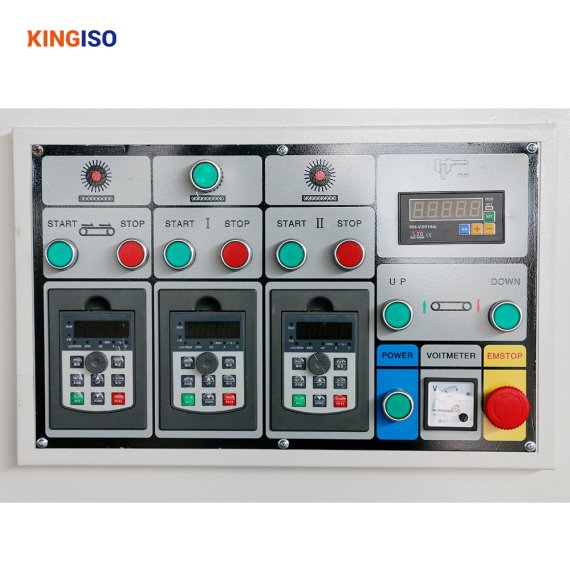

Control Panel
Clear operation buttons and independent rolleroperation

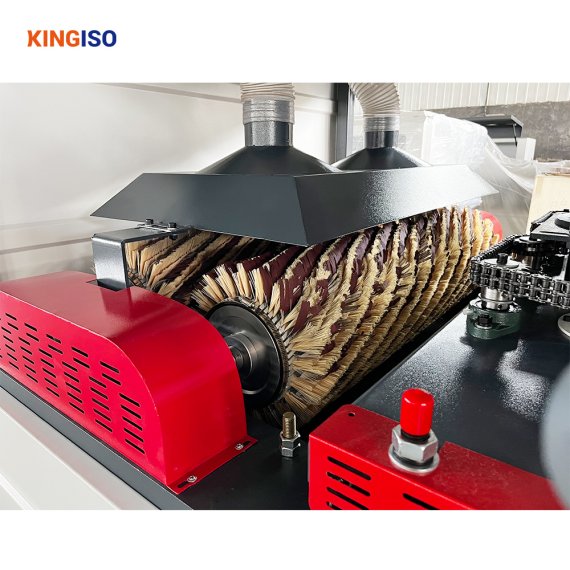

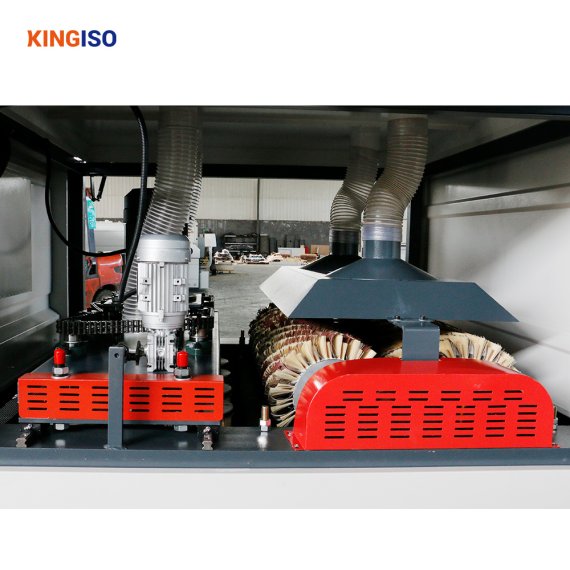

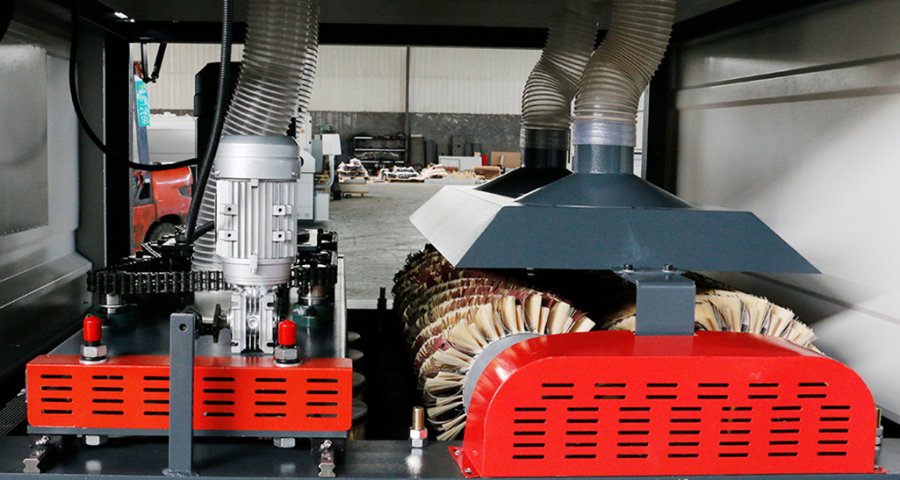

Polishing Unit
Disc+ Straight roller multiple grinding

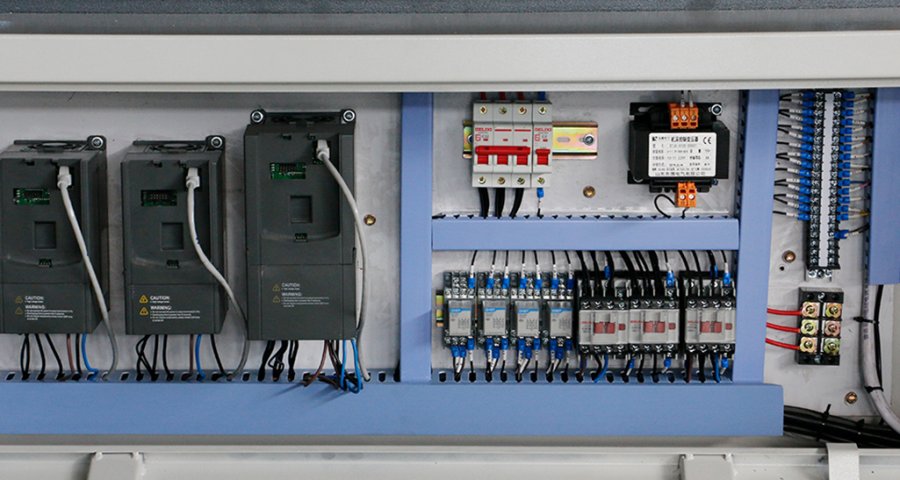

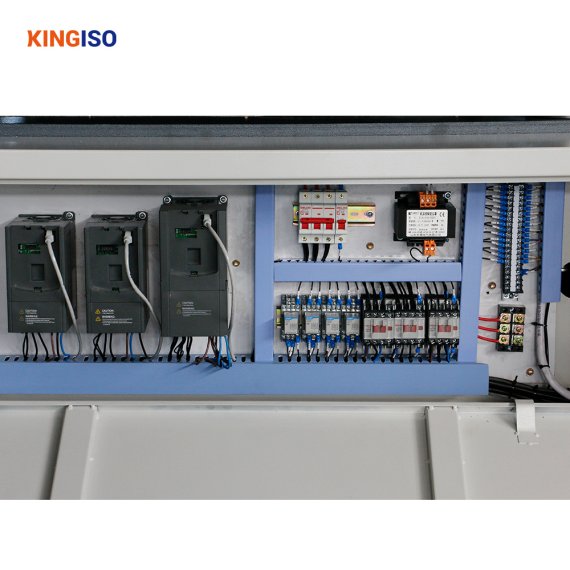

Quality Appliances
Use high-quality brand accessories to greatly improve machine efficiency

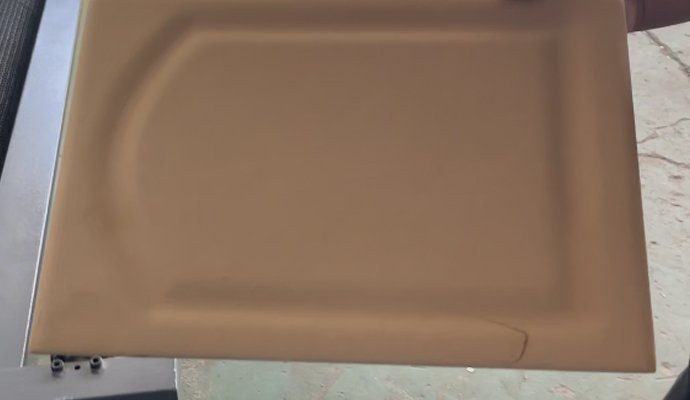

This machine is mainly used for surface polishing and fixed thickness sanding, suitable for wood panels fooring, furniture,handicraftswood products and other products.
Tell us about your project so we can help you find the solution that fts your needs!
