| Model | MJ45XD |
| Dimension of sliding table | 3200*435mm |
| Maximum cutting length | 1200mm |
| Main saw blade diameter | 300mm |
| Auxiliary saw blade diameter | 120mm |
| Saw blade tilt angle | 90°-45° |
| Main saw cutting height | 75-80mm |
| Main saw speed | 4000/6000rpm |
| Spindle diameter | 30mm |
| Scribing saw | 0-45° |
| Main motor power | 5.5kw |
| Auxiliary motor power | 1.1kw |
| Saw blade speed | 8000r/min |
| Scribing saw spindle | 20mm |
| Weight | 850kg |

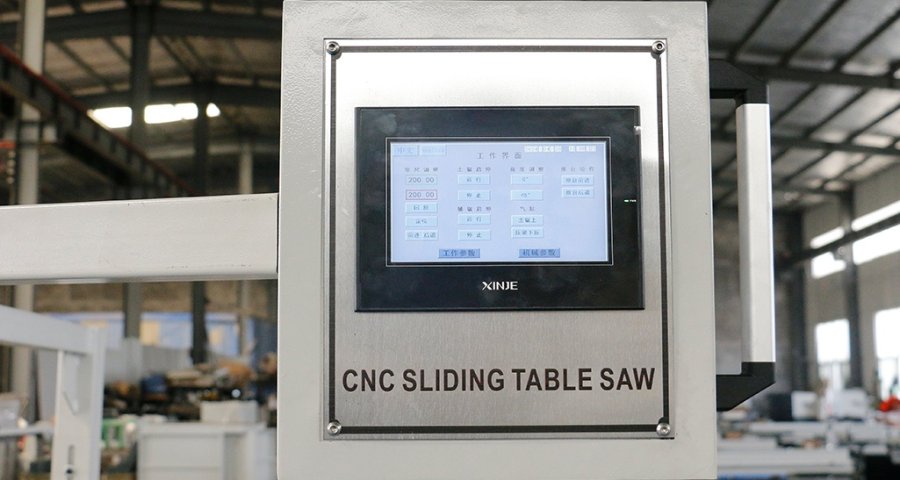

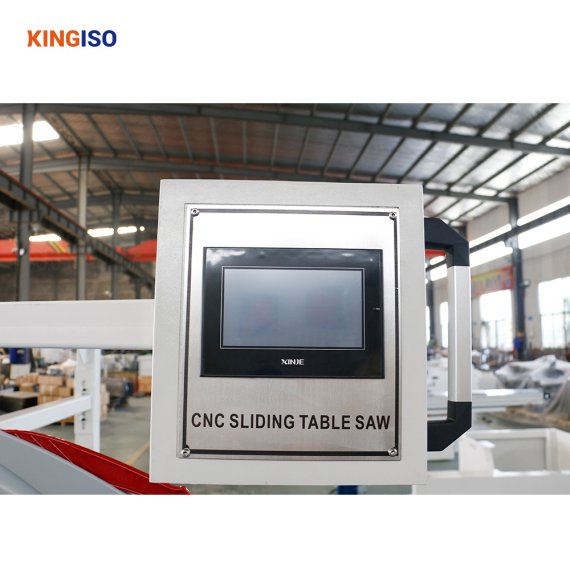

PLC control
Easy to operation. The parameters such as saw blade tilt or cutting width dimension can be directly input.

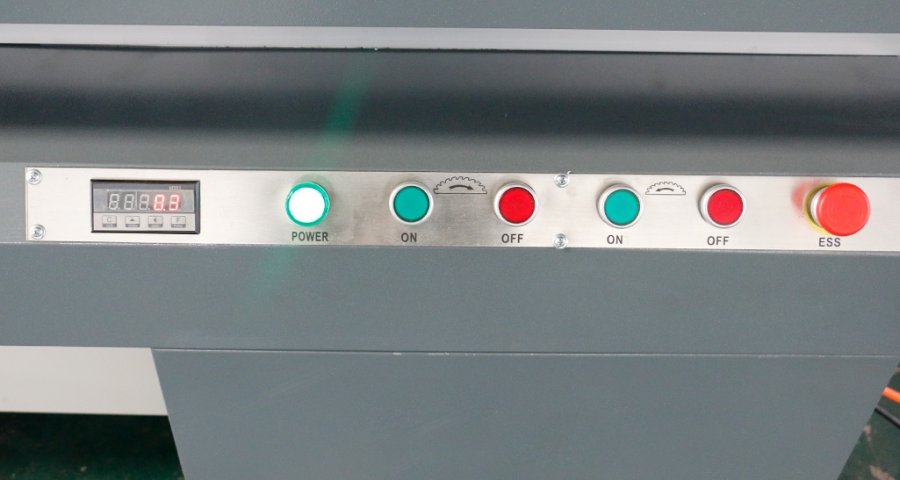

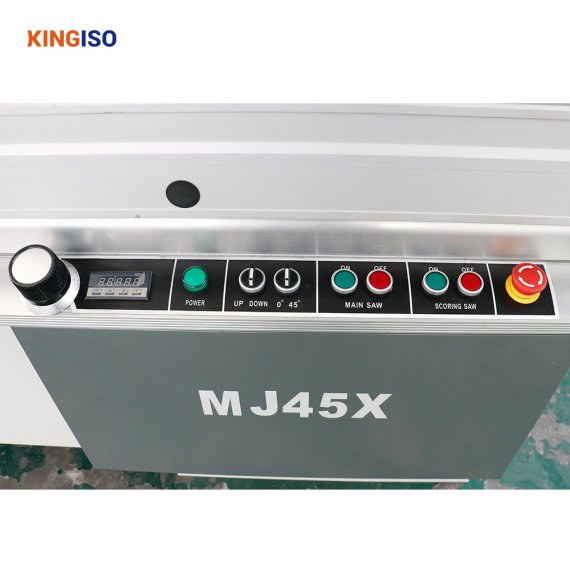

Operation switch
Electric lift; Electric tilt; Angle with digital display.

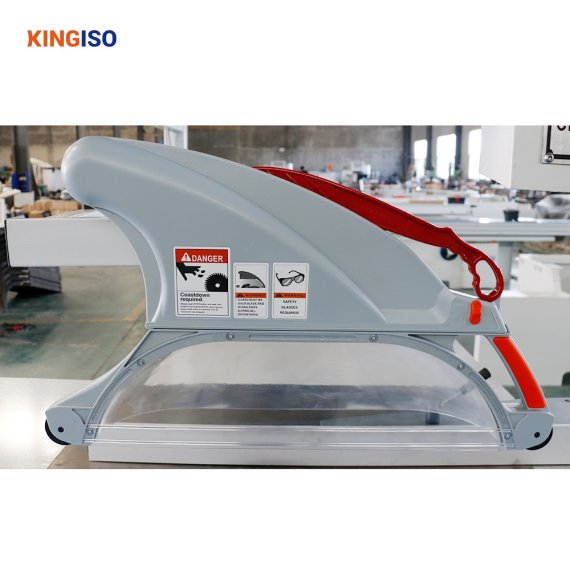

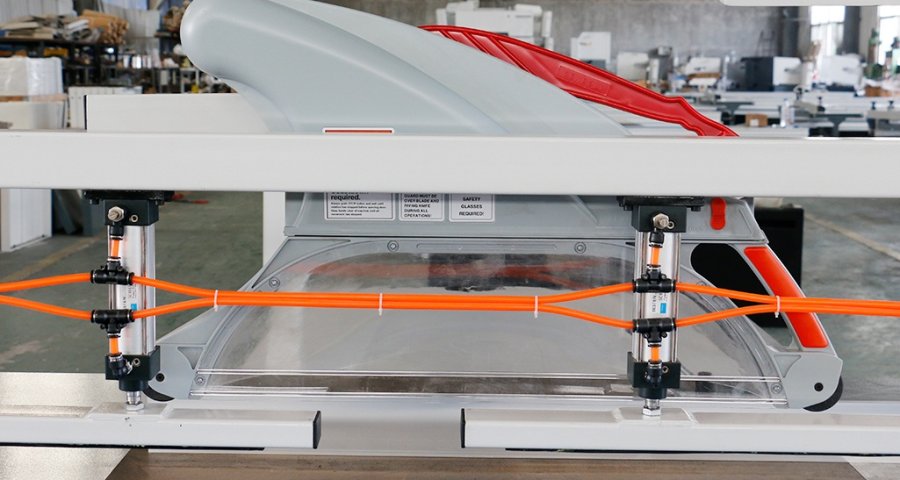

European dust cover

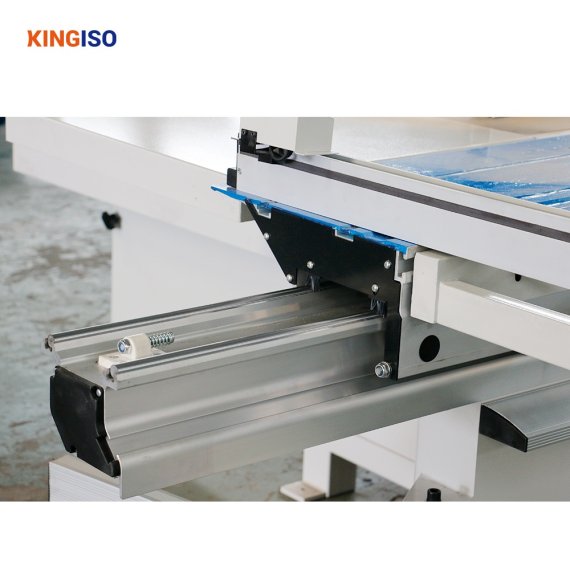

Movable table guide track is round bar structure. Euro-type sliding table, more stable.

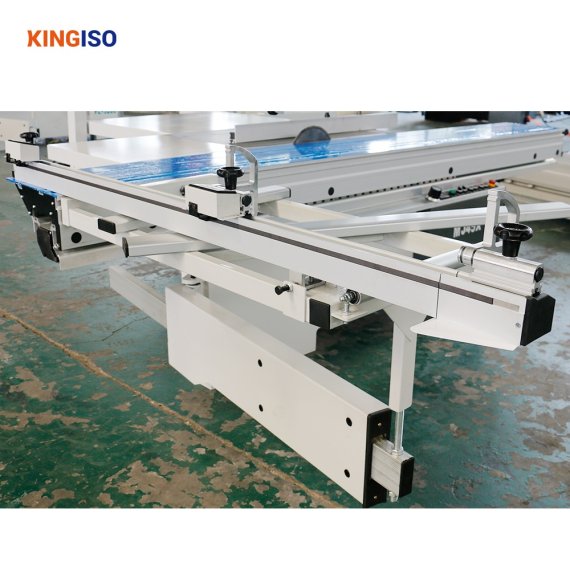

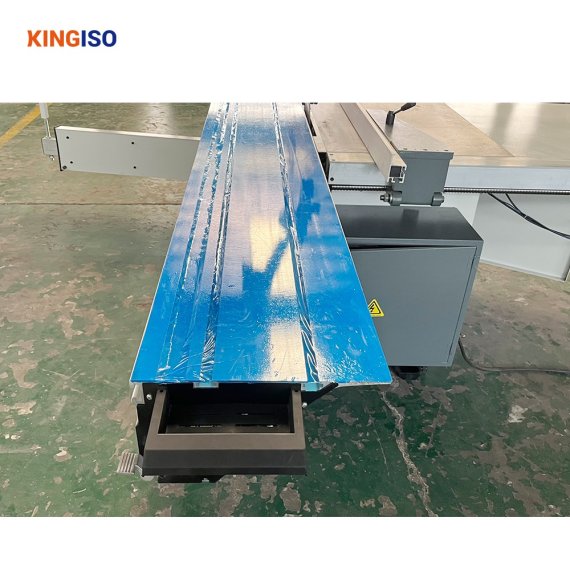

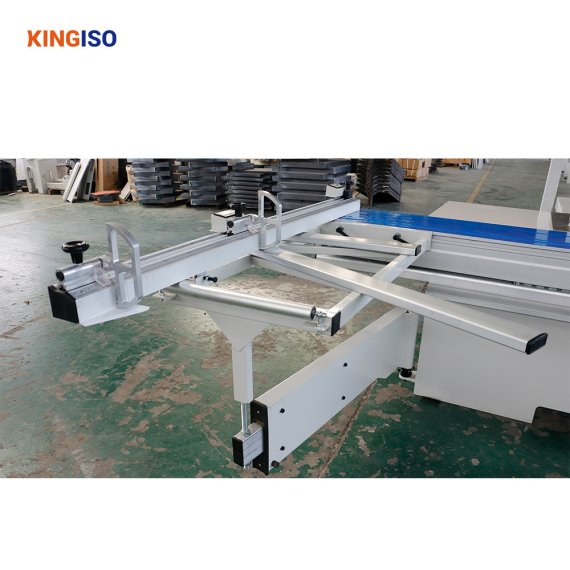

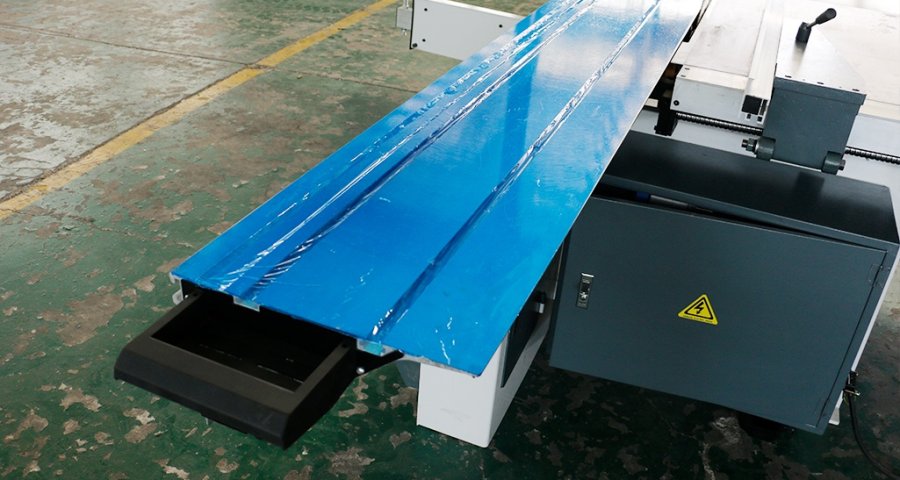

Big sliding table
Sliding table saw:3200*435mm.

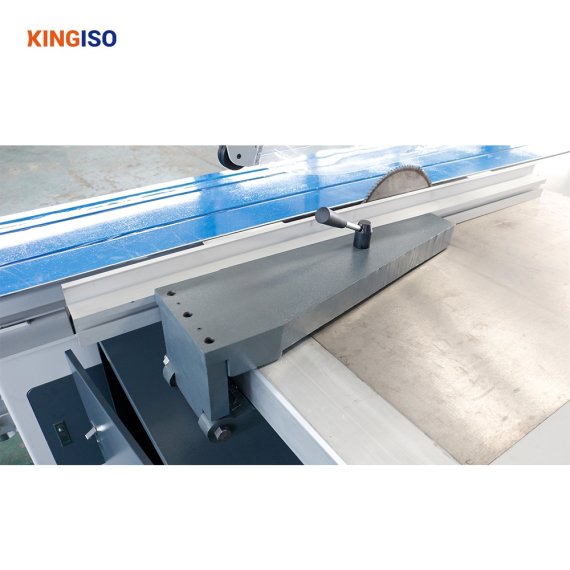

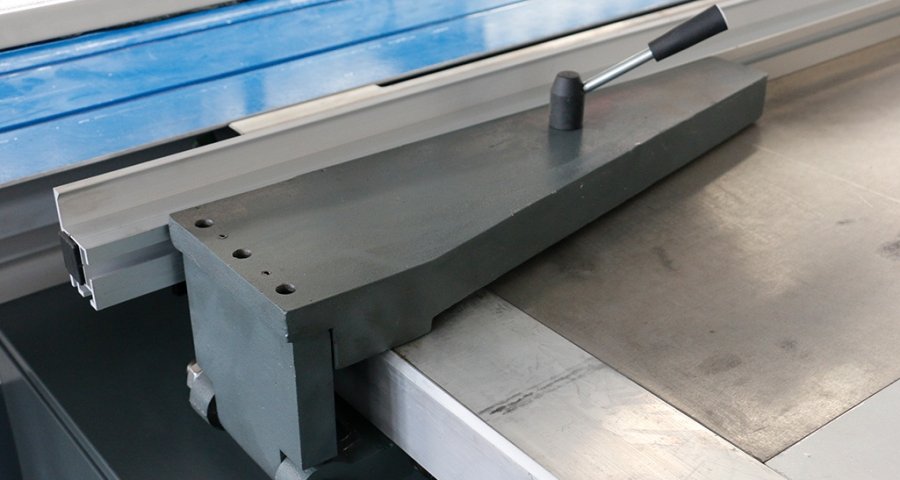

Electrically dependent ruler
Electrically dependent ruler, can setting the width and adjust the size through the PLC touch screen.

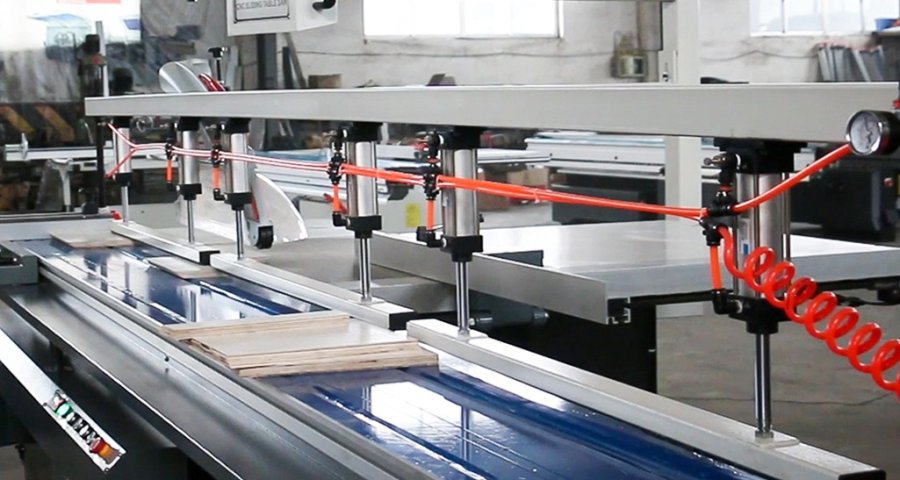

Pneumatic pressing device
Pneumatic pressing device,the pneumatic pressing device presses the board and automatically moves and cuts the board.
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, solid panels, PVC panels, organic glass plates, Aluminum plate, etc..
