| Model | KI400K |
| Cutting length | 3200mm |
| Maximum cutting width | 1250mm |
| Main saw blade diameter | 400mm |
| Auxiliary saw blade diameter | 120mm |
| Saw blade tilted | 90°-45° |
| Main saw cutting height | 110mm |
| Main saw speed | 4000/6000rpm |
| Main saw diameter | 30mm |
| Scribing saw | 0-45° |
| Main motor | 5.5kw |
| Auxiliary motor | 1.1kw |
| Saw blade speed | 8000r/min |
| Scribing saw spindle | 20mm |
| Master axis | 40*1500mm |
| Weight | 800kg |

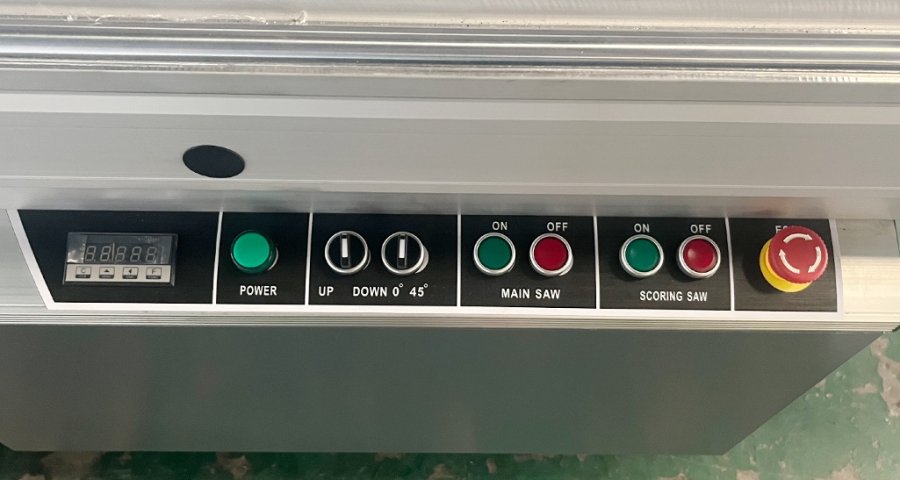

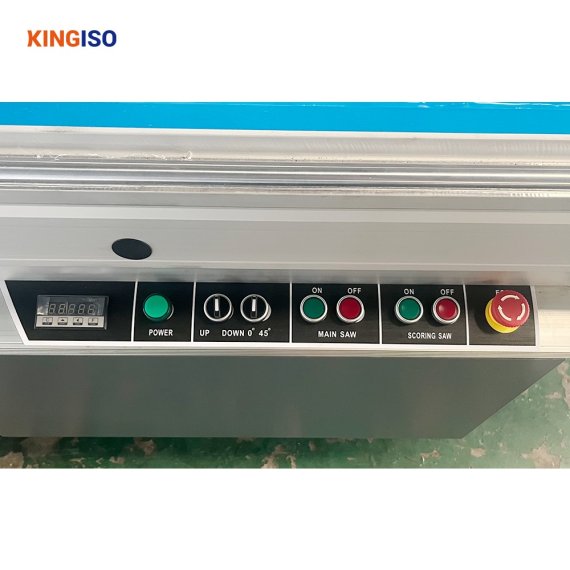

Operation switch
Electric lift; Electric tilt; Angle with digital display.

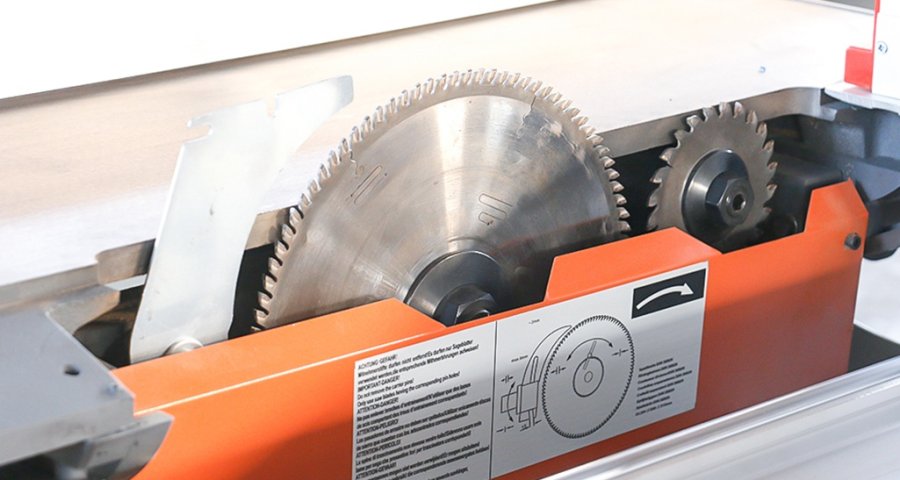

Double saw blade
Double saw blade, main saw blade+scroring saw blade, better cutting effect.

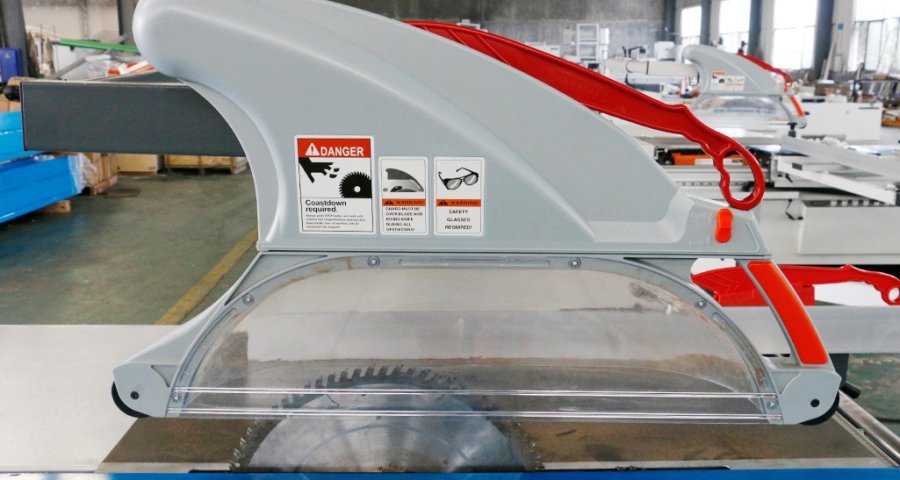

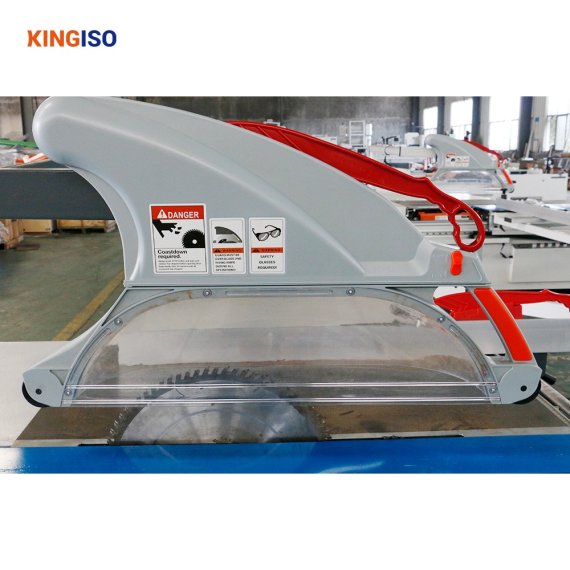

European dust cover(optional).
Movable table guide track is round bar structure. Euro-type sliding table, more stable.

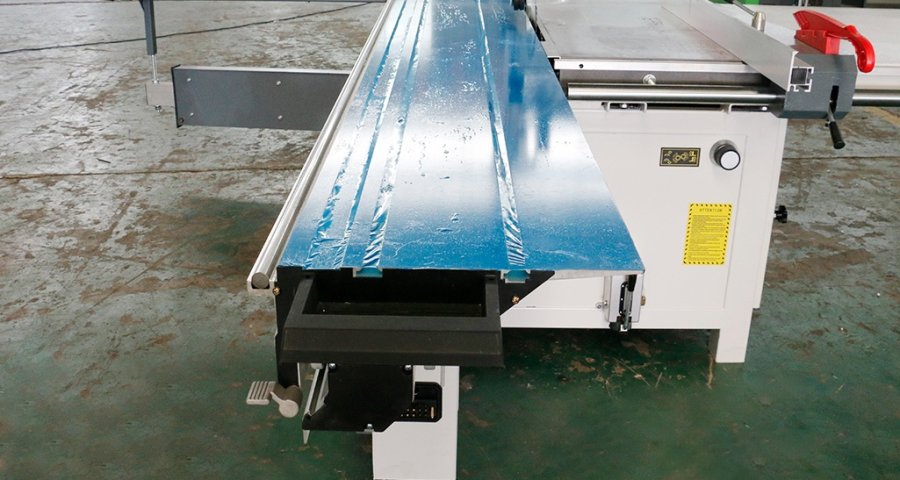

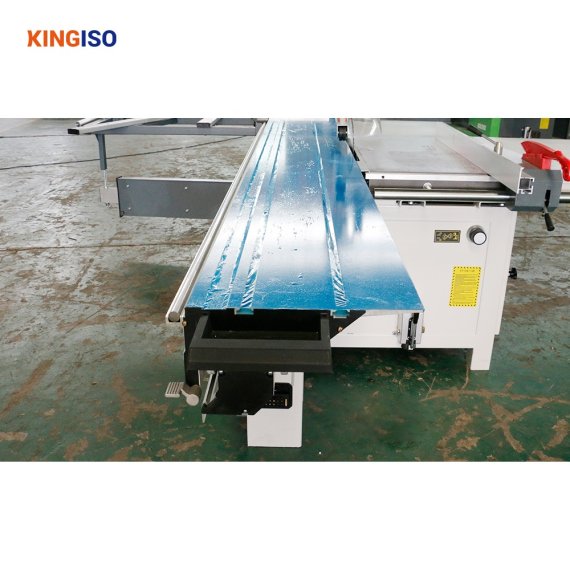

Big sliding table
Sliding table saw:3200*435mm.

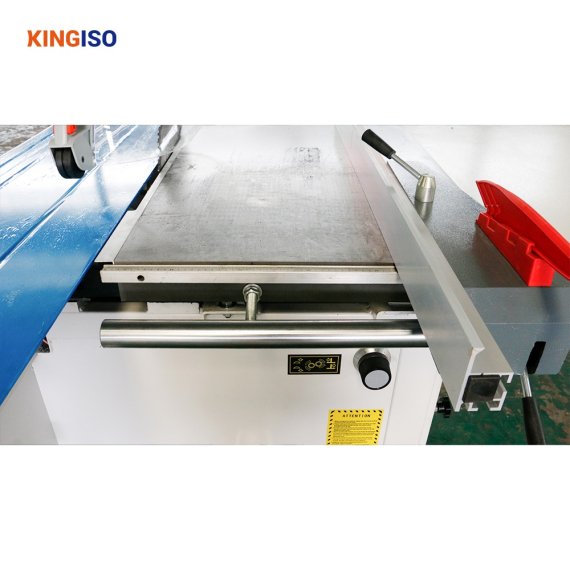

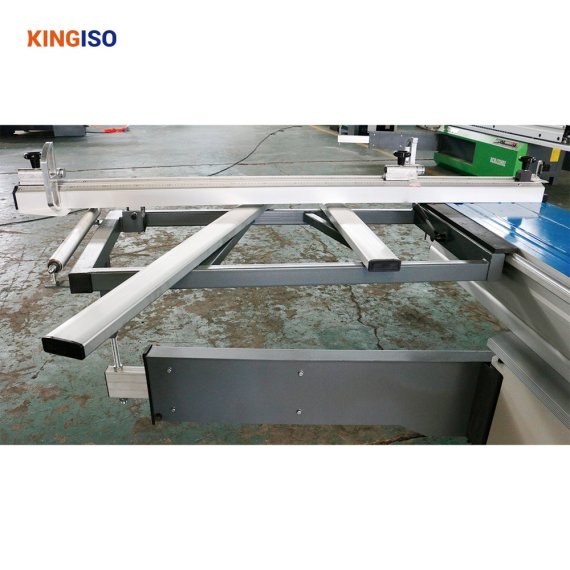

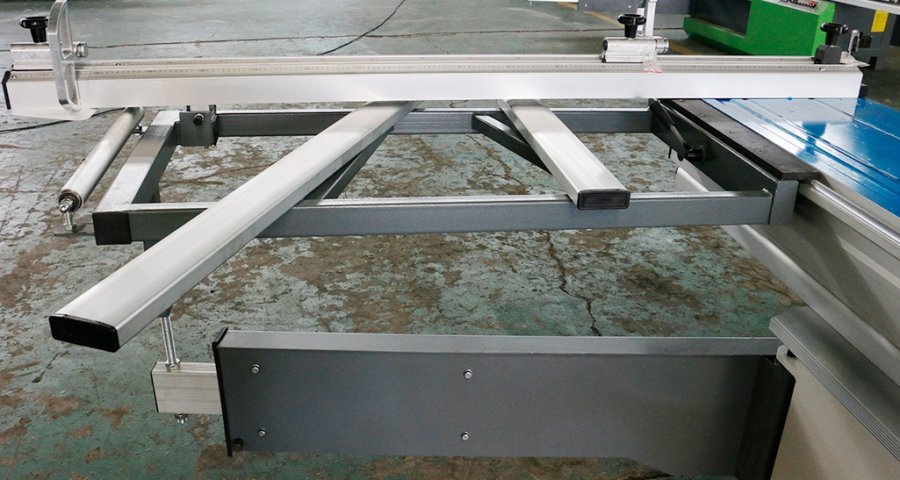

Guiding rule
Standard with large scale, stable without displacement, sawing more accurate.

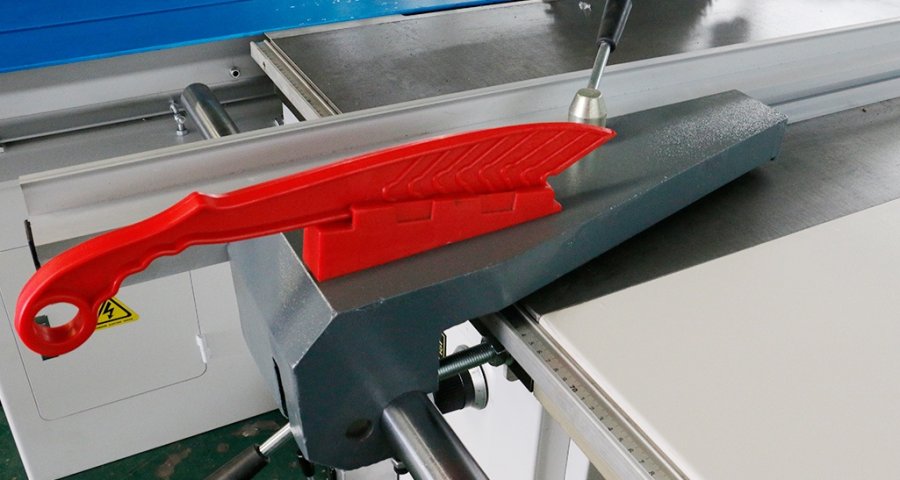

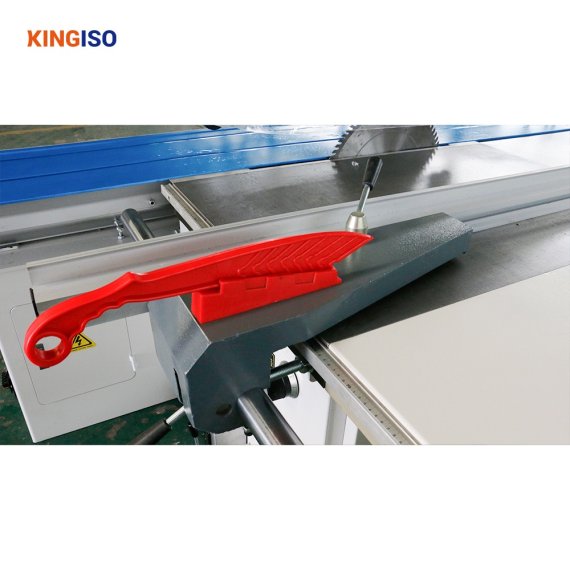

Pusher knife
It adopts well-known accessory brands and is solid and durable.

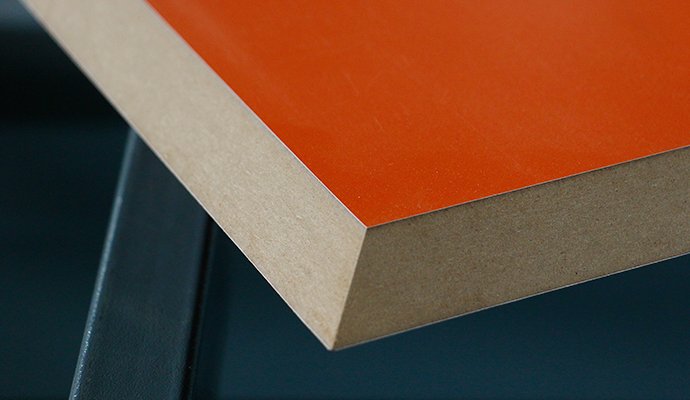

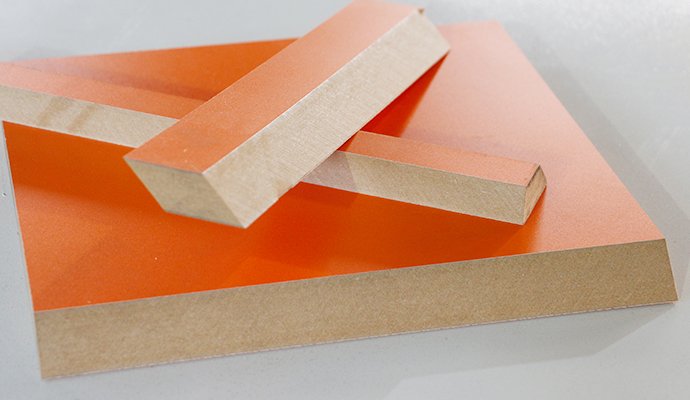

Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, solid panels, PVC panels, organic glass plates, Aluminum plate, etc..
