| Model | KI-B45X |
| Table size | 3200*375mm |
| Cutting length | 2950mm |
| Maximum cutting width | 1100mm |
| Maximum cutting thickness | 200mm |
| Main saw blade diameter | 400-600mm |
| Saw blade tilt | 90°-- 45° |
| Main saw speed | 2000/4000rpm |
| Spindle diameter | 30mm |
| Main motor | 7.5kw |
| Saw blade speed | 2000-3000r/min |
| Weight | 700kg |

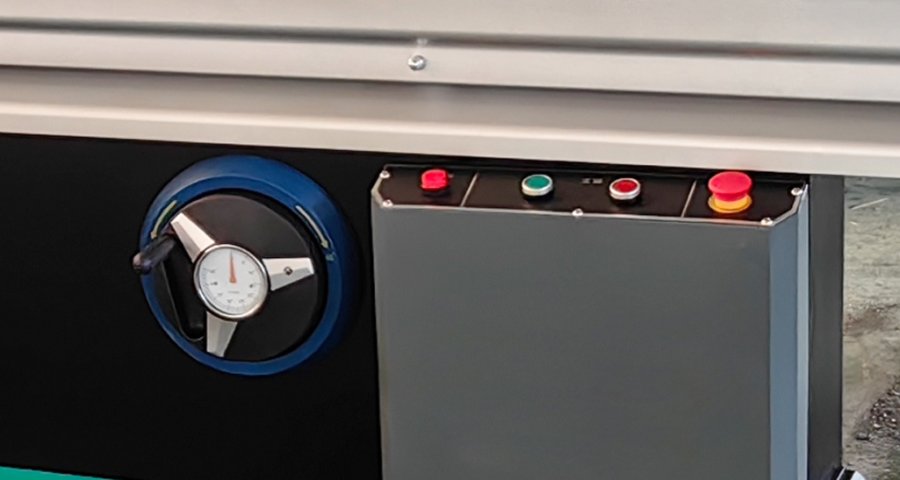

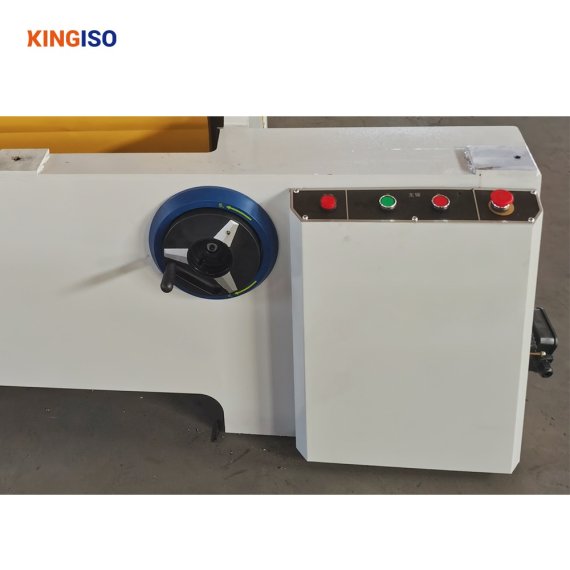

Operation switch
Manual tilt; Can cut 45°angle.

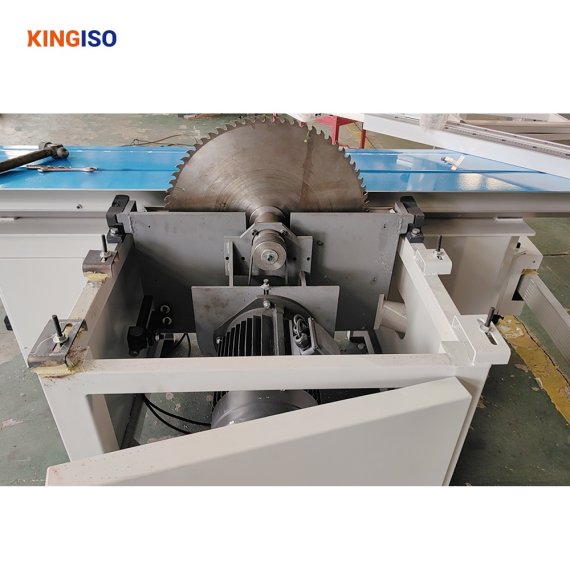

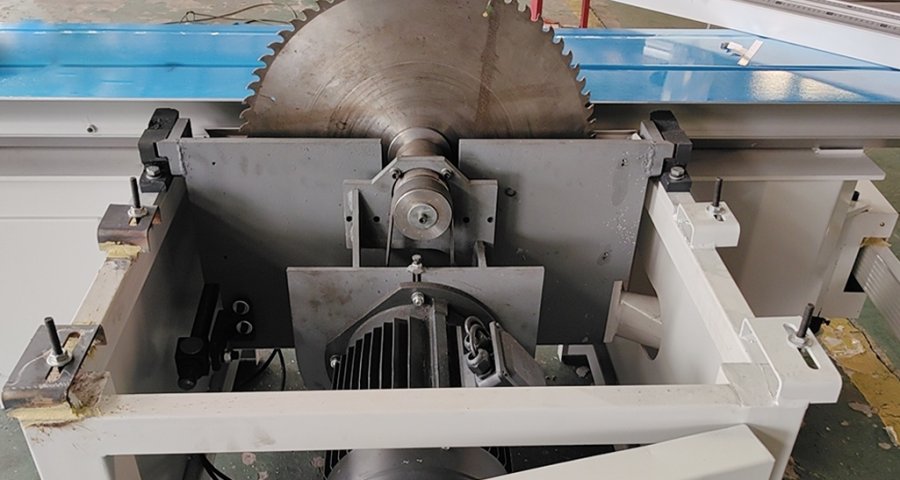

Motor power
The resistance of cutting solid wood is large, and the motor is increased to 7.5KW.

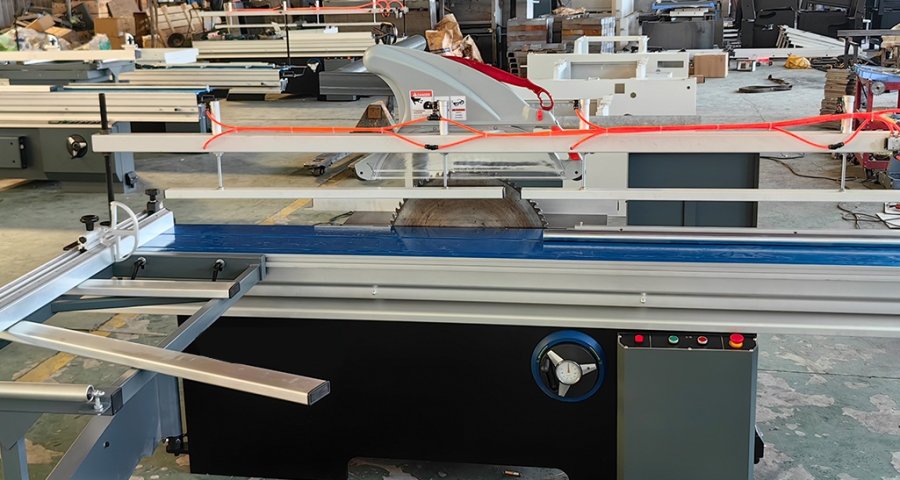

Pneumatic presser
Equipped with a set of pneumatic pressers, which are used to press the material during cutting, which is efficient, stable and safe.

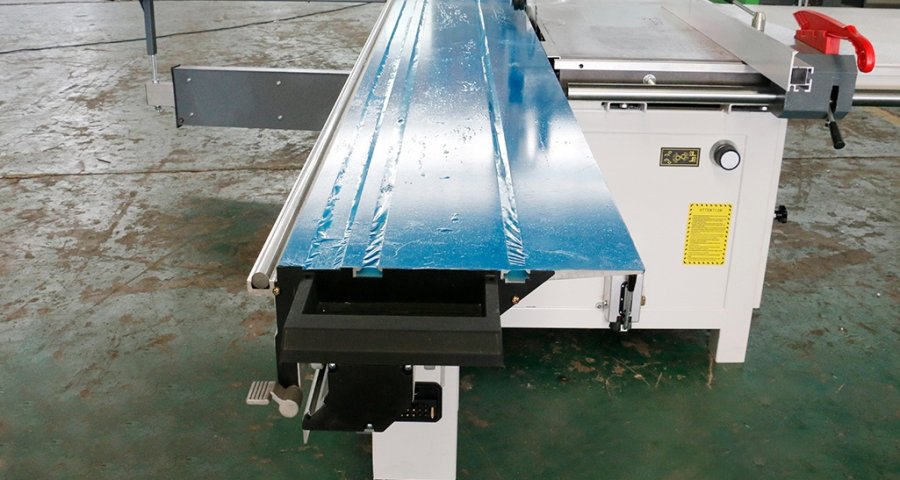

Big sliding table
Sliding table saw:3200*375mm.

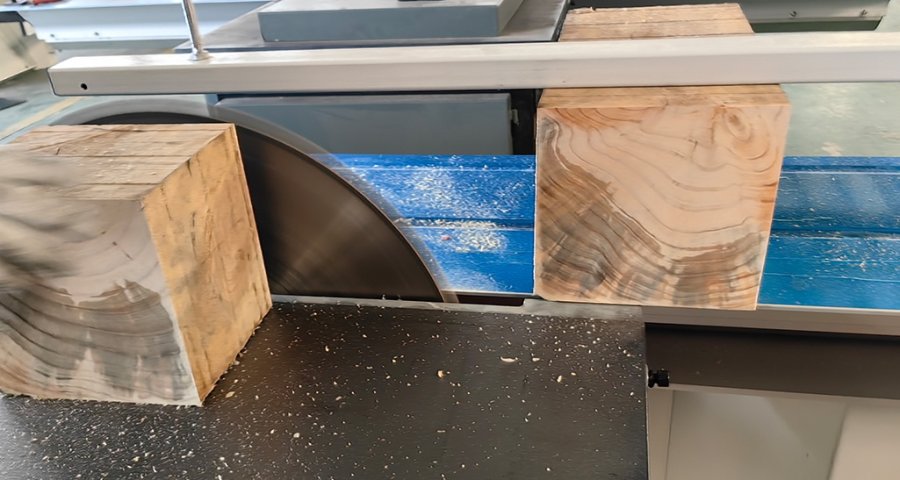

Saw blade
Saw blade diameter can be used: 400mm/500mm/600mm/650mm.

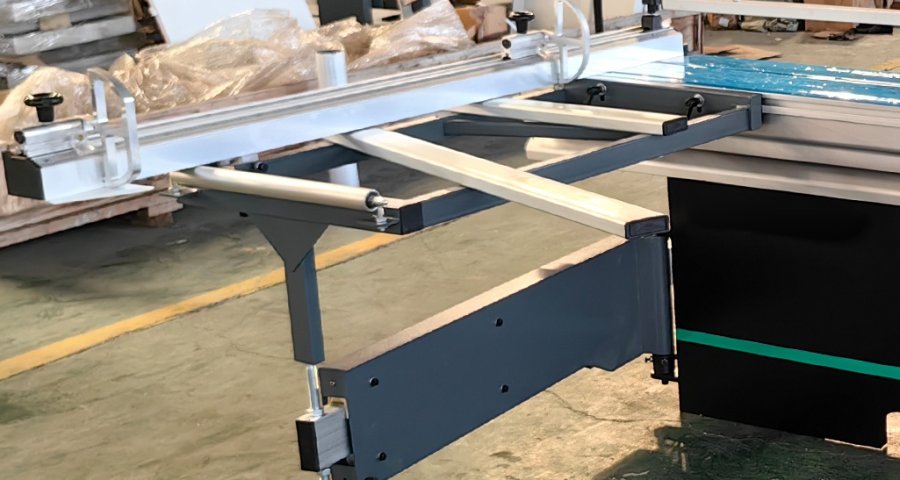

Guiding rule
Standard with large scale, stable without displacement, sawing more accurate.

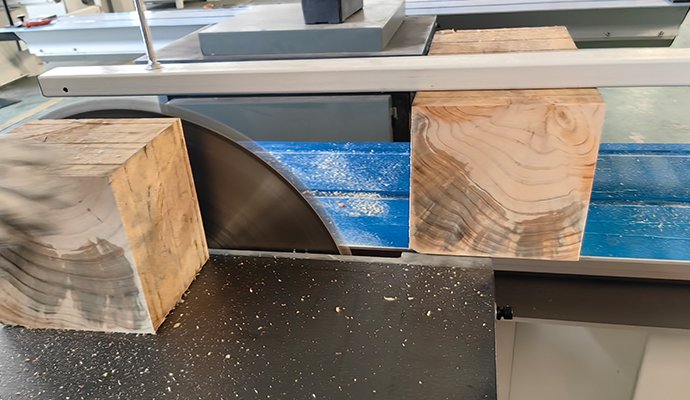

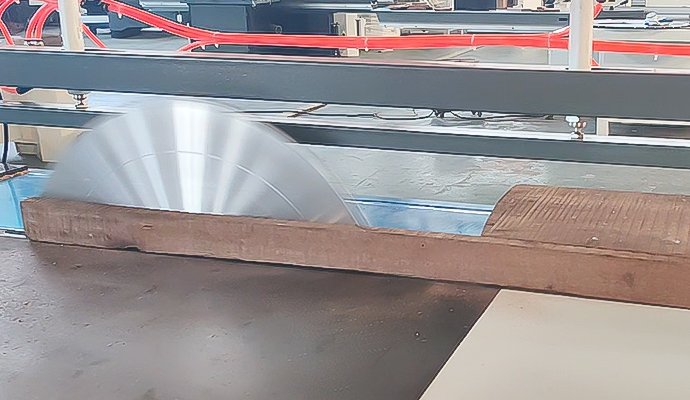

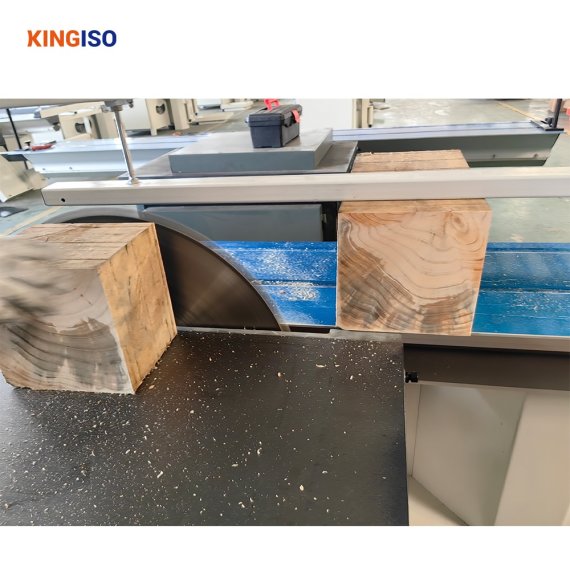

This equipment is very practical for cutting large solid wood, insulation layer, metal pipes, etc.
