1.Safety Protection: Assure with good performance under safety working voltage.
2.Heavy-duty Frame: Cast steel girder, base and front plate, strengthen stability.
3.Speed control: Sanding belt rotational speed and feeding speed, to ensure working perfectly.
4.Easy replaced sanding belt.
1.Safety Protection: Assure with good performance under safety working voltage.
2.Heavy-duty Frame: Cast steel girder, base and front plate, strengthen stability.
3.Speed control: Sanding belt rotational speed and feeding speed, to ensure working perfectly.
4.Easy replaced sanding belt.

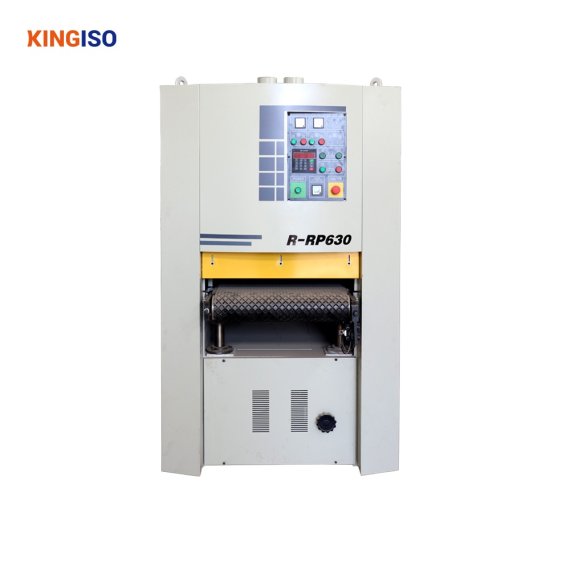

| Model | MSK630R-RP |
| Overall dimensions(mm) | 1780*1150*2000 |
| Plate thickness(mm) | 2-110 (160) |
| Plate width(mm) | 30-630 |
| Plate length(mm) | ≥400 Short material can be customized |
| Feeding speed(m/min) | 5~25 |
| Sanding belt size(mm) | 650*1920 |
| Weight(kg) | ≈1500 |
| Motor power | |
| Front sand（kw) | 15 |
| Rear sand（kw) | 7.5 |
| Conveying（kw) | 1.5 |
| Lifting（kw) | 0.37 |
| Brush（kw) | 0.37 |
| Total power（kw) | 20.74/24.74 |
| Front sand steel roller diameter | 190 |
| Rear sand rubber roller diameter | 190 |
| Axle head diameter(mm) | 35 |
| Conveyor belt(mm) | 2820*630 |

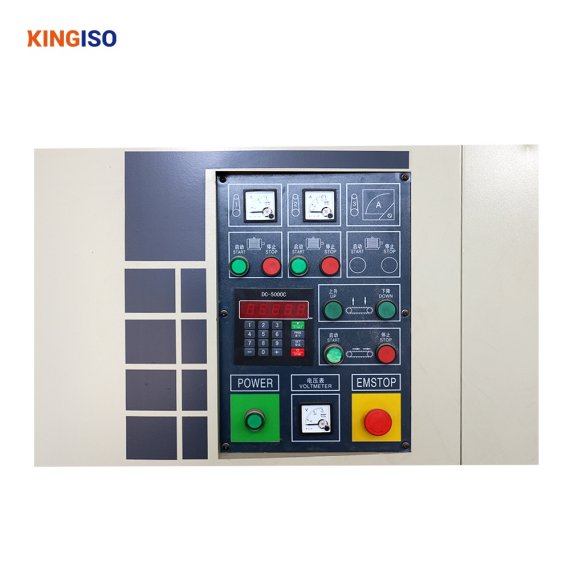

PLC control system
With automatic numerical control system and multi touch screen, the interface is limpid

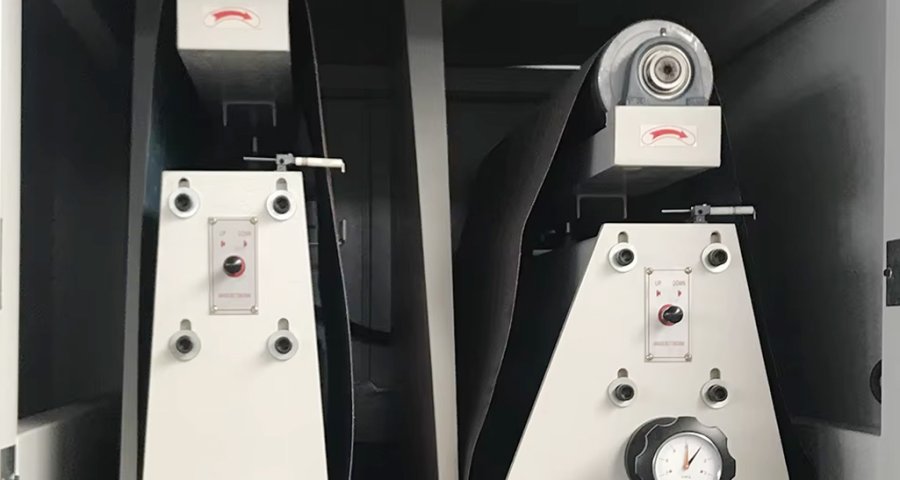

R-RP structure
R-RP structure effcient sanding.

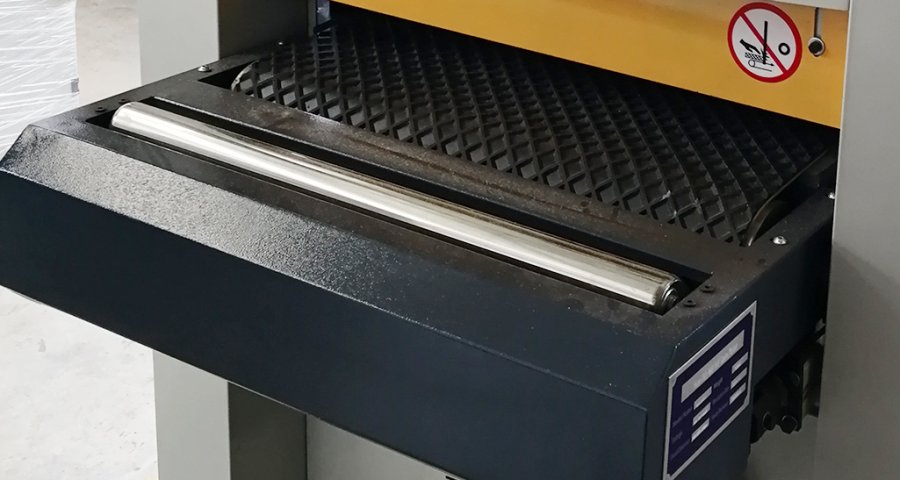

Work table
The height of the table can be adjusted actomatically to macth the work.

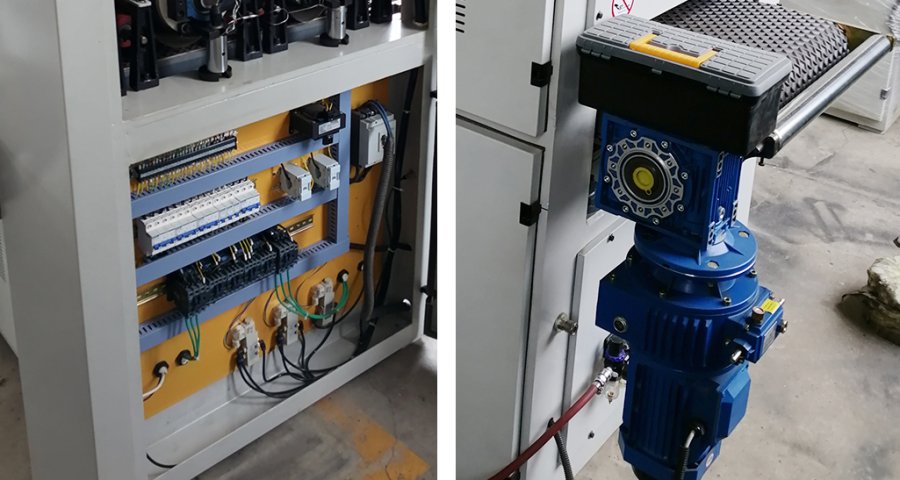

Stable performance
Well-known electronic components can be used for a long time.

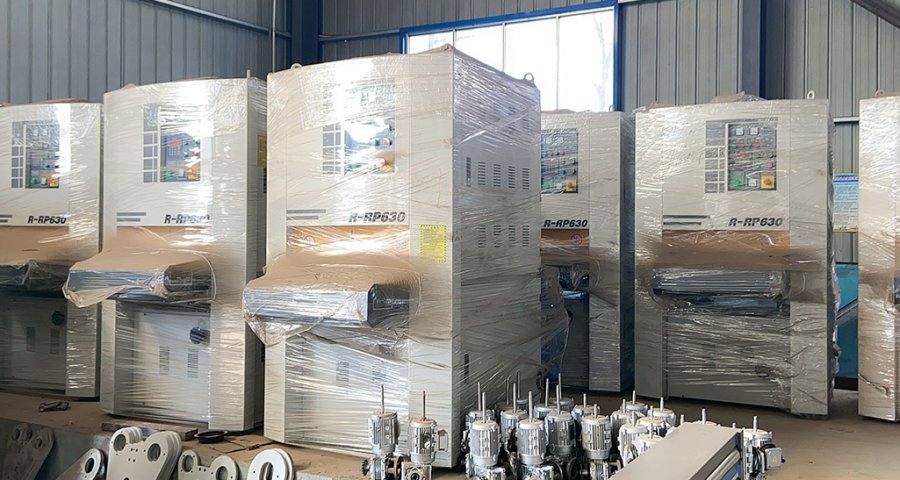

Machine body
Cast steel girder, base and front plate, strengthen stability.

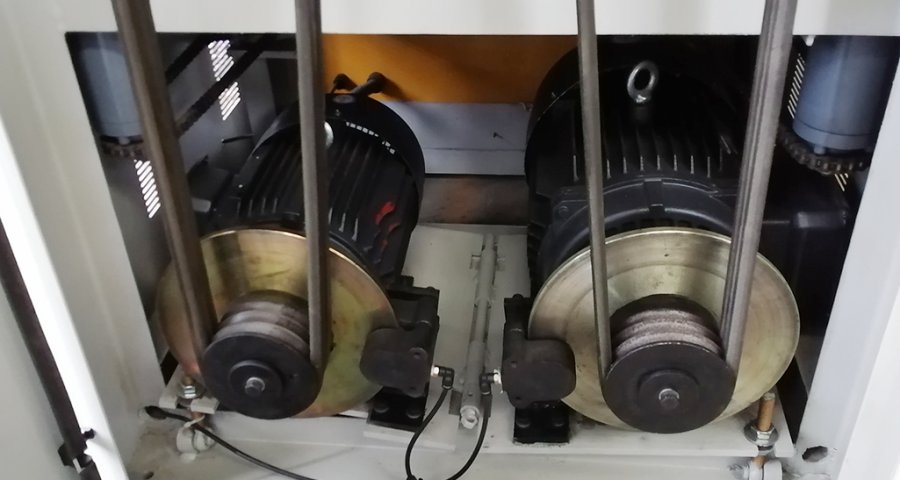

Speed control
Sanding belt rotational speed and feeding speed, to ensure working perfectly.
Applicable to the panel furniture, cabinets, flat door plate, decorative plate, fiber board and other flat plate paint (UV, PU, PE, NC) after curing for primer sanding and polishing surface line.
